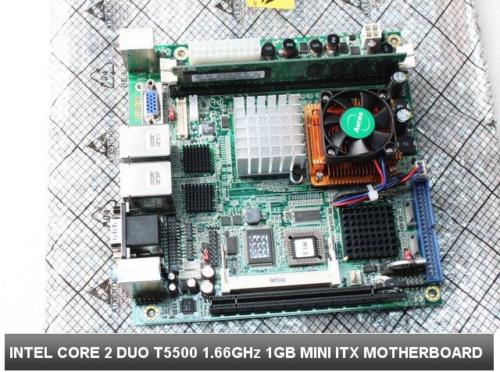

ITX-i9453 (ITX-i9453VL2G) IndustrialMini-ITX MotherboardwithIntel CORE-2 Duo 1.66Ghz Dual Core CPU , FAN and Heatsink +1GB DDR2 Memory
Ready to use out of the box, CPU and Memory fitted
PCI-Express x16 Slot, 2 X SATA 300/150 2x Intel 10/100/1000 Mbps GigE Ethernet ,8 X USB 2.0 , 2 X Serial (1 x RS-232/422/485 selectable port)and tons of expansion inclusing a 44 Pin IDE (for 2.5" Drives) IDE , Mini-PCI,Compact Flash Socket, IrDA,PS/2 Ports Multiple Display on LVDS (LCD) Compatible :- Intel® Socket M Core™ Duo/Core™ 2 Duo/Celeron® M Processor Size: 170 x 170 mm (6.7" x 6.7") FEATURES :-Part# : ITX-i9453VL2G, ITX-i9453VL, ITX-i9453VL-2G,ITX-i9453
• Support Intel® Socket M Mobile Processors
• Support Analog RGB, and Dual Channels 18-bit LVDS (Dual Channels 24-bit LVDS Optional)
• Dual Gigabit Ethernet
• Multi-expansion (2 x SATA Ports, 8 x USB 2.0 Ports, 2 x Serial Ports, PCIe x16)
• Extended Operating Temp.: -20 ~ 70°C
Specifications
System
CPU Intel® Socket M Core™ Duo/Core™ 2 Duo/Celeron® M
Processor up to 667MHz FSB
Memory 2 x 240-pin dual channels DDR2 DIMM Sockets up to 4GB
at 400/533/667MHz
Chipset Intel® 945GME + ICH7M
BIOS Phoenix-Award PnP Flash BIOS
Storage 1 x Ultra ATA 100 port
2 x Serial ATA ports with 150MB/s HDD transfer rate
Flash Disk 1 x CompactFlash Type II Socket
Watchdog Timer 1~255 levels reset
I/O
Serial Port 1 x RS-232 port
1 x RS-232/422/485 selectable port
Parallel Port SPP/EPP/ECP mode
Floppy 1 x Floppy disk port (shared with LPT port)
IrDA 1 x SIR IrDA 1.1 compliant
USB Port 8 x USB 2.0 ports
KB/MS 1 x PS/2 interface for Keyboard and Mouse
Digital I/O 8-bit programmable Digital Input/Output, 4 in/4 out
Expansion Bus 1 x PCIe x16 slot
1 x Mini PCI socket
Ethernet
Chipset 2 x Intel® 82573V PCIe Gigabit Ethernet controllers
Audio
CODEC/Interface Realtek ALC655 AC97 6 Channel Audio Codec, Chipset Integrated with Intel® Graphics Media Accelerator
(GMA950) or expand via PCIe x16 lanes
Graphics Interface Analog RGB support up to 2048 x 1536
LCD support Dual Channel 18-bit LVDS up to 1280 x 800
(Dual Channels 24-bit LVDS optional)
886LCD-M/mITX
Mechanical & Environmental
Power Requirement 20-pin+ 4-pin ATX connector
Operating Temp. -20 ~ 70°C (-4 ~ 158°F)
Operating Humidity 0 ~ 95% (non-condensing)
Dimensions (L x W) 170 x 170 mm (6.7" x 6.7")
(NOTE VGA Port is Mounted at Right Angle Inside - See picture below)
CF SLOT On the Bottom Side
TERMS :-Brand NEW Kit, and Tested Thoroughly
Included -
