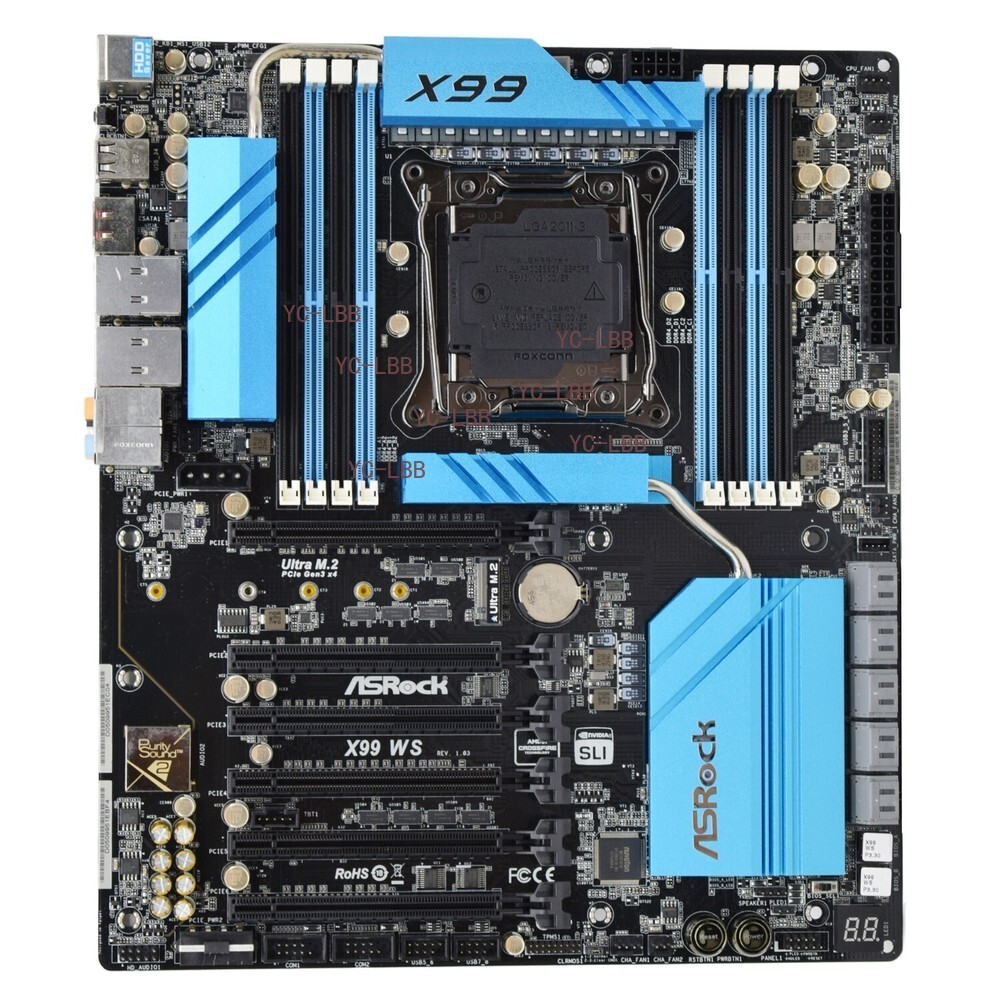

Intel X99 Motherboard ASRock X99 WS LGA2011-3 DDR4 for Xeon E5-1600/2600 v3+I/O
Note: The models of ASRock brand Intel chipsets sold in the store are: Intel H110/Intel J3710/Intel X99/Intel Z97/Intel D1520/Intel B85/Intel J3160/Intel J2900/Intel J1900/Intel Z87/Intel H170/Intel Z390/Intel Z170/Intel Z270/Intel B150/Intel Z370/Intel H61/Intel H77/Intel H97/Intel B75/Intel H81/Intel B365/Intel N3050/Intel J3455/Intel J4205/Intel X299/Intel B360/Intel H67/Intel H270/Intel C232/Intel Z590/Intel J4005/Intel N3150/Intel H310/Intel B560/Intel H570/Intel B460/Intel H410/Intel Z490/Intel H470/Intel J4105/Intel H510/Intel G41/Intel B660/Intel J1800/Intel H370/Intel W480/Intel 1900/Intel J3060. All kinds of mid-range, high-end and low-end motherboards and server motherboards are sold, and the models are constantly being updated. Some models are in large stock, and everyone is welcome to buy. If you need a large quantity, please contact customer service for a discount.
Compatible Model:
ASRock X99 WS Features: - Original quality not include retail box or parts. - 100% tested working before shipping. - updated the newest BIOS. - Without CMOS battery for safe sending. - Please check and confirm the model of your device before purchase. - We provide 90 days warranty, the buyer pays the postage of the returned package.
Platform EATX Form Factor 2oz Copper PCB High Density Glass Fabric PCB
CPU Supports Intel CoreTM i7 and Xeon E5-1600/2600 v3 Processor Family for the LGA 2011-3 Socket, up to 18 Cores and 160W Digi Power design 12 Power Phase design Supports Intel Turbo Boost 2.0 Technology Supports Untied Overclocking Technology
Chipset Intel X99
Memory Quad Channel DDR4 Memory Technology 8 x DDR4 DIMM Slots Supports DDR4 3000+(OC)*/2933+(OC)/2800(OC)/2400 (OC)/2133/1866/1600/1333/1066 non-ECC, un-bufered memory Supports non-ECC RDIMM (Registered DIMM) Supports DDR4 ECC, un-bufered memory/RDIMM with Intel Xeon processors E5 series in the LGA 2011-3 Socket Max. capacity of system memory: 128GB (see CAUTION) Supports Intel Extreme Memory Proile (XMP) 2.0 15μ Gold Contact in DIMM Slots
Expansion Slot 5 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/ PCIE6: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE4); triple at x8 (PCIE1) / x8 (PCIE2) / x16 (PCIE4); quad at x8 (PCIE1) / x8 (PCIE2) / x8 (PCIE4) / x8 (PCIE6)) * If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE4 will run at x16/x0/x4/x8 or x8/x8/x4/x8, and PCIE6 will be disabled. * If M.2 PCI Express module is installed, PCIE3 slot will be disabled. 1 x PCI Express 2.0 x16 slot (PCIE5: x4 mode) Supports AMD Quad CrossFireXTM, 4-Way CrossFireXTM ,3-Way CrossFireXTM and CrossFireXTM Supports NVIDIA Quad SLITM, 4-Way SLITM, 3-Way SLITM and SLITM * If you install CPU with 28 lanes, 4-Way CrossFireXTM and 4-Way SLITM are not supported. 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)
Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection (ASRock Full Spike Protection) Supports Purity SoundTM 2 - Nichicon Fine Gold Series Audio Caps - 115dB SNR DAC with Diferential Ampliier - TI NE5532 Premium Headset Ampliier (Supports up to 600 Ohms headsets) - Direct Drive Technology - EMI Shielding Cover - PCB Isolate Shielding Supports DTS Connect LAN 1 x Intel I217LM (Gigabit LAN PHY 10/100/1000 Mb/s) 1 x Intel I210AT (Gigabit LAN 10/100/1000 Mb/s) Supports Wake-On-LAN Supports Lightning/ESD Protection (ASRock Full Spike Protection) Supports Dual LAN with Teaming Supports Energy Eicient Ethernet 802.3az Supports PXE
Rear Panel I/O 1 x PS/2 Mouse/Keyboard Port 1 x Optical SPDIF Out Port 1 x eSATA Connector 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) 1 x Clear CMOS Switch HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Storage 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology (S_SATA3_3 connector is shared with the eSATA port) (S_SATA3_2 connector is shared with Ultra M.2 Socket) * RAID is supported on SATA3_0 ~ SATA3_5 ports only. 1 x eSATA Connector, supports NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Connector 2 x COM Port Headers 1 x TPM Header 1 x Power LED Header 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control) 1 x Power Fan Connector (3-pin) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x HDD Saver Connector 2 x PCIe Power Connectors 1 x Front Panel Audio Connector 1 x hunderbolt AIC Connector 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Dr. Debug with LED 1 x Power Switch with LED 1 x Reset Switch with LED 1 x BIOS Selection Switch
BIOS Feature 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) Supports Secure Backup UEFI Technology ACPI 1.1 Compliant wake up events SMBIOS 2.3.1 Support CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multiadjustment
Hardware Monitor CPU/Chassis temperature sensing CPU/Chassis/Power Fan Tachometer CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) CPU/Chassis Fan multi-speed control Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages
OS Microsot Windows 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Server 2012 R2 64-bit / Server 2012 64-bit / Server 2008 R2 64-bit Wehavealargeamountofstock, and manyproducts have not been released yet. You can give us your hairstyle number andwecanhelpyou find them. If you need more, please contact us to get abetter price. We will reply your message in 24hours during
