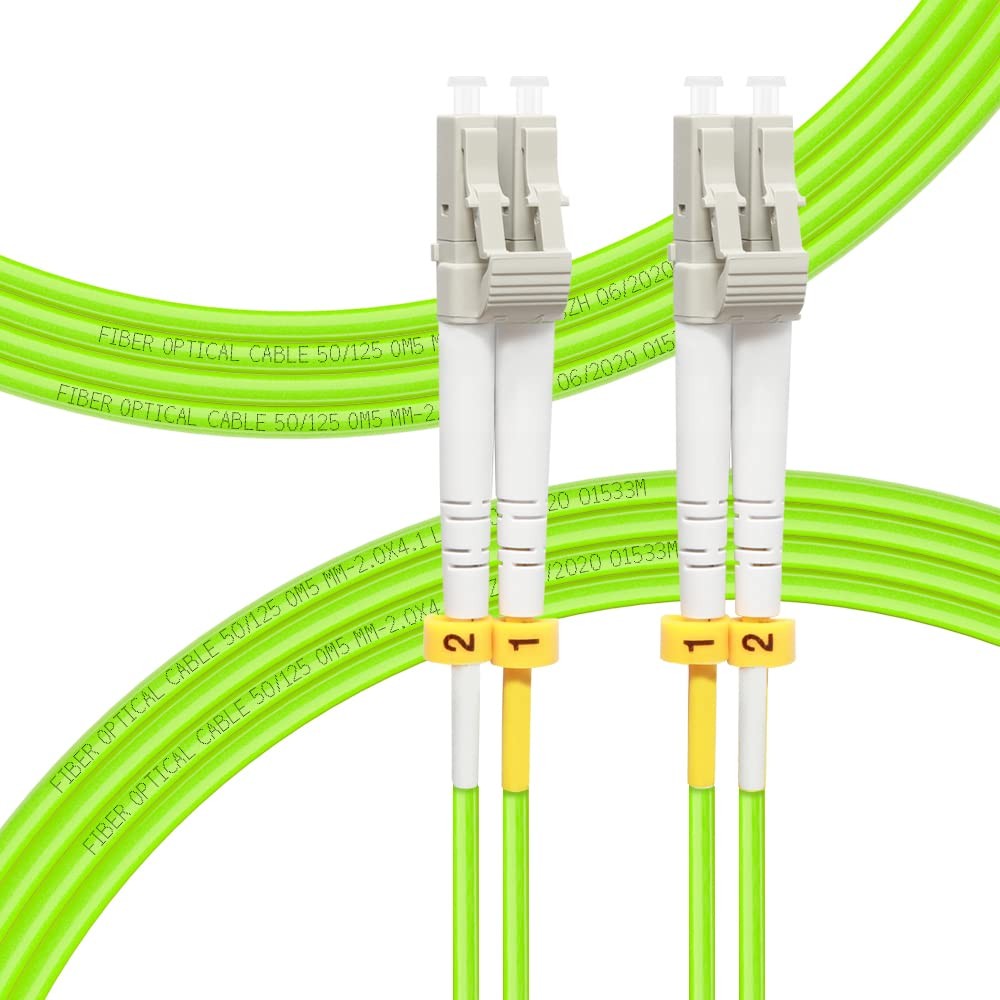

- LC to LC Fiber Patch Cable OM5 Multimode 5M/16ft

• 📡5M(16ft), OM5 LC-LC Fiber Optic Patch Cable Multimode 40/100Gb is designed for the future 200/400 Gigabit networks with a full backwards compatibility with the existing 10/40/100 Gigabit Ethernet networks. OM5 fiber patch cables extend the maximum transmission distance, and with the new SWDM, OM5 WBMMF can operate between 850 and 953nm wavelength to support multiple wavelengths over a single fiber channel, achieving increased bandwidth through reduced fiber counts.
• 📡Maximum Transmission Distance - 40Gb Ethernet Distance of 440Meters at 850nm; 100Gb Ethernet Distance of 300Meters at 850nm. Bandwidth is 4700~6000MHz.km @850nm. The OM5 fiber cord maintains 100% backwards compatibility with the 850nm wavelength used by OM3/OM4. As your network upgrades to faster 100/400Gb speeds, this robust cable won't need to be replaced.
• 📡7.5mm Minimum Bend Radius - High Rated 50/125um Fiber and Cladding, which is Insensitive to bending, easy peeling, easy welding, ensures small optical loss and stable transmission (insertion loss≤0.3dB, return loss ≥30dB.), Ideal for SAN network cabinets that require 20 or more bends in the cabinet or high-density installations with cables crammed into an extremely small footprint.
• 📡Construction Design - LSZH environmentally friendly Jacket; Adjustable connector clips allow individual fiber access; Embossed A/B position labels on the duplex clip and jacket tag rings labeled 1 & 2 provide quick identification of Tx and Rx when installing, testing, and troubleshooting equipment connections; UPC polish and Japan made zirconia ceramic ferrules with high return loss, low insertion loss, and low attenuation features, provide precise alignment to ensure the signal integrity.
• has been focusing on fiber optics for 15 years. Each cable is tested in the factory to meet quality control and insertion loss requirements, providing customers with high-quality products. We also have a professional team. If you have any questions, please promptly.

Product Name:
OM5 LC-LC Fiber Optic Patch Cable 5M(16FT) 40/100Gb Multimode Fiber Optic Cord (MMF) 50/125um LSZH Duplex UPC 2.0mm Lime Green

Size: 5M(16FT) (included Connector)
Manufacturer:

CABLE SPECIFICATIONS:
Fiber Core: High Rated 50/125um Fiber and Cladding
Ferrule Material: Ceramic
Connectors: Duplex LC-LC
Polish Type: UPC to UPC
Fiber Type: OM5(Laser-optimized) Multimode
Cable Jacket: LSZH
Cable Diameter: 2.0mm
Cable Color: Lime Green
Minimum Bend Radius: 7.5mm
Operating Temperature: -20~70°C

Wavelength: 850nm and 1300nm
40G Ethernet Max Distance: 440Meters at 850nm
100G Ethernet Max Distance: 300Meters at 850nm
Bandwidth: 4700~6000MHz.km @850nm

Insertion Loss: ≤0.3dB
Return Loss: ≥30dB

Attenuation at 850nm: 3.0 dB/km
Attenuation at 1300nm : 1.0 dB/km

ADVANTAGES
Strong scalability: OM5 fiber patch cords can combine shortwave wavelength division multiplexing (SWDM) and parallel transmission technology in the future, and only need 8-core wideband multimode fiber (WBMMF) to support 200/400G Ethernet application;

Reduce cost: OM5 fiber jumper draws on the wavelength division multiplexing (WDM) technology of single-mode fiber, extends the usable wavelength range during network transmission, and can support 4 wavelengths on 1-core multi-mode fiber. The number is reduced to 1/4 of the previous one, which greatly reduces the cost of network wiring;

Strong compatibility and interoperability: OM5 fiber patch cords can support traditional applications like OM3 fiber patch cords and OM4 fiber patch cords, and it is fully compatible with OM3 and OM4 fiber patch cords and has extremely strong interoperability.
