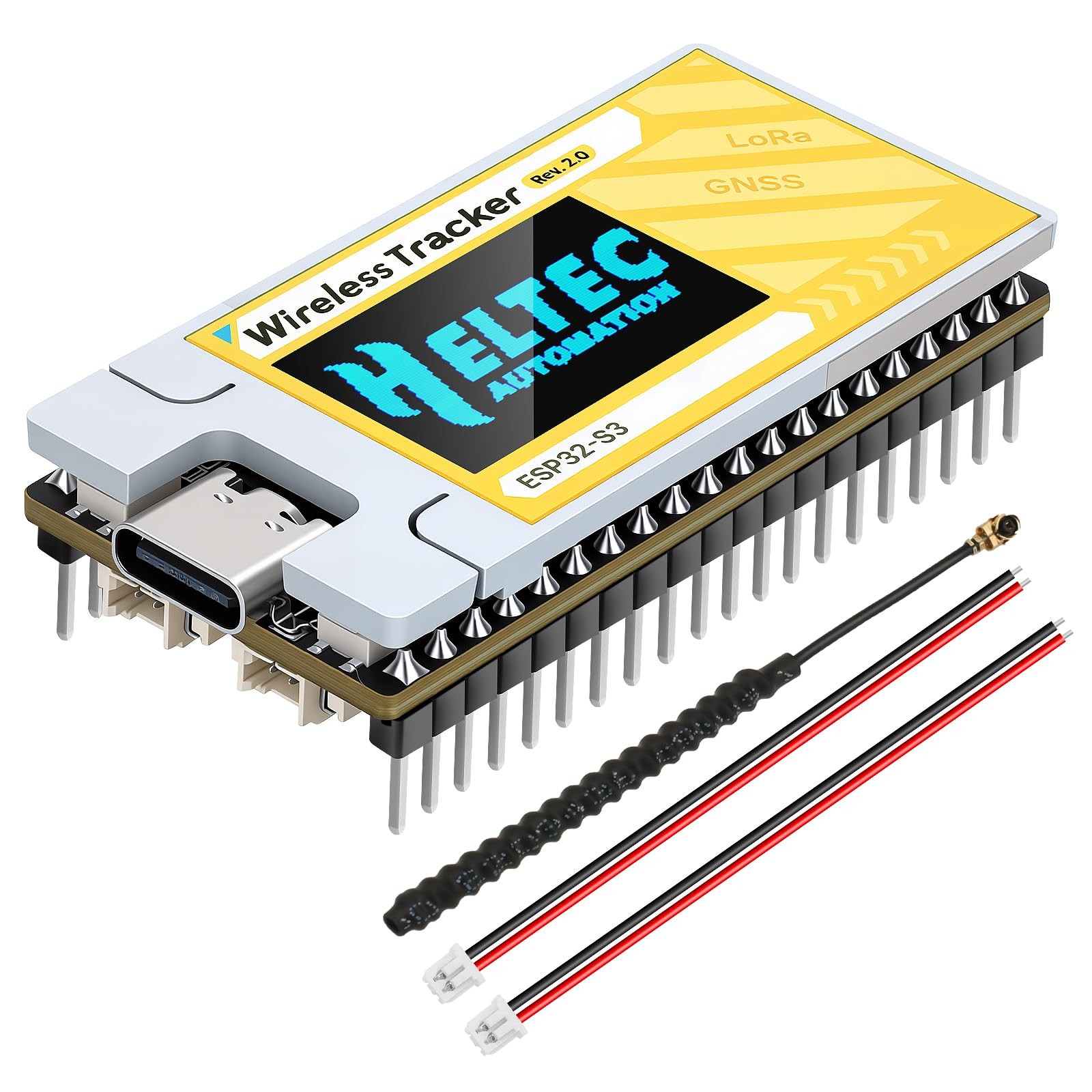

Meshtastic LoRa GPS Tracker ESP32-S3 Wireless Tracker V2 Development Board🛍 Product Details

Professional LoRa & GNSS Tracking Solution - Wireless Tracker Rev 2.0

Unleash the power of long-range tracking and off-grid communication with Wireless Tracker V2.0. Engineered for the modern IoT developer and outdoor enthusiast, this compact board combines the versatility of the ESP32-S3 with the long-distance capabilities of LoRa and high-precision GNSS positioning.

Why Choose the Rev 2.0?

The Wireless Tracker V2.0 is more than just a GPS module. It is a complete development ecosystem. With its integrated SX1262 transceiver, it delivers exceptional receiving sensitivity (-134dBm) and high transmission power, making it perfect for Meshtastic users who need reliable communication where cell towers don't reach.

Key Technical Specifications:

MCU: ESP32-S3FN8

LoRa: Semtech SX1262 (Supports 863~928MHz)

GNSS: UC6580 (GPS, GLONASS, BDS, Galileo, etc.)

Display: 0.96" OLED (128x64)

Antenna: Onboard LDS Antennas (GNSS/2.4GHz) + IPEX for LoRa

Power: Type-C USB, Solar, and 3.7V Lithium Battery Support

Versatile Applications:

Whether you are building a bicycle-sharing service, monitoring industrial assets, tracking livestock in rural areas, or staying connected during a hiking trip via a Mesh network, the Wireless Tracker provides the hardware stability and software flexibility you need.

🌟 Key Features

• [Advanced V2.0 Upgrades] - The Rev 2.0 features the powerful ESP32-S3FN8 dual-core processor and integrates the SX1262 LoRa chip and UC6580 GNSS chip. Experience superior connectivity with the Wireless Tracker V2. Upgraded to a maximum transmission power of 28±1dBm, it significantly extends communication range and signal penetration compared to standard LoRa nodes, ensuring reliable data transmission in complex environments and stronger signal
• [Multi-System GNSS Positioning] - Supports L1 + L5/L2 dual-band positioning, including GPS, GLONASS, BDS, Galileo, NAVIC, QZSS. By supporting dual-frequency signals, it provides faster time-to-first-fix (TTFF) and higher accuracy for asset tracking and outdoor navigation. Ideal for high-precision real-time tracking of vehicles, pets, livestock, or outdoor assets in challenging environments
• [Meshtastic & LoRaWAN Ready] - Perfectly compatiblewith Meshtastic, MeshCore, and LoRaWAN protocols. Easily communicate and share location data without cellular coverage using the 915MHz frequency. Whether you are building a decentralized communication network or an IoT tracking project, our comprehensive Arduino development framework and examples make deployment seamless for developers
• [Integrated Power Management] - Designed for off-grid endurance, it features a universal Type-C USB interface, solar panel charging support, and lithium battery management, with an integrated system handling charging, overcharge protection, and automatic power switching between USB and battery for versatile power options
• [Conpact LDS Antenna Design] - Utilizing innovative LDS antennas for both GNSS and 2.4G, the V2 significantly reduces device footprint without sacrificing performance. Equipped with a 0.96-inch OLED/LCD display, it real-time shows system status, coordinates, messages, as well as supports real-time debugging and battery monitoring for intuitive and convenient operation
