Product Description

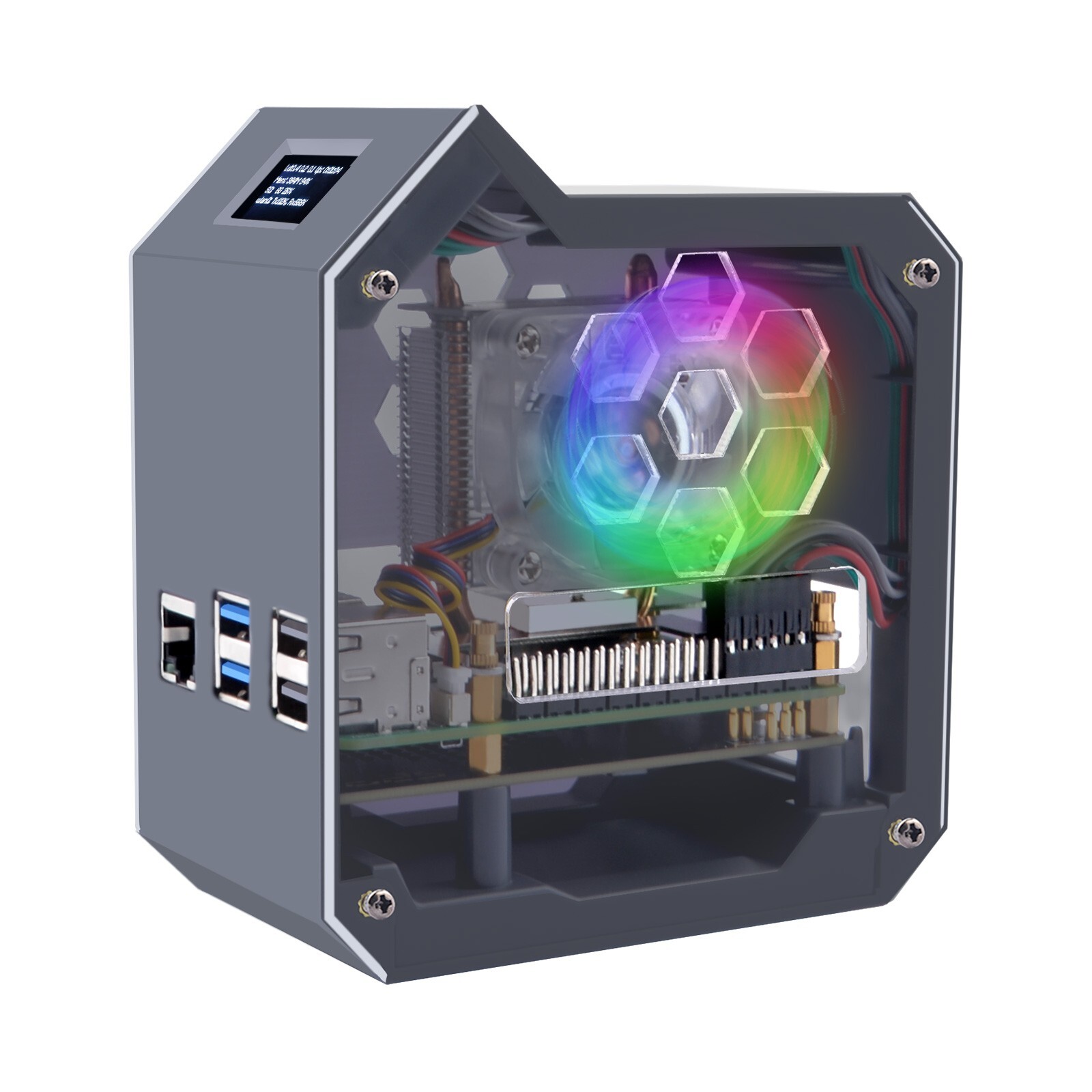

The Raspberry Pi 5 Minitower case is a specially designed enclosure for the Raspberry Pi 5, offering a sleek and compact housing solution. It features an integrated low-profile Ice Tower for efficient cooling and an N07 M.2 NVMe SSD M-key expansion board, which accommodates a variety of SSD sizes including 2230, 2242, 2260, and 2280. This expansion board connects to the Raspberry Pi 5 via the PCIe interface, supporting PCIe x1, and is designed to work seamlessly with the official Raspberry Pi OS once the PCIe is enabled for disk access.

Product Features

• Custom-fit Minitower case for Raspberry Pi 5

• Low-profile Ice Tower for enhanced cooling performance

• N07 M.2 NVMe SSD M-key expansion board

• Supports M.2 NVMe SSD sizes: 2230, 2242, 2260, 2280

• PCIe interface connection for SSD expansion

• Compatibility with official Raspberry Pi OS and PCIe configuration

• Bootable from the connected PCIe disk for faster startup

• Integrated SSD1306-driven OLED display with a resolution of 128x64 pixels

• Python library and code support for custom display configurations

• Real-time system monitoring of load, memory, disk space, and network align="start" style="box-sizing: border-box; -webkit-tap-highlight-color: transparent; outline: 0px; list-style-position: initial; list-style-image: initial; margin-block-start: 1em; font-size: 14px; font-weight: 400; font-family: sans-serif; color: rgb(32, 33, 34); background-color: rgb(255, 255, 255); margin: 0.3em 0px 0px 1.6em; padding: 0px;">

• Case Design:Minitower form factor, tailored for Raspberry Pi 5

• Cooling Solution:Integrated low-profile Ice Tower for optimal thermal management

• SSD Support:M.2 NVMe SSD with M-key, compatible with 2230, 2242, 2260, 2280 sizes

• Interface:PCIe x1 for SSD expansion board connection

• Operating System:Requires official Raspberry Pi OS with PCIe disk access configuration

• Boot Capability:System can boot from the PCIe-connected disk

• Display:OLED screen with 128x64 pixel resolution, driven by SSD1306

• Programming:Requires Python library and custom Python code for display functionality

• Monitoring Capabilities:Displays current system load, memory usage, disk capacity, and network status

• Customization:Users can modify Python scripts to display additional information as desired

Package Includes

NOTE: Not include Raspberry Pi board
