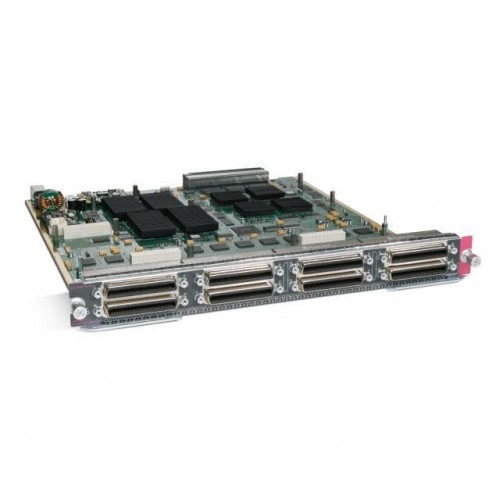

NEW Cisco WS-X6196-RJ-21 6500/7600 Ethernet Module/Cat650096-Port, PoE 802.3afP/N: WS-X6196-RJ-21
NEWIn Sealed Original PackagingIncluded

• 1 xNEW Cisco WS-X6196-RJ-21 6500/7600 Ethernet Module/Cat6500 96-Port, PoE 802.3af

OverviewDesigned for deployment in wiring closets, high-density Cisco Catalyst 6500 Series Classic 10/100 and 10/100/1000 interface modules provide line-rate 10/100 Ethernet forwarding and gigabit bandwidth to the desktop capabilities. These interface modules feature PoE field-installable daughter cards for pay-as-you-grow investment protection and flexibility.
The 96-port 10/100 module (part number WS-X6196-21AF) is the industry's first 96-port 10/100 RJ-21 module with IEEE 802.3af support for all 96 ports, helping enable the Cisco Catalyst 6500 Series to deliver the industry's highest port densities ranging from 192 10/100 ports in a Cisco Catalyst 6503 chassis to 1152 10/100 ports in a Cisco Catalyst 6513 chassis for a very cost-effective solution in the wiring closet.The WS-X6196-RJ-21 module doubles the port density in the system in the same footprint, using the stacked standard RJ-21 connectors. Port-density improvement can be achieved with no incremental investment in the cable infrastructure. With the 802.3af PoE daughter card, this module can support up to 96 Class 2 devices or 62 Class 3 devices per module (960W of PoE per module).
The 96-port 10/100 module (part number WS-X6148X2-RJ-45) is the industry's first 96-port 10/100 RJ-45 module that helps enable the Cisco Catalyst 6500 Series to deliver industry's highest port densities, ranging from 192 10/100 ports in a Cisco Catalyst 6503 chassis to 1152 10/100 ports in a Cisco Catalyst 6513 chassis for a very cost-effective solution in the wiring closet.
The 96-port 10/100 module (part number WS-X6148X2-RJ-45) doubles the port density in the system by allowing it to expand from 48 ports to 96 ports per slot with the addition of a splitter (included), typically mounted at the patch panel. The splitting also can occur at the wall jack, providing another option for doubling the port density of the switch without costly rewiring. This module also can function as a regular 48-port 10/100 module for maximum flexibility and scalability in the future. With the 802.3af PoE daughter card, this module can support up to 48 Class 3 devices per module when operating as a 48-port module, or up to 96 Class 2 devices per module when operating as a 96-port module (960W of PoE per module).Using RJ-21 or RJ-45 connectors, the Cisco Catalyst 6500 Series classic 10/100 and 10/100/1000 modules are ready to be deployed in virtually all wiring-closet environments th the following operational advantages and characteristics:

• Forwarding architecture-These modules provide centralized Cisco Express Forwarding.
• Forwarding performance-These modules forward packets up to 15 Mpps per system.
• Fabric connection-These modules provide a 32-Gbps shared bus connection.
• Supervisor engine-These modules work with Supervisor Engine 1A, Supervisor Engine 2, Supervisor 32, or Supervisor Engine 720.
• Distributed forwarding upgrade-No upgrade is available; classic interface modules cannot be upgraded for distributed forwarding.
• Slot requirements-These modules can occupy any slot in any Cisco Catalyst 6500 Series chassis.
• Maximum port density per chassis-These modules support up to 1152 10/100 ports or 576 10/100/1000 ports in the Cisco Catalyst 6513 chassis; up to 768 10/100 ports or 384 10/100/1000 ports in the Cisco Catalyst 6509 chassis; up to 480 10/100 ports or 240 10/100/1000 ports in the Cisco Catalyst 6506 chassis; and up to 192 10/100 ports or 96 10/100/1000 ports in the small-form-factor Cisco Catalyst 6503 chassis.
• Field-installable and -upgradable inline-power daughter cards-These modules help enable centralized power distribution to IP phones, wireless access points, and other devices by sharing the same Category 5 UTP cabling used for network Application: Wiring closet
• Ports, Connector, Maximum Distance, and Cable Type: 96, RJ-21,100m, Category 5 cable
• PoE: Field -upgradable to Cisco Prestandard and IEEE 802.3af
• PoE+: No
• Maximum Frame Size jumbo frame Support: Up to 9216 bytes per frame
• Queues per Port (Tx = Transmit,Rx =: Tx-1p3q1t
• Receive: Rx-1p1q0t
• Buffer Size/Port: 1.2 MB
