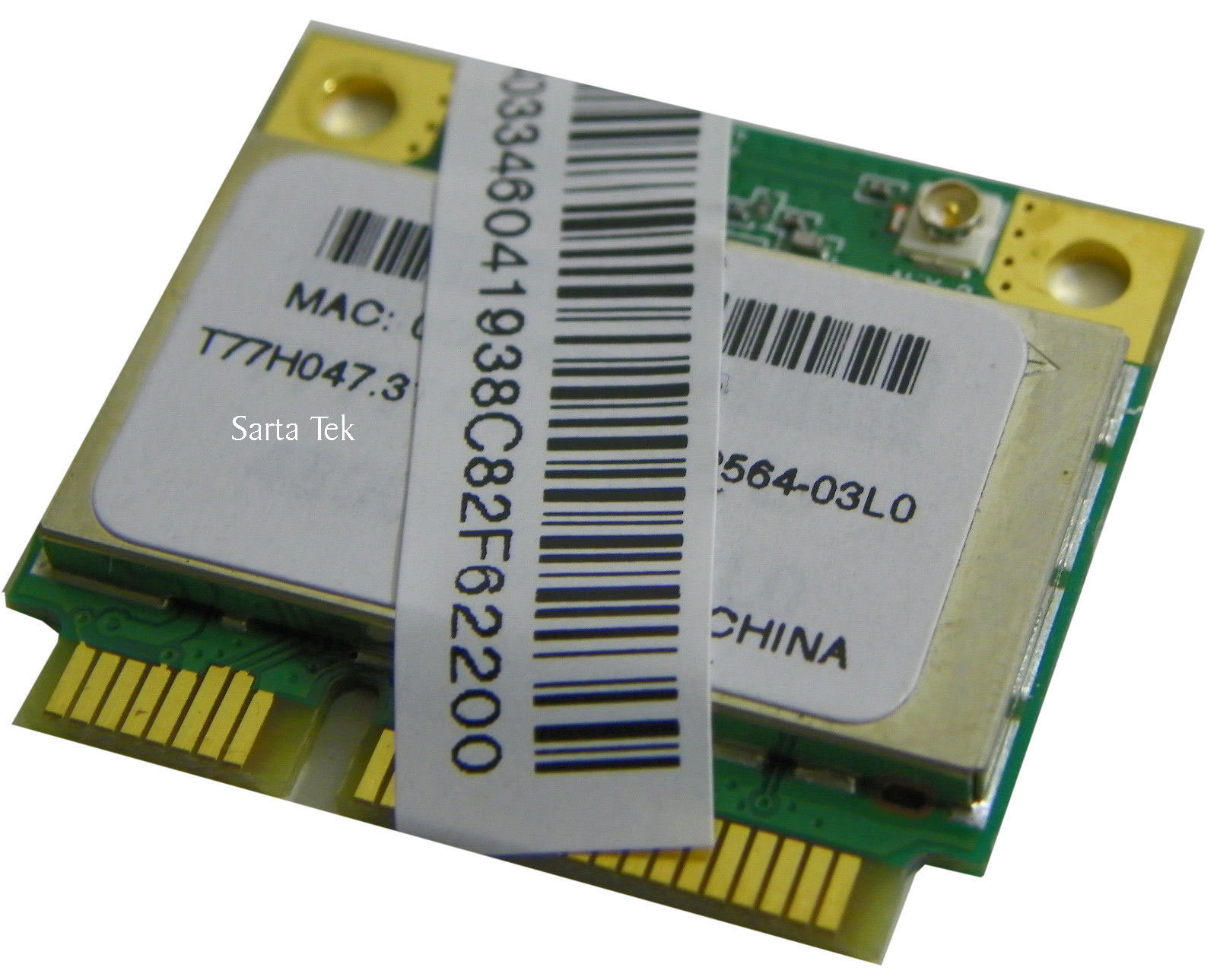

New Atheros AR5B93 802.11b/g/n Wireless LAN PCIe Minicard NI.23600.062 / HB93 300Mbp
T77H047.31
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n draft 2.0Atheros AR5B93
Chip 1: Atheros AR9283 Description:Single-chip, single-band (2.4GHz) for PCIe in XSPAN's third generation of products, integrated and compact 802.11n solution for singleband PCIe on the market, featuring a half-Mini Card form factor that is 30% smaller than the nearest competitive 11n. It offers the optimal balance of performance and power with its single-band, 1x2 MIMO configuration which features downshift to 1x1 MIMO with Dynamic MIMO Power Save.NOTE: Not for IBM Lenovo ThinkPad and some HP models (Firmware Required).Features: * Single-chip, 802.11n draft compliant wireless LAN client solution with integrated MAC, baseband and 2.4 GHz radios
* Based on third-generation 802.11n draft compliant technology
* Support for 1x2 MIMO
* Conserves power with 1x1 downshift using Dynamic MIMO Power Save
* Enables PHY rate of up to 300 Mbps on downlink
* Compliant with IEEE 802.11b, 802.11g, 802.11d, 802.11e, 802.11i, and draft 802.11n
* Lead-free RoHS compliant
Specifications:Compact Half-Mini Card form factor.
Frequency Band 2.4 GHz
Network Standard 802.11b, 802.11g, 802.11n
Modulation Technology OFDM with BPSK, QPSK, 16 QAM,
64 QAM; DBPSK, DQPSK, CCK
FEC Coding Rate 1/2, 2/3, 3/4, 5/6
Hardware Encryption AES, TKIP, WEP
Quality of Service 802.11e
Communication Interface PCI-Express
Peripheral Interface GPIOs, LEDs
Memory Interface EEPROM
Supported Data Rates
IEEE 802.11b 1 - 11 Mbps
IEEE 802.11g 6 - 54 Mbps
IEEE 802.11n 6.5 - 300 Latitude E4200/E4300/ E5400 /E5500 /E6400 / E6500 Notebook Compatible computers:
Latitude 2100
Latitude E4200
Latitude E4300
Latitude E5400
Latitude E5500
Latitude E6400
Latitude E6400 ATG
Latitude E6400 XFR
Latitude E6500
Latitude XT2
Latitude XT2_XFR
Dell Precision Mobile WorkStation M2400
Dell Precision Mobile WorkStation M4400
Dell Precision Mobile WorkStation M6400
Dell Precision Mobile WorkStation M6500
Dell PRECISION M2400/M4400/ M6400 Notebook
DELL Studio 1535/ 1536 / 1537 /1735 Notebook
Dell Studio 15/17 Notebook
Dell Vostro 1310 /1710 /2510 NotebookGateway advertises:
Gateway EC34Acer
Additional information:
Compatible part numbers :
Foxconn T77H047.31
Quanta Microsystems EM306
Unex DNXA-93 Included: Card only , drivers available at HP,Dell,Toshiba,and atheros web sites.Product Requirements:
Available Half size Mini PCI Express slot
Condition: New Pull Bulk Packing
