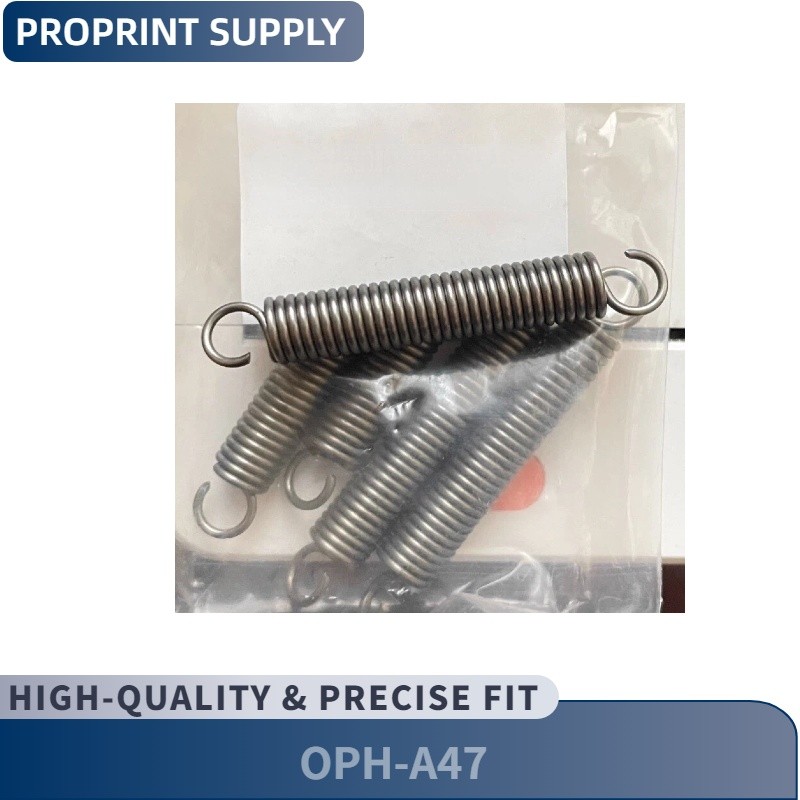

New Original Graphtec OPH-A47 Pinch Roller Spring | FC9000 CE7000-130/130AP | 5PCS 🛠️ OPH-A47 PINCH ROLLER SPRING | NEW ORIGINAL | 5PCS PACK | For Graphtec FC9000 CE7000-130/130AP ⚠️ NEW ORIGINAL OPH-A47 SPRING (5PCS): | FITS FC9000/CE7000-130/130AP + PRECISION SPRING FORCE + 500K CYCLE LIFE + 24 MONTHS WARRANTY! New Original Graphtec FC9000 CE7000-130/130AP Pinch Roller Spring - OPH-A47 (5PCS)

The New Original Graphtec OPH-A47 Pinch Roller Spring (5PCS) is an authentic OEM replacement spring specifically engineered for Graphtec FC9000 and CE7000-130/130AP cutting plotters. As a critical component of the pinch roller assembly, this precision spring maintains consistent pressure on the media roller, ensuring optimal grip and smooth, wrinkle-free feeding of vinyl, paper, cardboard and other roll media during cutting operations. Manufactured to Graphtec's strict quality standards with high-grade stainless steel, the OPH-A47 spring delivers precise, consistent spring force (12N ± 0.5N) and exceptional fatigue resistance (500,000 compression cycles). Each pack includes 5 pieces – ideal for both routine maintenance and spare part inventory, eliminating the need for frequent reorders and minimizing plotter downtime.

⚠️ Common Issues with Worn OPH-A47 Springs:

• Reduced spring force: Causes media slippage, misalignment and inaccurate cutting
• Spring fatigue: Results in inconsistent pressure (over/under gripping media)
• Rust/corrosion: Damages pinch roller assembly and increases maintenance costs
• Non-original replacement: Poor fit causes roller jamming and premature wear

✅ Solution: New Original Graphtec OPH-A47 Spring (5PCS) – restores factory-spec pressure, eliminates all these issues!

🔧 Spring Specifications

Model: Graphtec OPH-A47 Pinch Roller Spring (OEM Original)

Material: 304 Stainless Steel (Corrosion-Resistant)

Wire Diameter: 1.2mm | Outer Diameter: 8mm | Free Length: 25mm

Quantity: 5 Pieces (5PCS) per Pack | Condition: Brand New

🔩 Performance & Durability

Spring Force: 12N ± 0.5N (at Compressed Length 15mm)

Fatigue Life: 500,000 Compression Cycles (No Failure)

Corrosion Resistance: 200h Salt Spray Test (ASTM B117)

Operating Temperature: -20°C to +80°C

🔌 Compatible Graphtec Plotter Models (100% FIT)

• Graphtec FC9000 Series (All Configurations)
• Graphtec CE7000-130 Cutting Plotter
• Graphtec CE7000-130AP Cutting Plotter
• Only for Graphtec Pinch Roller Assemblies Requiring OPH-A47 Spring

💡 Note: This is a NEW ORIGINAL Graphtec OPH-A47 spring – direct replacement for OEM springs, no modifications or adjustments required for compatible models!

📊 Original OPH-A47 vs Generic Pinch Roller Spring Comparison Feature Original Graphtec OPH-A47 (5PCS) Generic Pinch Roller Spring Material 304 Stainless Steel (200h Salt Spray) Low-Grade Carbon Steel (Prone to Rust) Spring Force Precision 12N ± 0.5N (Consistent Pressure) 12N ± 2N (Inconsistent Pressure) Fatigue Life 500,000 Cycles (Long Service Life) 50,000 Cycles (Quick Fatigue) Fit Precision 100% OEM Fit (No Jamming) Loose/Tight Fit (Roller Jamming) Pack Quantity 5PCS (Spare Inventory) 1PC (Frequent Reorders) Warranty 24 Months 3 Months 📦 Package Contents of New Original OPH-A47 Spring (5PCS)

• ✔ 5 × New Original Graphtec OPH-A47 Pinch Roller Springs

🛠️ Core Advantages - New Original OPH-A47 Spring (5PCS)

• ✅ NEW ORIGINAL GRAPHTEC OEM QUALITY: Manufactured to Graphtec's strict tolerances – perfect fit for FC9000/CE7000-130/130AP pinch roller assemblies, no jamming or misalignment.
• ✅ 5PCS VALUE PACK: Each pack includes 5 OPH-A47 springs – ideal for routine maintenance (1-2 springs per roller) and spare inventory (minimizes downtime).
• ✅ PRECISION SPRING FORCE (12N ± 0.5N): Maintains consistent pressure on pinch rollers – eliminates media slippage and ensures precise cutting alignment (factory-spec performance).
• ✅ 304 STAINLESS STEEL CONSTRUCTION: 200-hour salt spray resistance – corrosion-free performance in humid workshop environments (no rust or spring degradation).
• ✅ 500K CYCLE FATIGUE LIFE: Exceptional fatigue resistance – 10x longer service life than generic springs, reduces replacement frequency and maintenance costs.
• ✅ EASY 2-MINUTE INSTALLATION: Direct drop-in replacement – no special tools required (included plastic tweezers prevent spring damage during installation).

🔧 Installation Guide for OPH-A47 Pinch Roller Spring (5PCS)

1. Safety Preparation: Power off the Graphtec plotter and unplug power cord – move cutting carriage to access the pinch roller assembly (FC9000/CE7000-130/130AP).
2. Remove Pinch Roller: Use a small flathead screwdriver (or included tool) to carefully remove the pinch roller assembly – place on a clean, flat surface (avoid losing small parts!).
3. Extract Old Spring: Use the included plastic tweezers to remove the worn OPH-A47 spring from the roller housing – do not use metal tools (damages housing).
4. Clean Housing: Wipe the spring housing with lint-free cloth and anti-rust lubricant – remove dust, rust or old lubricant residue (ensures proper fit of new spring).
5. Install New OPH-A47 Spring: Use plastic tweezers to insert the new original OPH-A47 spring into the housing – ensure spring is seated fully (no misalignment).
6. Test Spring Tension: Press the roller gently to verify spring tension (12N ± 0.5N) – refer to calibration guide to confirm factory-spec pressure.
7. Reassemble Roller: Reinstall the pinch roller assembly into the plotter – secure with original screws (hand-tight only, do not over-tighten).
8. Function Test: Power on plotter – feed test media (vinyl/paper) – confirm smooth feeding, no slippage and precise cutting alignment.

📌 Maintenance Tips for OPH-A47 Pinch Roller Spring

• ⚠️ SPRING HANDLING: Always use plastic tweezers (included) to handle OPH-A47 springs – metal tools scratch the spring surface and cause premature rusting.
• ✅ LUBRICATION: Apply a small amount of included anti-rust lubricant to spring coils every 6 months – reduces friction and extends fatigue life (do not over-lubricate).
• ✅ INSPECTION: Check spring tension every 3 months (using calibration guide) – replace if force deviates >0.5N from 12N (prevents media feeding issues).
• ✅ STORAGE: Store spare OPH-A47 springs in included protective case – keep in dry/dust-free environment (15-25°C) (prevents rust during storage).
• ✅ REPLACEMENT INTERVAL: Replace OPH-A47 springs every 2 years (or 500,000 cycles) – proactive replacement prevents unexpected plotter downtime.

🏢 Commercial Bulk Orders (OPH-A47 Spring - 5PCS/Pack)

• Volume discounts available from 10 packs (50 springs) – tiered discounts for 20/50/100+ packs (inquire via message).
• Bulk packaging option: Multiple 5PCS packs in a reinforced carton box (shock-proof, rust-proof) – ideal for plotter repair shops/service centers.
• Custom Labeling: Laser engraving of batch/lot numbers on storage cases (minimum 20 packs) – simplifies inventory management for commercial customers.
• Just-in-Time Delivery: Coordinate delivery with maintenance schedules – ensures fresh, rust-free springs for every order (≤3 months from production date).
• One-Stop Purchase: Combine with other Graphtec FC9000/CE7000 parts (pinch rollers, blades, media holders) – additional bulk discounts.
