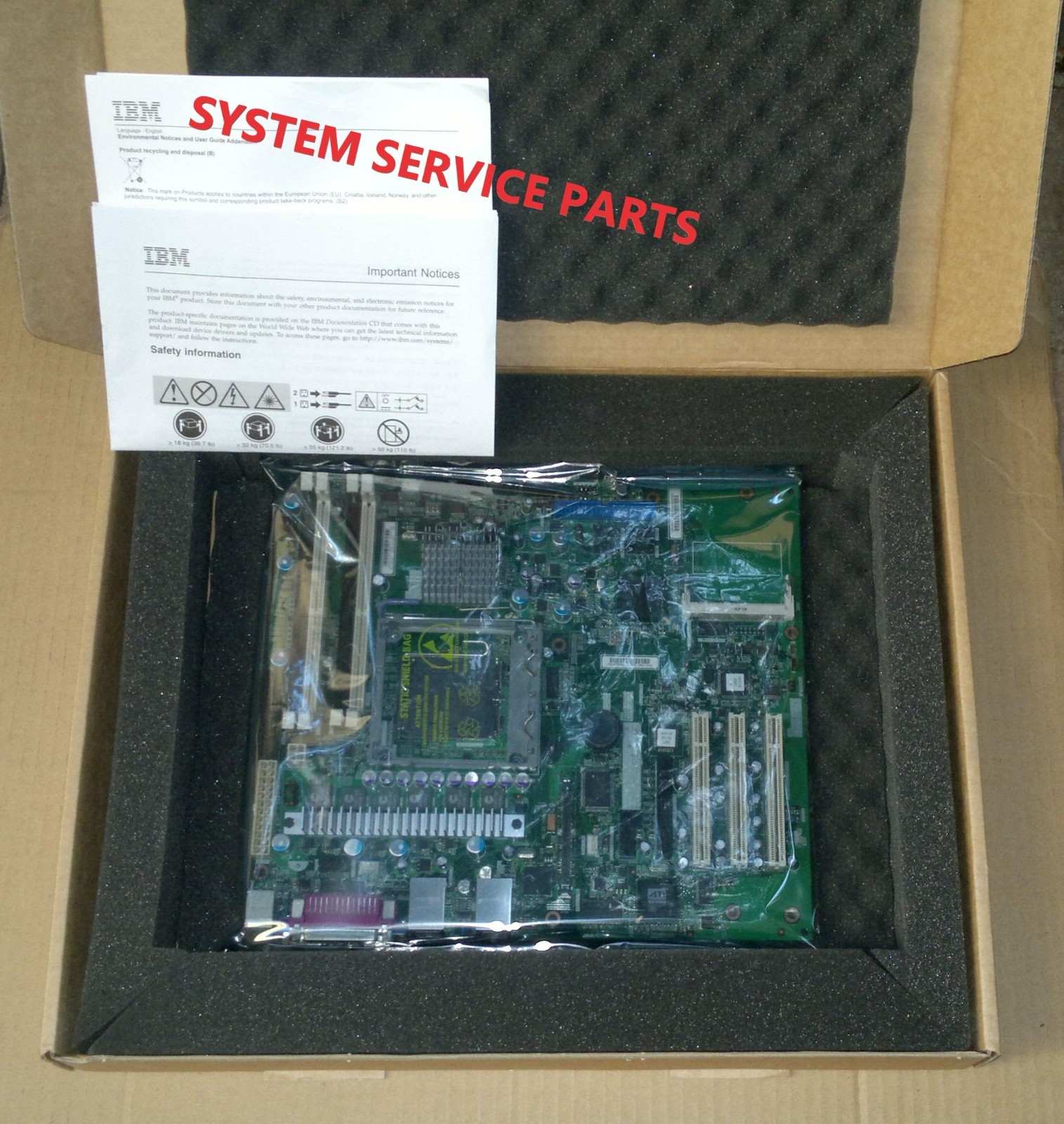

ORIGINAL IBM Motherboard X3200 MAINBOARD PLANAR SYSTEMBOARD 43W5050 43W5057 NEW
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
ORIGINAL IBM Motherboard X3200 MAINBOARD PLANAR SYSTEMBOARD 43W5050 43W5057 NEW
Price: CY $130.00

2. If possible leave your telephone #, which is required by most carriers.
3. For customers from eastern Europe (Russia, Ukraine, Slovakia, CzechRepublic, Hungary, Poland, Lativa, Romania, etc.), South America (Brazil,Chile, Argentina, etc.)
and Africa, your items will be shipped via EMS (most cases)or DHL, due to the customs problems other carriers encountered.
4. For customers from some countries in Asia, including Japan, Korea, Malaysiaand Singapore, your items will be shipped via SF, because of a fasterdelivery.

  • IBM FRU P/N :43W5050
  • IBM P/N :43W5057
  • Number of Memory Slots : 4
  • Supported Capacities: 512 MB, 1 GB, or 2 GB per DIMM
  • Memory Type : PC2-5300 or PC2-6400 DDR2 SDRAM with ECC (unbuffered, non-Chipkill)
  • Maximum Capacity: Up to 8 GB (installed in pairs; mixing sizes supported).
  • Socket Supported : FCLGA775
  • Total Slots: 5 (all full-height/full-length) : Slot 1: PCI Express x8 (4 GB/s throughput; supports x1/x4/x8 adapters).
  • Slot 2: PCI Express x4 (500 MB/s; supports x1 or x4 adapters at x1 electrical throughput).
  • Slot 3: PCI-X 64-bit/133 MHz (500 MB/s; optional, requires mini-PCI-X enablement card).
  • Slot 4: PCI 32-bit/33 MHz.
  • Slot 5: PCI 32-bit/33 MHz.
  • Ports and Connectors : USB: 8 USB 2.0 ports (2 front, 4 rear).
  • : Serial: 1 serial port rear
  • : Parallel: 1 parallel port (rear).
  • : Ethernet: 2 integrated Gigabit Ethernet (supports 10/100/1000 Mbps, IPMI 2.0, Wake on LAN, PXE).
  • : Video: 1 rear VGA port
  • Operating temp. : 5° to 40°C (41° to 104°F)
  • Shipping temp. : -40° to 70°C (-40° to 158°F)
  • Vibration Operational : 5-500 Hz, 0.21 Grms flat spectrum 0.000089 g2/Hz Random Vibration
  • Shock Operational : 5 G's for 11 ms, half sine
  • Shock Non-Operational : 15 G 11 ms half sine
  • Humidity Operating : 10% to 90% RH @ 40°C (104°F) non-condensing
  • Humidity Non-Operating : Up to 93% RH @ 40°C (104°F)

IBM SERVER TYPEs COMPATIBILITY :

  • 4362 - IBM System x3200
  • 4363 - IBM System x3200
