Description
Prohibited by the manufacturer Raspberry Pi, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Cuba, Iran, North Korea, Syria, Crimea, Donetsk, Luhansk, Russia, Belarus.Official Raspberry Pi 7inch Capacitive Touch Display, 720 × 1280, IPS, DSI Interface, 5-Point Touch, With Case(Optional)Raspberry Pi 7″ Touch Display 2

designed by Raspberry Pi

• Size7″
• Resolution720×1280
• Display InterfaceDSI
• Display PanelIPS
• Viewing Angle170°
• Touch TypeCapacitive
• Touch Points5-Point
• Touch InterfaceI2C
• Version Options

  7inch Raspberry Pi Touch Display 2
  Standard version

  7inch Raspberry Pi Touch Display 2 with Case
  with protective black case
  (suitable for Raspberry Pi 5 only)

  7inch Raspberry Pi Touch Display 2 with Case B
  with protective white case
  (suitable for Raspberry Pi 5 only)


  Product Introduction

  Raspberry Pi Touch Display 2 is a 7″ touchscreen display for Raspberry Pi. It is ideal for interactive projects such as tablets, entertainment systems, and information dashboards.

  Raspberry Pi OS provides touchscreen drivers with support for five-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.

  Only two connections are required to connect the display to your Raspberry Pi: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers.
  (Raspberry Pi Zero series is not supported)

  * for reference only, the Raspberry Pi board is NOT included.


  Device & System Support
  Raspberry PiSupports Raspberry Pi OS, 5-point touch, driver free

  * (the case supports Raspberry Pi 5 only, due to connector layout)



  Connection Examples

  Working with Raspberry Pi 5

  Working with Raspberry Pi 4B

  With protective case (suitable for Raspberry Pi 5 only)

  How to install

  Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

  * for reference only, the Raspberry Pi boards above are NOT included.



  IPS Display Panel

  Excellent Display Performance With 170° Wide Viewing Angle


  5-Point Capacitive Touch

  up to 5-point touch, depending on the operating system


  Interface Introduction
  with protective case

  How to install

  First, fix the silicone button cap inside the case as picture below, and then use the PM2.5 * 4mm black metal screws to secure the case and screen

  * for reference only, the Raspberry Pi is NOT included



  Dimensions

  Standard version

  the protective case

  Support touch screen customization

  Support the following ways to customize the touch screen display in bulk order

  Over a decade
  Waveshare grows with display

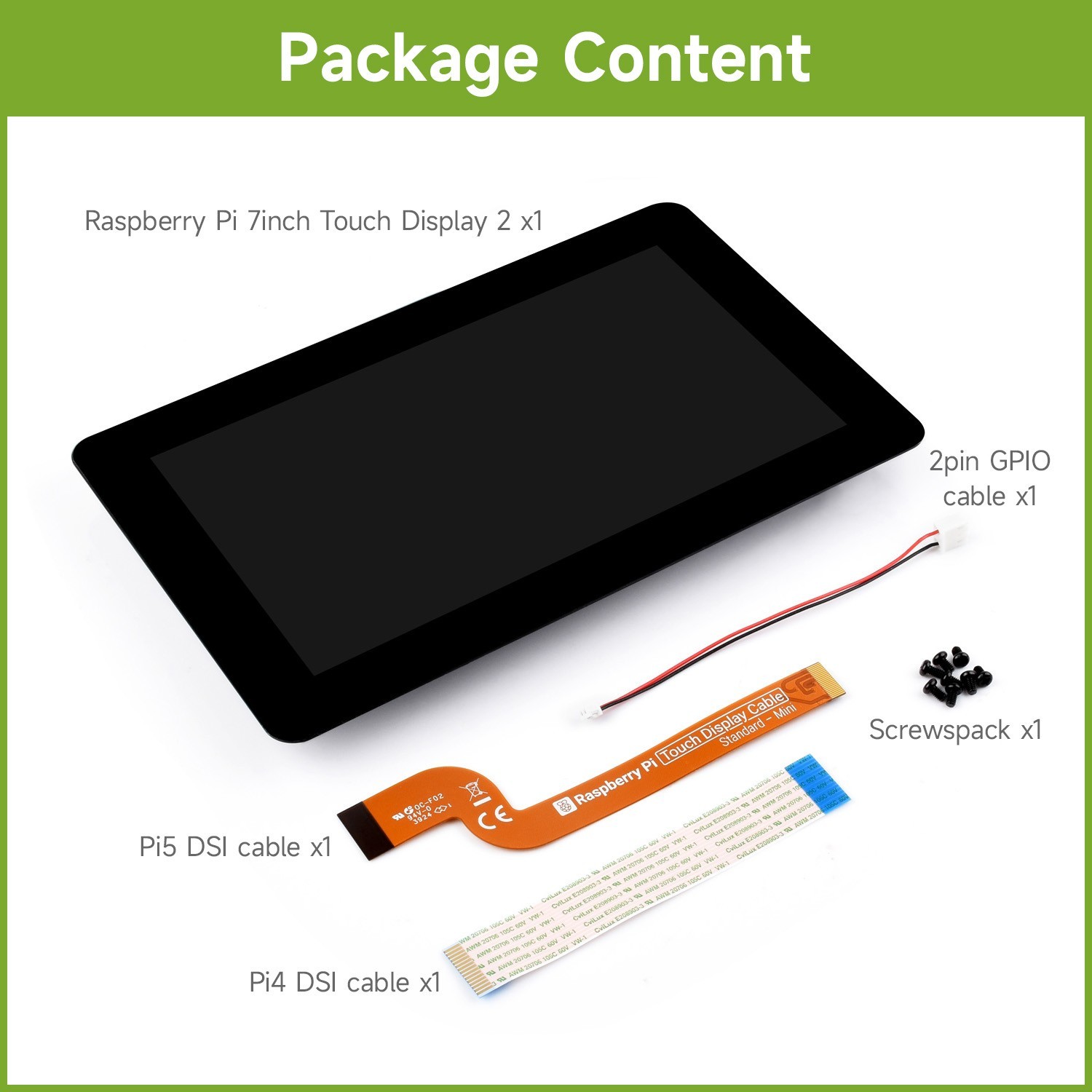

  Package Content


  Weight: 0.381 kg

  7inch Raspberry Pi Touch Display 2
  1. Raspberry Pi 7inch Touch Display 2 x1
  2. Pi5 DSI cable x1
  3. Pi4 DSI cable x1
  4. 2pin GPIO cable x1
  5. Screws pack x1
  7inch Raspberry Pi Touch Display 2 with Case
  1. Raspberry Pi 7inch Touch Display 2 x1
  2. PI5-CASE-TD2 (black) x1
  3. Pi5 DSI cable x1
  4. Pi4 DSI cable x1
  5. 2pin GPIO cable x1
  6. Screws pack x1
  7. Silicon button cap x1
  7inch Raspberry Pi Touch Display 2 with Case B
  1. Raspberry Pi 7inch Touch Display 2 x1
  2. PI5-CASE-TD2-B (white) x1
  3. Pi5 DSI cable x1
  4. Pi4 DSI cable x1
  5. 2pin GPIO cable x1
  6. Screws pack x1
  7. Silicon button cap x1
