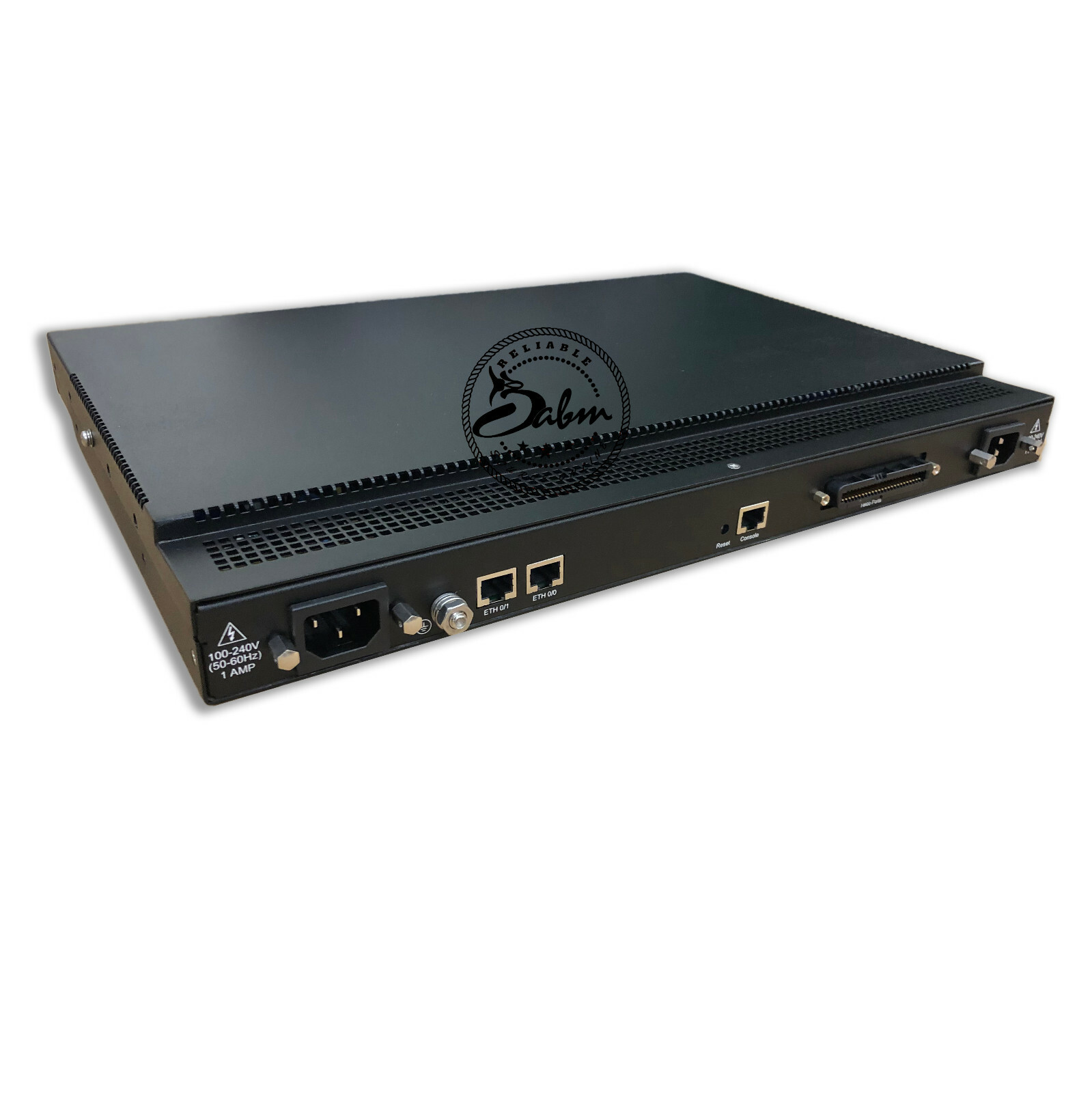

Patton SmartNode SN4924/JS/RUI | 802-4924 For Sale
|
 When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
30 Days money back guaranty Shipping within 24hr Patton SmartNode SN4924/JS/RUI | New Model: SN4924/JS/RUI899.79 $ Visit Store Message usDescriptionsTecchnical DataPatton SmartNode SN4924/JS/RUI Overview the Patton SmartNode SN4924/JS/RUI 24 Port FXS Analogue Gateway is the ideal solutionfor service providers and enterprises requiring high-density analog connections for converged Internet-Telephony. Call centers, multi-tenant-units and PBX/switch extensions can now access the low-cost benefits of packet voice while WAN, data and VPN features permit direct access the IP network with full upstream and DownStream QoS Seamless and secure network integration withfixed IP, DHCP or PPPoE. Complete access rout-ing features include NAT/NAPT, Firewall, DynDNSand the optional IPsec VPN feature license offersecure data. Optional WAN uplink modules, available inV.35/X.21, T1/E1, and xDSL options, eliminate the need for extra network termination devicesand extra cost. Quality of Service (QoS) features included advanced voice prioritization and traffic manage-ment. DownStreamQoS™ ensures voice withoutinterruptions even over best-effort internet con-nections. Packet labeling according to 802.1p,TOS and DiffServ enableintegration into managedQoS networks. Integrated GUI andCommand Line, frontpanel status and call loadindicators and a full suite of management inter-faces ensure efficient setup, continuous trouble-free operation and cost-effective deployment. Full SIP and T.38 support - Supports the complete range of industry stan-dard VoIP: SIP, H.323, T.38 fax, fax and modembypass, DTMF relay. Codecs G.729, G.723 etc.Secure Toll-Quality VoIP
- DownStreamQoS and Voice-over-VPN withadaptive traffic management and shaping formaximum voice quality and secure voice communication.Complete Access Routing
- Two 10/100 Ethernet ports with auto MDI-X.Access router with NAT, Firewall, PPPoE, DHCP,DynDNS, multiple VLANs " " VPN with IPsec*.Optional Integrated WAN uplink
- Choose from V.35, X.21, T1/E1, ADSL andG.SHDSL data interfaces in addition to the twoEthernet ports.
for more information about this product, please use the serial number in the picture above and don't be hesitate to contact us. Thanks! Patton SmartNode SN4924/JS/RUI SpecsCapacity - 12, 16, 24, 32 simultaneous VoIP calls Voice Signaling: SIPv2 H.323v4 (simultaneously with B2BUA capability)
- SIP call transfer, redirect
- DTMF in-band " " out-of-ban
- All tones programmable (dial, ringing, busy)
Voice Processing - CODEC G.711 a-law/mu-law, G.723, G.729ab,
- G.726, G.727. T.38 fax relay (9.6 k, 14.4 k)
- G.711 transparent fax and bypass
Call Switching and Services - Regular expression based call routing and number manipulation
- Number blocking
- Short-dialing
- Digit collection, distribution and hunt groups
- Transparent line extension
FXS Connectivity - 2-wire Loopstart on 50pin (12 to 24 channels) or 64-pin (32 channels) Telcoconnector
- short haul loop 1.1km @3REN
- EuroPOTS (ETSI EG201188)
- programmable AC impedance, feeding, ring and on-hook voltage
- Caller-ID FSK and ITU V.23/Bell 202 generation
FXO Connectivity - 2-wire Loopstart on 50pin (12 to 24 channels) or 64-pin (32 channels) Telcoconnector
- Programmable impedance, ring detection, tone detection, disconnect supervision
- Caller ID detection
Data Services - Two 10/100 Ethernet ports
- SIP call transfer, redirect
- DTMF in-band " " out-of-ban
- All tones programmable (dial, ringing, busy)
Voice Processing - CODEC G.711 a-law/mu-law, G.723, G.729ab,
- G.726, G.727. T.38 fax relay (9.6 k, 14.4 k)
- G.711 transparent fax and bypass
Call Switching and Services - Regular expression based call routing and number manipulation
- Number blocking
- Short-dialing
- Digit collection, distribution and hunt groups
- Transparent line extension
FXS Connectivity - 2-wire Loopstart on 50pin (12 to 24 channels) or 64-pin (32 channels) Telcoconnector
- short haul loop 1.1km @3REN
- EuroPOTS (ETSI EG201188)
- programmable AC impedance, feeding, ring and on-hook voltage
- Caller-ID FSK and ITU V.23/Bell 202 generation
FXO Connectivity - 2-wire Loopstart on 50pin (12 to 24 channels) or 64-pin (32 channels) Telcoconnector
- Programmable impedance, ring detection, tone detection, disconnect supervision
- Caller ID detection
Data Services - Two 10/100 Ethernet ports
- Complete IP access router
- DHCP Client " " server
- Packet fragmentation
- Static firewall, NAT, NAPT RFC 1631 access control lists
- DMZ port
strong>Quality of Service- Voice management, shaping and policing
- IEEE 802.1p, TOS, DiffServ labeling
- IEEE 802.1Q, VLAN tag insertion/deletion 4,096
Optional WAN interfaces - X.21/V.35 Frame Relay (8 PVCs); RFC1490, FRF.12 fragmentation; LMI, Q.933D, ANSI 617D, Gang of Four; PPP, PAP, CHAP, LCP, IPCP)
- T1/E1 (ITU-T G.703, ANSI T1.403; " " AMI, B8ZS, HDB3)
- ADSL2+ (Annex A, B, I, J, I, M, U-R2)
- G.SHDSL (G.991.2, Annex A, B, F, G, Up to 5.7Mbps, 8 PVCs, CLI with local console and remote Telnet access
- TFTP configuration " " firmware loading
- SNMP MIB II and product MIB
- Secure auto-provisioning for both firmware and unit/subscriber configuration
- Built-in diagnostic tools (trace, debug, call generator)
System - CPU Motorola MPC875 @ 133 MHz
- Memory 32MB SDRAM/8MB Flash
Power Power dissipation: > 22W (60W max, model (non compliance: EN55022 and EN55024 Safety compliance: EN 50950CE compliance FCC Part 15 Class A RoHS Further-InformationShipping - Shipping to: United States Excludes: Alaska/Hawaii, APO/FPO, US Protectorates, PO Box
- Most items are delivered in 1-3 business days and when you place your order before 3 p.m. EST, it will ship that same day.
- Attention: If no delivery attempt has been made by UPS after 3 days after receiving a shipping confirmation from us via e-mail, please inform us as soon as possible
Returns Info - Return is accepted within 30 days of receipt
- Cancelling Your Order: Your order is important to us and will be processed immediately.
- If you happen to change your mind after payment is confirmed, our team will do our best to stop the order, but ABM.Reliable Source cannot guarantee the cancellation. You can obtain further information by: contacting us
