Overview

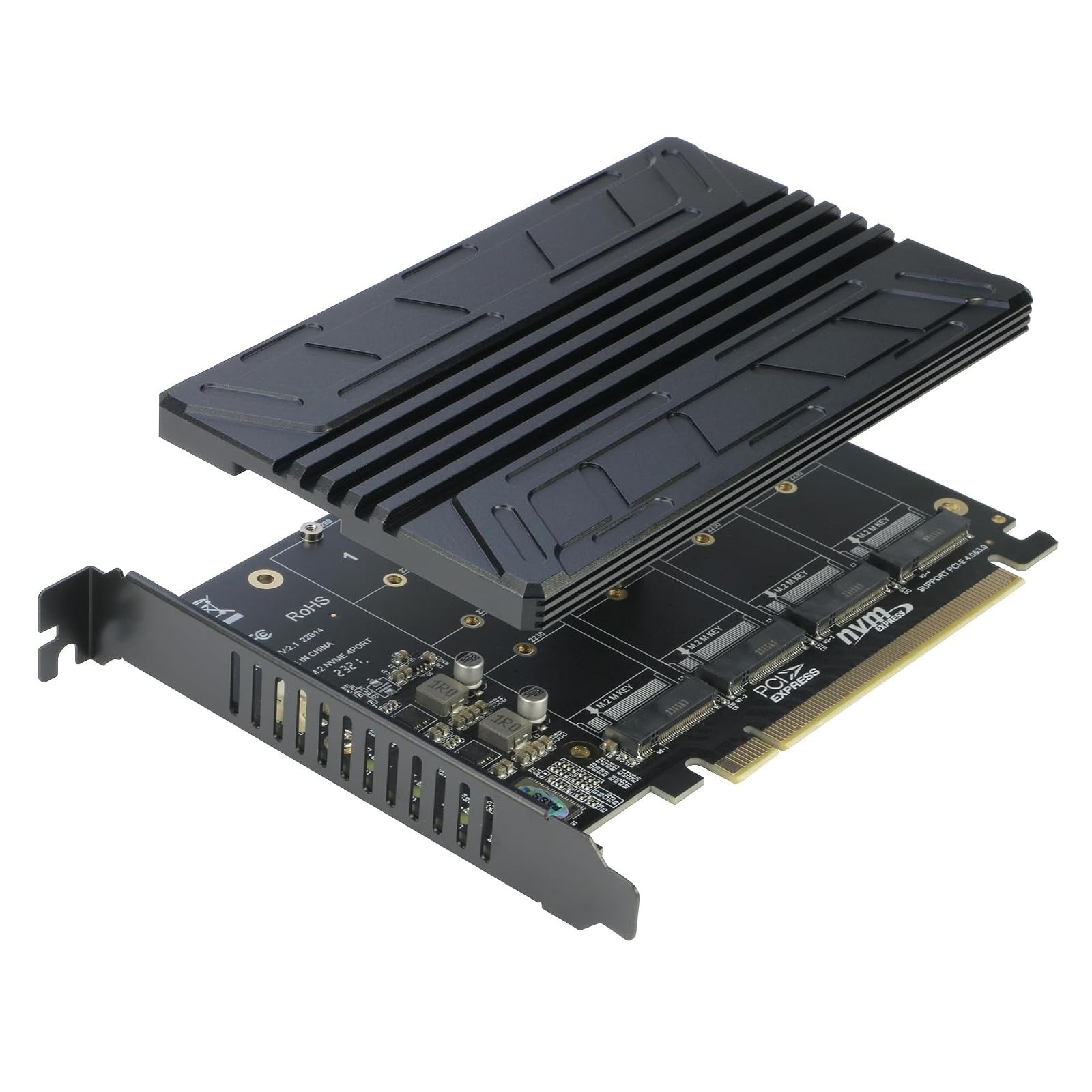

Expand your workstation or server with the RIITOP Quad NVMe PCIe Adapter, a high-performance expansion card that lets you run up to four M.2 NVMe solid state drives simultaneously through a single PCIe x16 slot. Built for enthusiasts, content creators and IT professionals who need serious storage throughput, this card turns one open slot into a four-drive NVMe array capable of full-speed transfers up to 4x 32 Gbps.
The board features an integrated 0.32 inch heatsink that keeps your drives running cool under sustained load, so they maintain peak performance instead of throttling. Individual LED indicators show the working status of each installed SSD at a glance, making it easy to monitor your setup. Available in PCIe 4.0 and PCIe 5.0 versions, simply pick the option that matches your motherboard.
Key Features
- Brand: RIITOP
- Model: 4P-NVTPCE16HN
- Type: Non-RAID controller expansion card
- Interface: PCIe 4.0 or 3.0 x16 slot (version selectable)
- Supported Drives: M.2 PCIe NVMe (M Key) SSDs in 2280, 2260, 2242 and 2230 sizes
- Number of Ports: 4
- Cooling: Integrated 0.32 inch heatsink
- Operating System: Windows 10
- Dimensions: 6.19 in L x 4.74 in W x 0.32 in H
Highlights
- ✓ Run four NVMe SSDs at once from a single PCIe x16 slot for massive storage and speed
- ✓ Full-speed transmission up to 4x 32 Gbps keeps large file transfers and workloads moving fast
- ✓ Built-in heatsink prevents thermal throttling so drives stay at peak performance
- ✓ Per-drive LED indicators let you check each SSD status instantly
- ✓ Slim profile heatsink does not block neighboring PCIe slots
Usage
Ideal for gaming rigs, video editing workstations, home servers and NAS builds that demand fast, high-capacity NVMe storage. Install the card in a free PCIe x16 slot, set the slot to PCIe x4x4x4x4 Bifurcation in your BIOS, and mount your M.2 NVMe drives. Soft RAID can be configured in Windows 10 or through third-party software for added redundancy or performance.
In the Box
- RIITOP Quad NVMe PCIe Adapter Card
- Mounting hardware
Please Note
- Requires a motherboard that supports PCIe x16 Bifurcation and can be set to PCIe x4x4x4x4 in BIOS. Without Bifurcation support, only one M.2 SSD will be recognized.
- Supports M.2 PCIe NVMe (M Key) SSDs only. M.2 SATA-based B+M Key SSDs are not supported.
- Does not support hardware RAID. RAID must be configured as software RAID in Windows 10 or via third-party software, and all four SSDs should be the same model.
