Raspberry Pi Pico 2 W Microcontroller Board, Based on Official RP2350 Chip, Dual-core & Dual-architecture Design, Supports WIFI and Bluetooth, Various Development Kit OptionsRaspberry Pi Pico 2 W

The next big tiny thing

Built Using RP2350 Microcontroller Chip Designed By Raspberry Pi

Board specifications

Raspberry Pi Pico 2 Wis a low-cost, high-performance microcontroller board with flexible digital interfaces. Upgraded hardware from Pico 2 with wireless communication, onboard antenna, features 2.4GHz 802.11n WIFI and Bluetooth 5.2.

Key features include:

• RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
• Onboard Infineon CYW43439 wireless chip, supports WIFI 4 wireless and Bluetooth 5.2
• 520KB of SRAM, and 4MB of on-board Flash memory
• Castellated module allows soldering direct to carrier boards *
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 26 × multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
• Temperature sensor
• 12 × Programmable I/O (PIO) state machines for custom peripheral support

* Note: the Pico 2 WH is the official version with pre-soldered header, no castellated holes design, can only be connected to the carrier board via pin header.

Pico ComparisonModelPico 2 WPico 2Pico WPicoprocessorDual-core ARM Cortex-M33
or dual-core Hazard3 RISC-V
@150MHzDual-core ARM Cortex-M0+
2 × SPI
2 × I2C
3 × ADC
1 × USB 1.1 and PHY
16 × PWM12 × PIO state machines8 × PIO state machines1 × HSTX-GPIO pins26
Version Options

Raspberry Pi Pico 2 W Original

Raspberry-Pi-Pico-2-W-M
Pico 2 W Original with pre-soldered header (mono)

Raspberry-Pi-Pico-2-W-CC
Pico 2 W Original with pre-soldered header (color-coded)

Raspberry Pi Pico 2 WH Original
the official version with pre-soldered header (black)

Kit Selection Guide

Pico 2 W Starter Kit

This kit includes the Raspberry Pi Pico 2 W with pre-soldered header (mono), an experimental board, jumper wires, and aclear Acrylic protection case, which is more convenient to get started and begin your DIY creations.

Pico 2 W Basic Kit

On the basis of the starter kit, this kit includesLCD1602 RGB Module, PIR motion sensor, RGB LED, alarm, single-joint potentiometer, and 5mm LED, etc. With the official tutorial, you can quickly get started with MicroPython programming.

Pico 2 W Evaluation Kit

On the basis of the starter kit, this kit etc. Simply connect the Pico 2 W and these two Pico HAT to the GPIO expander board, you can quickly set up a fully functional evaluation platform and start your innovation journey.

Pico 2 W Sensor Kit

On the basis of the starter kit, equipped with entry-levelRaspberry Pi Pico 2 W Sensor Kitwhich is including 15 common modules such as LED, button, buzzer, etc. All-in-one design, all modules are connected to Pico 2 W via PCB castellated holes, no soldering or wiring is required. Each module can be easily separated for individual use, offering more flexibility for your experiments and projects. Standard Raspberry Pi Pico 2 W header, plug-and-play, also comes withclear Acrylic protection case, this kit is your ideal choice to quickly build prototypes or explore the functionality of various sensors

The Raspberry Pi Pico Sensor Kit includes

• Standard Raspberry Pi Pico 2 W header
• 1.5inch OLED Module
• 6-Axis Motion Sensor
• Potentiometer Module
• Photosensitive Resistor Module
• Sound Sensor Module
• RGB LED Module
• Buzzer Module

• VOC Sensor Module
• IR Receiver Module
• IR Transmitter Module
• Button Module
• LED Module
• Temperature/Humidity Sensor Module
• EEPROM Module
• Motor Drive Module

C/C++, MicroPython support

Comprehensive SDK, dev resources, tutorials to help you easily get started

dual-core, dual-architecture

The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment

WIFI and Bluetooth Support

Onboard Infineon CYW43439 wireless chip, supports WIFI 4 wireless and Bluetooth 5.2

26 × multi-function GPIO pins

configurable pin function, allows flexible development and integration

outline dimensionsResources & Services
Package Content

Weight:0.006 kg

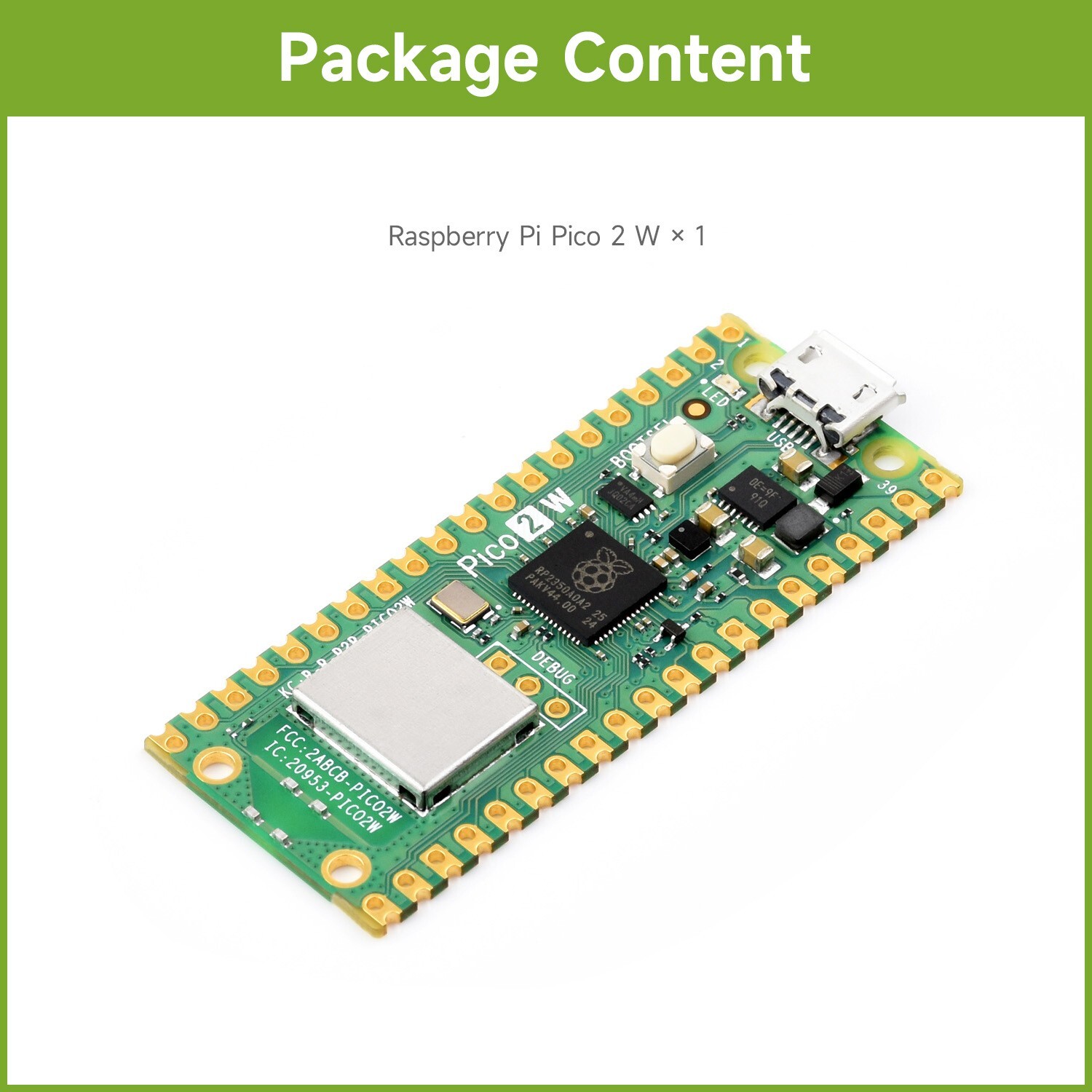

Raspberry Pi Pico 2 W Original

Raspberry Pi Pico 2 W x1

Raspberry Pi Pico 2 WH Original

Raspberry Pi Pico 2 WH x1

Raspberry-Pi-Pico-2-W-M

1. Raspberry Pi Pico 2 W with pre-soldered header (mono) x1
2. 1*3PIN yellow pin header x1
3. USB-A to micro USB cable ~1.2m x1

Raspberry-Pi-Pico-2-W-CC

1. Raspberry Pi Pico 2 W with pre-soldered header (color-coded) x1
2. 1*3PIN yellow pin header x1
3. USB-A to micro USB cable ~1.2m style="box-sizing: border-box; margin: 0px 0px 1em; padding: 0px 0px 0px 1.5em; list-style-position: outside; list-style-image: initial;">
4. Raspberry Pi Pico 2 W with pre-soldered header (mono) x1
5. Acrylic protective case (top and bottom) x1
6. Experimental board + jumper wires x1
7. USB-A to micro USB cable ~1.2m style="box-sizing: border-box; margin: 0px 0px 1em; padding: 0px 0px 0px 1.5em; list-style-position: outside; list-style-image: initial;">
8. Raspberry Pi Pico 2 W with pre-soldered header (mono) x1
9. Experimental board + jumper wires x1
10. USB-A to micro USB cable ~1.2m x1
11. PIR sensor 2PCS x1
12. Single-joint potentiometer x1
13. 8-Bit WS2812 RGB LED x1
14. Round-shape button 3PCS x1
15. Alarm x1
16. 330R resistor 10PCS x1
17. 5mm LED 6PCS x1
18. LCD1602 RGB Module x1
19. Jumper wire 2.54mm pitch male-male 10PIN ~200mm x1
20. Jumper wire 2.54mm pitch female-female 10PIN ~200mm x1
21. Jumper wire 2.54mm pitch male-female 10PIN ~200mm x1
22. Plastic storage box x1
23. Acrylic protective case (top and bottom) style="box-sizing: border-box; margin: 0px 0px 1em; padding: 0px 0px 0px 1.5em; list-style-position: outside; list-style-image: initial;">
24. Raspberry Pi Pico 2 W with pre-soldered header (mono) x1
25. Pico-LCD-1.3 x1
26. Pico-10DOF-IMU x1
27. Pico-Dual-Expander x1
28. Acrylic protective case (top and bottom) x1
29. USB-A to micro USB cable ~1.2m x1
30. Black anti-slip rubber 4PCS x1
31. Experimental board + jumper wires x1
32. Jumper wire 2.54mm pitch male-female 10PIN ~200mm x1
33. Jumper wire 2.54mm pitch female-female 10PIN ~200mm x1
34. Jumper wire 2.54mm pitch male-male 10PIN ~200mm style="box-sizing: border-box; margin: 0px 0px 1em; padding: 0px 0px 0px 1.5em; list-style-position: outside; list-style-image: initial;">
35. Pico-Sensor-Kit-B x1
36. Raspberry Pi Pico 2 W with pre-soldered header (mono) x1
37. Acrylic protective case (top and bottom) x1
38. PH2.0 4PIN cable ~300mm (5pcs) x1
39. PH2.0 dual-plug 4PIN cable (15pcs) x1
40. IR remote controller x1
41. USB-A to micro USB cable ~1.2m x1
