Description
Package Contentfor more kits, pls refer style="box-sizing: border-box; margin: 0px 0px 10px; padding: 0px; color: rgb(24, 24, 26); font-family: Arial, sans-serif; font-size: 14px; text-align: start;">Weight:0.047 kg

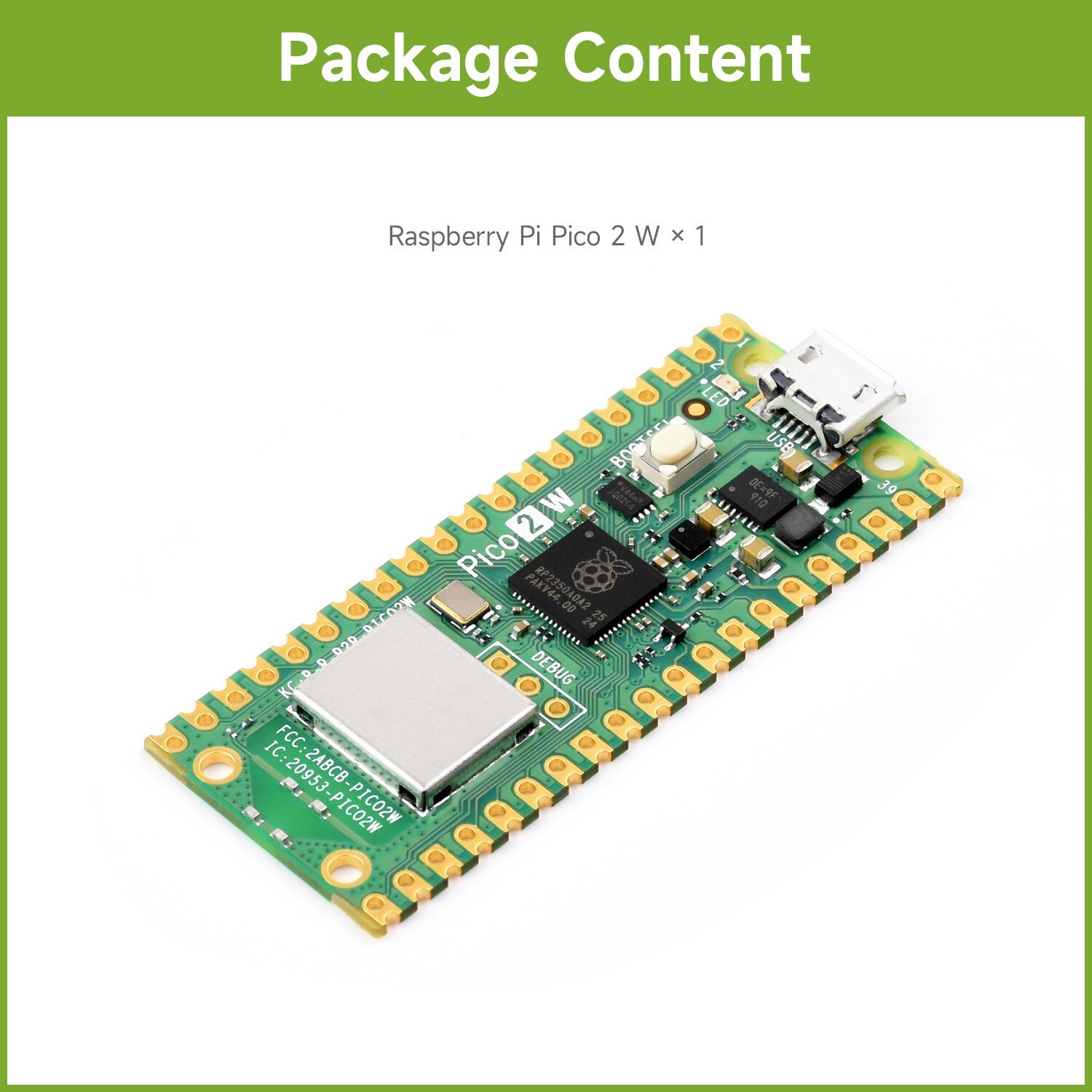

Raspberry Pi Pico 2 W Original

Raspberry Pi Pico 2 W x1

Raspberry-Pi-Pico-2-W-M

1. Raspberry Pi Pico 2 W with pre-soldered header (mono) x1
2. 1*3PIN yellow pin header x1
3. USB-A to micro USB cable ~1.2m x1

Raspberry-Pi-Pico-2-W-CC

1. Raspberry Pi Pico 2 W with pre-soldered header (color-coded) x1
2. 1*3PIN yellow pin header x1
3. USB-A to micro USB cable ~1.2m x1

Raspberry Pi Pico 2 W Microcontroller Board, Based on Official RP2350 Chip, Dual-core & Dual-architecture Design, Supports WIFI and Bluetooth, Various Development Kit OptionsRaspberry Pi Pico 2 W

The next big tiny thing

Built Using RP2350 Microcontroller Chip Designed By Raspberry Pi

Board specifications

Raspberry Pi Pico 2 Wis a low-cost, high-performance microcontroller board with flexible digital interfaces. Upgraded hardware from Pico 2 with wireless communication, onboard antenna, features 2.4GHz 802.11n WIFI and Bluetooth 5.2.

Key features include:

• RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
• Onboard Infineon CYW43439 wireless chip, supports WIFI 4 wireless and Bluetooth 5.2
• 520KB of SRAM, and 4MB of on-board Flash memory
• Castellated module allows soldering direct to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 26 × multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
• Temperature sensor
• 12 × Programmable I/O (PIO) state machines for custom peripheral support

Pico ComparisonModelPico 2 WPico 2Pico WPicoprocessorDual-core ARM Cortex-M33
or dual-core Hazard3 RISC-V
@150MHzDual-core ARM Cortex-M0+
2 × SPI
2 × I2C
3 × ADC
1 × USB 1.1 and PHY
16 × PWM12 × PIO state machines8 × PIO state machines1 × HSTX-GPIO pins26Version Options

Raspberry Pi Pico 2 W Original

Raspberry-Pi-Pico-2-W-M
Pico 2 W Original with pre-soldered header (mono)

Raspberry-Pi-Pico-2-W-CC
Pico 2 W Original with pre-soldered header (color-coded)

Kit Selection Guide

Pico 2 W Starter Kit

This kit includes the Raspberry Pi Pico 2 W with pre-soldered header (mono), an experimental board, jumper wires, and aclear Acrylic protection case, which is more convenient to get started and begin your DIY creations.

Pico 2 W Basic Kit

On the basis of the starter kit, this kit includesLCD1602 RGB Module, PIR motion sensor, RGB LED, alarm, single-joint potentiometer, and 5mm LED, etc. With the official tutorial, you can quickly get started with MicroPython programming.

Pico 2 W Evaluation Kit

On the basis of the starter kit, this kit etc. Simply connect the Pico 2 W and these two Pico HAT to the GPIO expander board, you can quickly set up a fully functional evaluation platform and start your innovation journey.

Pico 2 W Sensor Kit

On the basis of the starter kit, equipped with entry-levelRaspberry Pi Pico 2 W Sensor Kitwhich is including 15 common modules such as LED, button, buzzer, etc. All-in-one design, all modules are connected to Pico 2 W via PCB castellated holes, no soldering or wiring is required. Each module can be easily separated for individual use, offering more flexibility for your experiments and projects. Standard Raspberry Pi Pico 2 W header, plug-and-play, also comes withclear Acrylic protection case, this kit is your ideal choice to quickly build prototypes or explore the functionality of various sensors

The Raspberry Pi Pico Sensor Kit includes

• Standard Raspberry Pi Pico 2 W header
• 1.5inch OLED Module
• 6-Axis Motion Sensor
• Potentiometer Module
• Photosensitive Resistor Module
• Sound Sensor Module
• RGB LED Module
• Buzzer Module

• VOC Sensor Module
• IR Receiver Module
• IR Transmitter Module
• Button Module
• LED Module
• Temperature/Humidity Sensor Module
• EEPROM Module
• Motor Drive Module

C/C++, MicroPython support

Comprehensive SDK, dev resources, tutorials to help you easily get started

dual-core, dual-architecture

The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment

WIFI and Bluetooth Support

Onboard Infineon CYW43439 wireless chip, supports WIFI 4 wireless and Bluetooth 5.2

26 × multi-function GPIO pins

configurable pin function, allows flexible development and integration

outline dimensionsResources & ServicesWiki:[link removed by ]Pico Product SelectionPRODUCTVoltage regulator chipUSBFlashLithium battery headerOnboard LCDRP2350 chip
Raspberry Pi Pico 2DC-DC, 800mAMicro USB4MB--
Raspberry Pi Pico 2 WDC-DC, 800mAMicro USB4MB-with WIFI and Bluetooth
Type-C ver.LDO, 800mAType-C4MB--
ETH Port ver.LDO, 800mAType-C4MB-with Ethernet port
1.28inch Round LCD ver.LDO, 300mAType-C4MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS LCD
1.28inch Round Touch LCD ver.LDO, 300mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS touch LCD
Plus ver.DC-DC, 2000mAType-C4MBSupport(allows recharging the battery and powering the board at the same time)-RP2040 chip
Raspberry Pi Pico WDC-DC, 3000mAMicro USB2MB-with WIFI
Raspberry Pi Pico WHDC-DC, 3000mAMicro USB2MB-with WIFI
Raspberry Pi PicoDC-DC, 800mAMicro USB2MB--
Raspberry Pi Pico HDC-DC, 800mAMicro USB2MB--
Type-A ver.LDO, 500mAType-A4MB--
Mini ver.LDO, 800mAType-C2MB--
Tiny ver.LDO, 500mASeparate Type-C port adapter2MB-Separate adapter board design, adapting USB Type-C port via FPC
RGB Matrix ver.LDO, 500mAType-C2MB-Onboard 5×5 RGB LED matrix
BLE ver.LDO, 300mASeparate Type-C port adapter2MB-Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC
ETH Port ver.LDO, 500mAType-C4MB-with Ethernet port
0.99inch Round LCD with case ver.LDO, 500mAType-C2MB-0.99inch IPS LCD, CNC metal case
1.28inch Round LCD ver.LDO, 300mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS LCD
1.28inch Round LCD with case ver.LDO, 300mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS LCD, CNC metal case
1.28inch Round Touch LCD ver.LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.28inch Touch LCD
1.28inch Round Touch LCD with case ver.LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.28inch Touch LCD, CNC metal case
1.69inch Touch LCD ver.LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.69inch Touch LCD
0.96 LCD ver.DC-DC, 1800mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)0.96inch IPS LCD
Plus ver.DC-DC, 1800mAType-C4MB/16MBSupport(allows recharging the battery and powering the board at the same time)-
DVI port ver.LDO, 300mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)Onboard DVI interface, TF card slot and PIO-USB port
Cam & LCD ver.-Type-C16MB-Onboard grayscale camera and 1.14inch IPS LCD display
