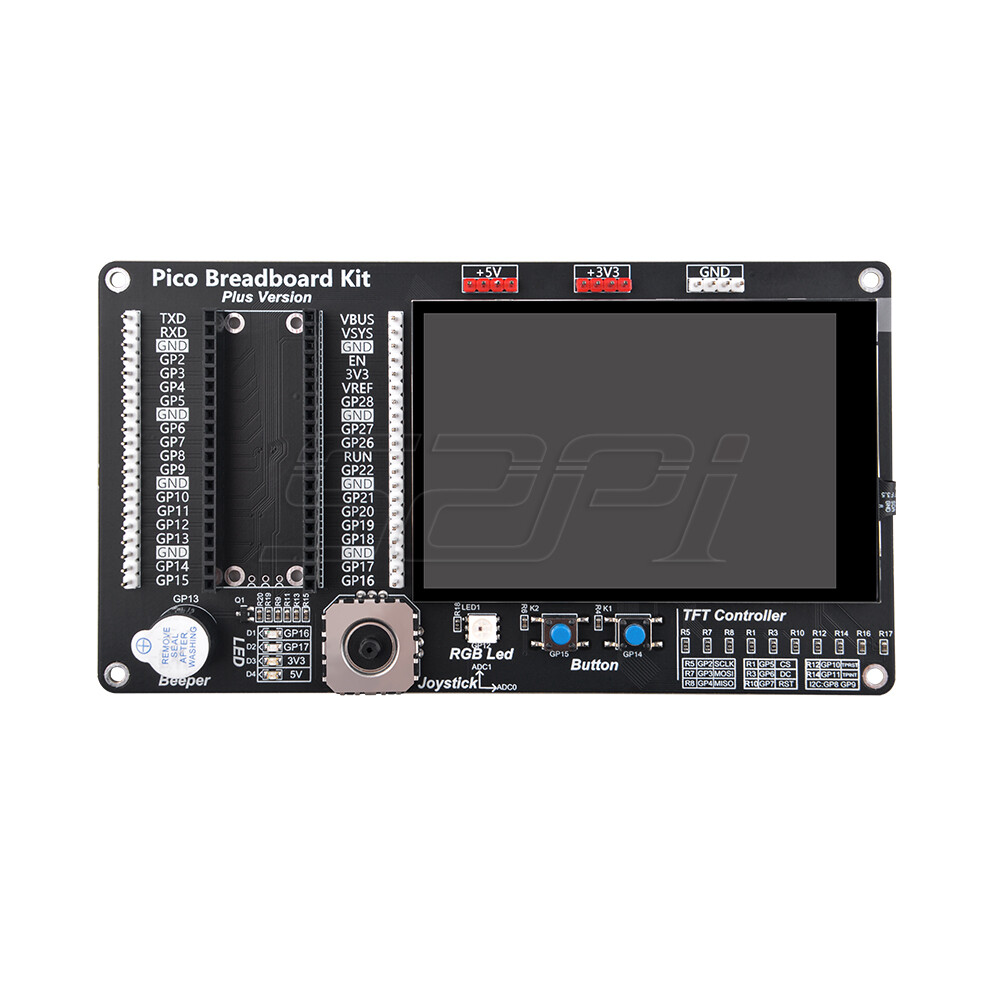

If you want to buy in bulk, please note that Speedpak cannot send orders over $800, please choose Expedited Shipping.Pico Breadboard Kit Plus version[Description]

[Features]

• 3.5-inch Capacitive Touch Screen:The kit includes a high-resolution touch screen for displaying visual outputs and receiving user input.

• Mini PSP Joystick:The built-in mini joystick provides precise analog control for navigating menus and controlling movement in projects.

• RGB Light:The kit features an RGB light that can emit various colors, allowing for dynamic visual effects and status indicators.

• Buzzer:An integrated buzzer produces audible response, enabling sound effects or alerts in your projects.

• Two Buttons:The kit includes two buttons for user input, providing additional control options and interactivity.

• Label:Drop the jumper, all the information is marked on the PCB and can also be disconnected by removing the 0R align="start" style="box-sizing: border-box; -webkit-tap-highlight-color: transparent; outline: 0px; list-style: disc; margin-block: 1em; margin-inline: 0px; padding-inline-start: 40px; font-size: 14px; font-style: normal; font-variant-ligatures: normal; font-variant-caps: normal; font-weight: 400; letter-spacing: normal; orphans: 2; text-align: start; text-indent: 0px; text-transform: none; widows: 2; word-spacing: 0px; -webkit-text-stroke-width: 0px; white-space: normal; text-decoration-thickness: initial; text-decoration-style: initial; text-decoration-color: initial; font-family: sans-serif; color: rgb(32, 33, 34); background-color: rgb(255, 255, 255); margin: 0.3em 0px 0px 1.6em; padding: 0px;">

• Joystick: Mini PSP joystick for analog control

• Light: RGB light for color output

• Buzzer: Integrated buzzer for audible response

• Buttons: Two buttons for user input

• TFT Size: 3.5 inches TFT

• TFT Resolution: 320x480 Pixels

• TFT IC: ST7796SU1 (*May vary with lot*)

• TFT Touch Type: Capacitive Touch Screen

• Weight: 0.25kg

• Package Size：Appro. Includes]

  • 1 x Pico Breadboard Kit Plus version

  • 1 x 3.5" Capacitive Touch TFT (already installed on the kit)

  • 4 x Copper pillar

  • 4 x M2.5 Screw

  • 4 x M2.5 nuts

  • 1 x Acrylic panel
