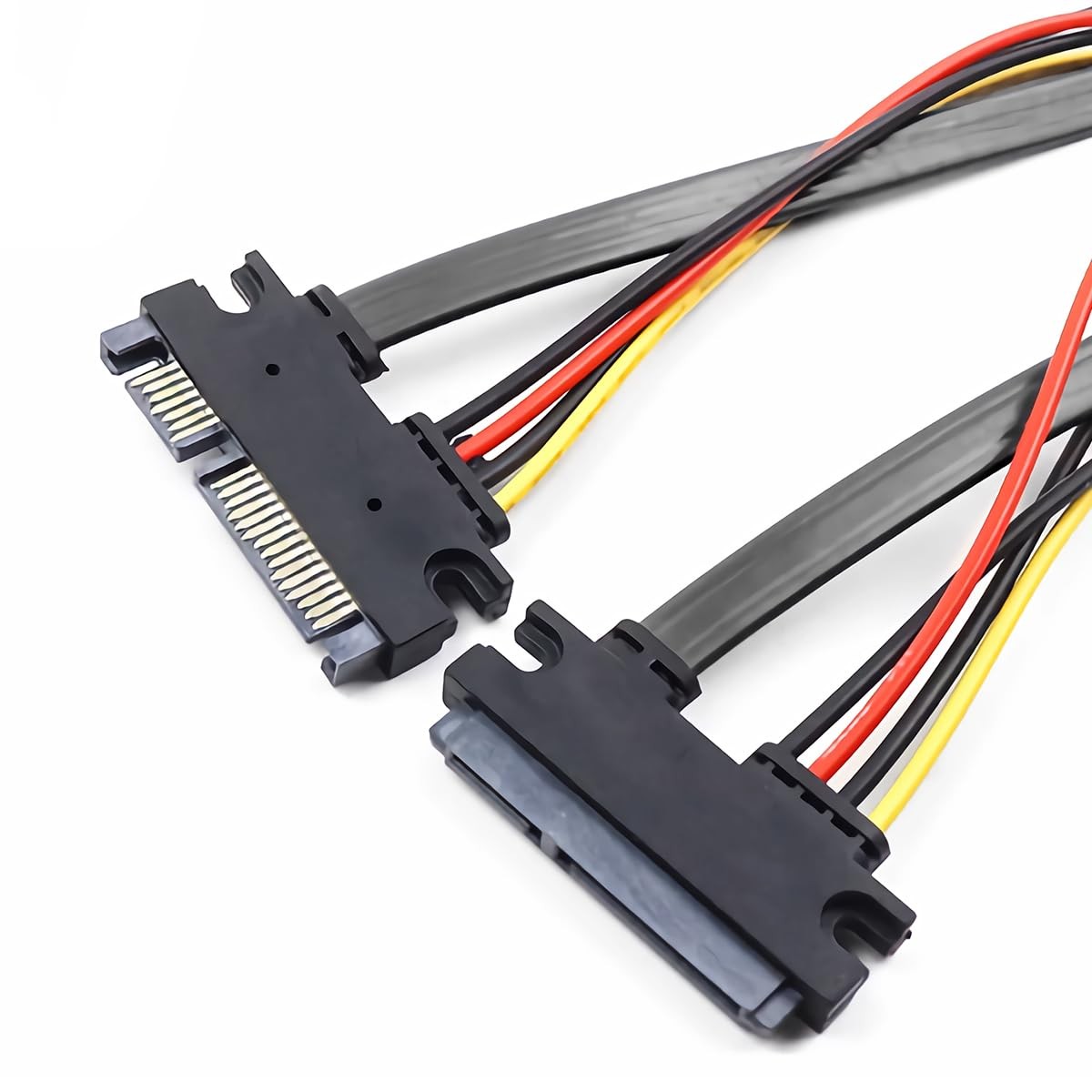

This is a 22 pin SATA to female Right Angle power and data extension cable. The 22 pin SATA power extension cable assembly contains both 15 pin Power and 7 pin DATA with both Female and connections. The cable is approx. 19.7-inch in length.
The 22-Pin SATA to Female Right Angle Power and Data Extension Cable is a specialized cable designed to extend both the power and data connection of a SATA device within a computer. It provides flexibility for routing cables in tight spaces while maintaining secure and stable connections for storage devices such as hard drives, SSDs, or optical drives.
Extend the reach of your SATA hard drive connection by up to 1.6ft This 19.7-inch, 22-pin SATA Power and Data Extension Cable enables you to extend the reach between internal SATA power and data connections and a SATA hard drive by up to 1.6ft Eliminates the need to bend or strain the cable to account for a lack of space The extension simplifies drive installation by overcoming typical connection limitations, and it reduces the risk of damage to the drive or motherboard SATA connectors by eliminating the need to strain or stretch the cable to make the necessary data connection. Applications
Provides flexibility in SATA drive and cable placement, when building or upgrading systems
Extend SATA backplane adapter connections
Extend SATA Drive Dock connections
Interface : Interface 1: SATA 22PIN (7+15PIN) Plug Interface 2: SATA 22PIN (7+15PIN) Female Plug Wire: -copper core Cable Length: 50cm(about1.5FT) Shielding: aluminum foil and multi-layer shielding anti-interference material Package includes: 1x SATA3.0 22PIN(15+7)Data and Power Combo Cable M/F Note: This SATA cable power cord does not 3.3V power output. Please note that these pin attributes have been indicated in the figure.
22 Pin SATA to Female: This 2-in-1 SATA Combo Cable integrates a SATA data 7-pin and a SATA 15 Pin Cable into a single interface, optimizing device connections. This to Female SATA Cable seamlessly supports all serial ATA devices like Internal HDD SSD Power Cable setups, desktop hard drives, and optical drives
6Gbps High-Speed Transfer: Experience ultra-fast SATA extension cable performance with data transfer speeds up to 6Gbps. This high-bandwidth SATA Power and Data Cable ensures maximum network efficiency between host bus adapters (HBA) and storage units. It is backward , automatically adjusting to 3Gbps or 1.5Gbps for older Hard Drive Cable models
Premium Braided Protection: Engineered with a premium Insulated Braided Sheath, this Serial ATA Cord features an -copper core for low resistance and oxidation protection. Enhanced with aluminum foil multi-layer shielding, this Shielded SATA Cable blocks external interference, ensuring superior data stability and power conversion
Secure Lock and Easy Routing: Featuring an Iron Buckle Lock design, this slimline SATA Power Cable Extension provides a snug, plug-and-play connection that resists cabinet vibration. The heavy-duty SATA 22Pin Cable includes easy-grip treads for effortless plugging in tight chassis spaces, completely preventing loose connections or hardware failures
Ultra-Flexible and Ultra-Durable: This flexible SATA 15+7 Pin Extension facilitates neat cable routing in compact setups. Built with a heavy-duty PVC housing, this resilient HDD SSD Extension wire has passed rigorous 15,000+ bend tests. It offers excellent resistance against bending and stretching, outperforming standard Computer Power Splitter cables
Versatile Application Guide: Measuring 19.7 inches, this convenient SATA Data and Power Cable features and female end to solve short wire limitations. It allows HD media players to connect directly to storage drives. For customized or larger system builds, you can link multiple cords end-to-end to serve as a reliable PC Power Supply Extension
Important Voltage Note: Notebooks and desktops operate on different voltages. When used with laptops, this standard 22-pin (7+15) sata -to-female extension cable only supports smaller 2.5 inch drives. For desktops, it supports both 2.5 inch and larger 3.5 inch hard drives. Please note this SATA 15 Pin Cable features a 4-wire configuration (Yellow 12V, Red 5V, and 2 Black Ground); it does not deliver 3.3V power
