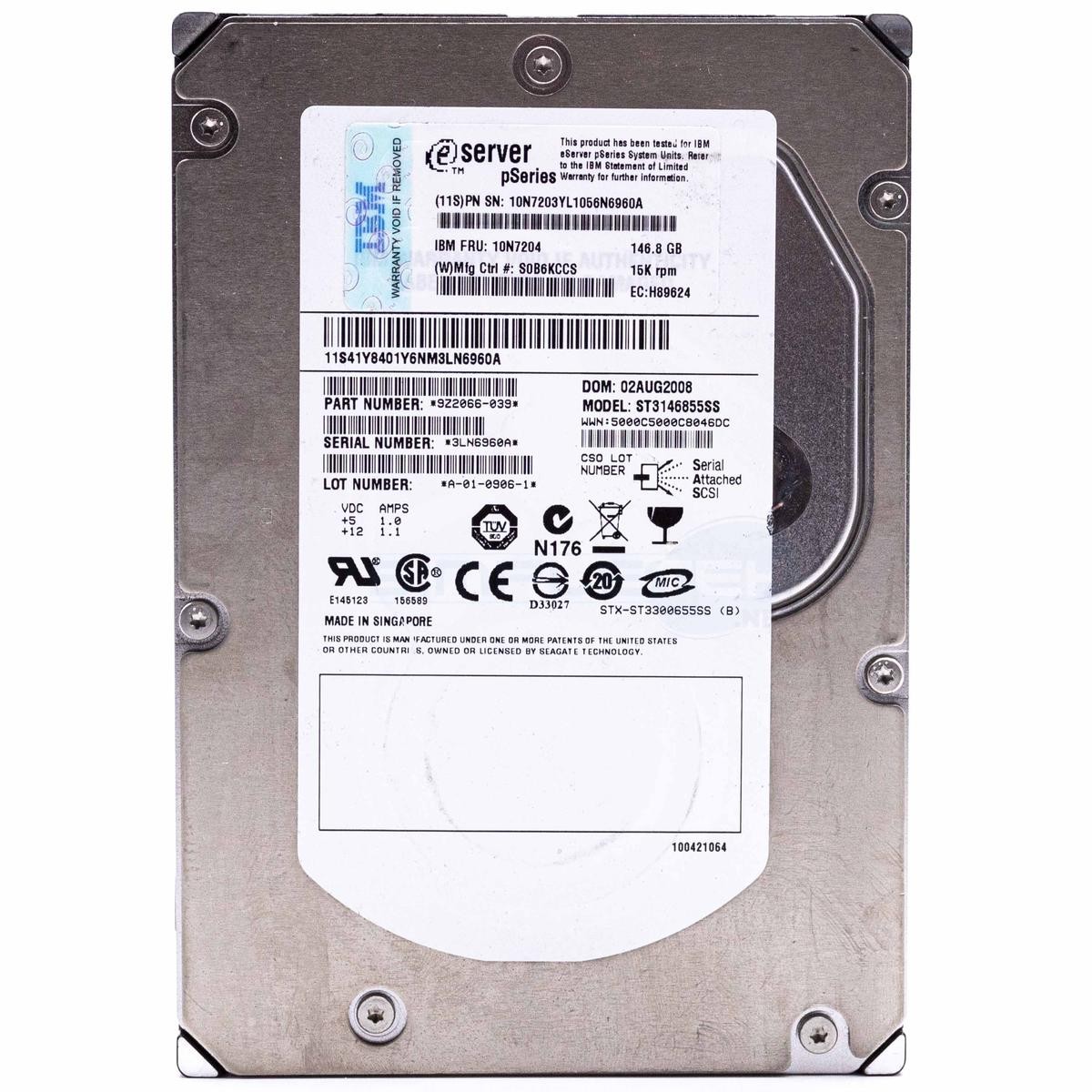

Seagate ST3146855SS HDD 3.5" SAS Hard Disk Server 146.8GB 15K RPM DriveThe description of this item has been automatically translated. If you have any questions, please feel free to contact us.
Seagate St3146855ss Hdd 3.5" Sas Hard Disk Server 146.8gb 15k Rpm Refurbished
Simpletek code 10102
Grade A Refurbished Possible presence of purely aesthetic defects, which do not affect use, such as small pixel defects (ISO-9241-3xx standards), microscratches on the body/screen and/or other defects not visible more than 30cm from the object resulting from wear of the object over time; the hardware is however tested, working and guaranteed (see product condition details)
General Information
Capacity: 146.8GB
Form Factor: 3.5"
Warranty: 12 months (Simpletek)
Purchase invoice: must be requested at the same time as the order and will be sent via email. In the absence of billing data, a receipt will be issued which cannot be cancelled.
Description CHARACTERISTICS Model: ST3146855SS
Model Name: Cheetah 15K.5
Form Factor (width): 3.5 inches
Form Factor (height): 1 inch Physical Specifications: Height: 25.4mm
Length: 101.6mm
Length: 146.05 mm
Weight: 0.68kg Capability/Interface: Formatted Capacity: 146 GB Performance: Internal Transfer Rate (min/max): 685 Mbits/sec / 1.142 Mbits/sec
Formatted Internal Transfer Rate (min/max): 85.6 MBytes/sec / 142.7 MBytes/sec
External Transfer Rate (max): 300 MBytes/sec
Average Search Time, Read/Write: 3.5 msec / 4 msec
Track-to-Track Seek Time, Read/Write: 0.2 msec / 0.4 msec
Full Disc Search Time, Read/Write: 7.4 msec / 7.9 msec
Medium Latency: 2 msec
Default Cache Size: 16,384 Kbytes
Rotation Speed: 15,000 RPM
Spinup Time: 20 seconds
Ready Power-Up Time: 3 seconds Configuration: Number of Disks (physical): 4
Number of Heads (physical): 8
Total Cylinders: 50,864
Total Tracks: 406,912
Bytes per Sector: 512
Trace Density (TPI): 85,000 tracks/inch
Recording Density (BPI, max): 628,000 bits/inch
Bytes/Trace (average): 471,916 Electrical Requirements: Typical Current (12VDC +/- 5%): 1.17 amps
Starting Current (12VDC +/- 5%): 2.86 amps
Typical Current (5VDC +/- 5%): 1.12 amps
Starting Current (5VDC +/- 5%): 1.7 amps
Standby consumption (typical): 14.34 watts Environmental Specifications: Maximum Shock in Operation (2 msec): 65 Gs
Maximum Non-Operating Shock (2 msec): 250 Gs
Vibration in Operation (maximum): 0.5 Gs
Vibration not in Operation (maximum): 2 Gs
Operating Temperature (maximum/minimum): 55°C / 5°C
Non-Operating Temperature (maximum/minimum): 70°C / -40°C
Operating Temperature Variation (maximum): 20°C/hr
Non-Operating Temperature Variation (maximum): 20°C/hr
Operating Humidity (maximum): 95 percent
Non-Operating Humidity (maximum): 95 percent
Operating Humidity Variation (maximum): 20 percent for now
Operating Wet Bulb Temperature (maximum): 28°C Reliability: MTBF (hours): 1,400,000 hours
Recoverable Reading Errors: 10 for 10^12 bits read
Non-Recoverable Reading Errors: 1 for 10^15 bits read
Search Errors: 10 for 10^8 bits read
Supports SMART: Yes
