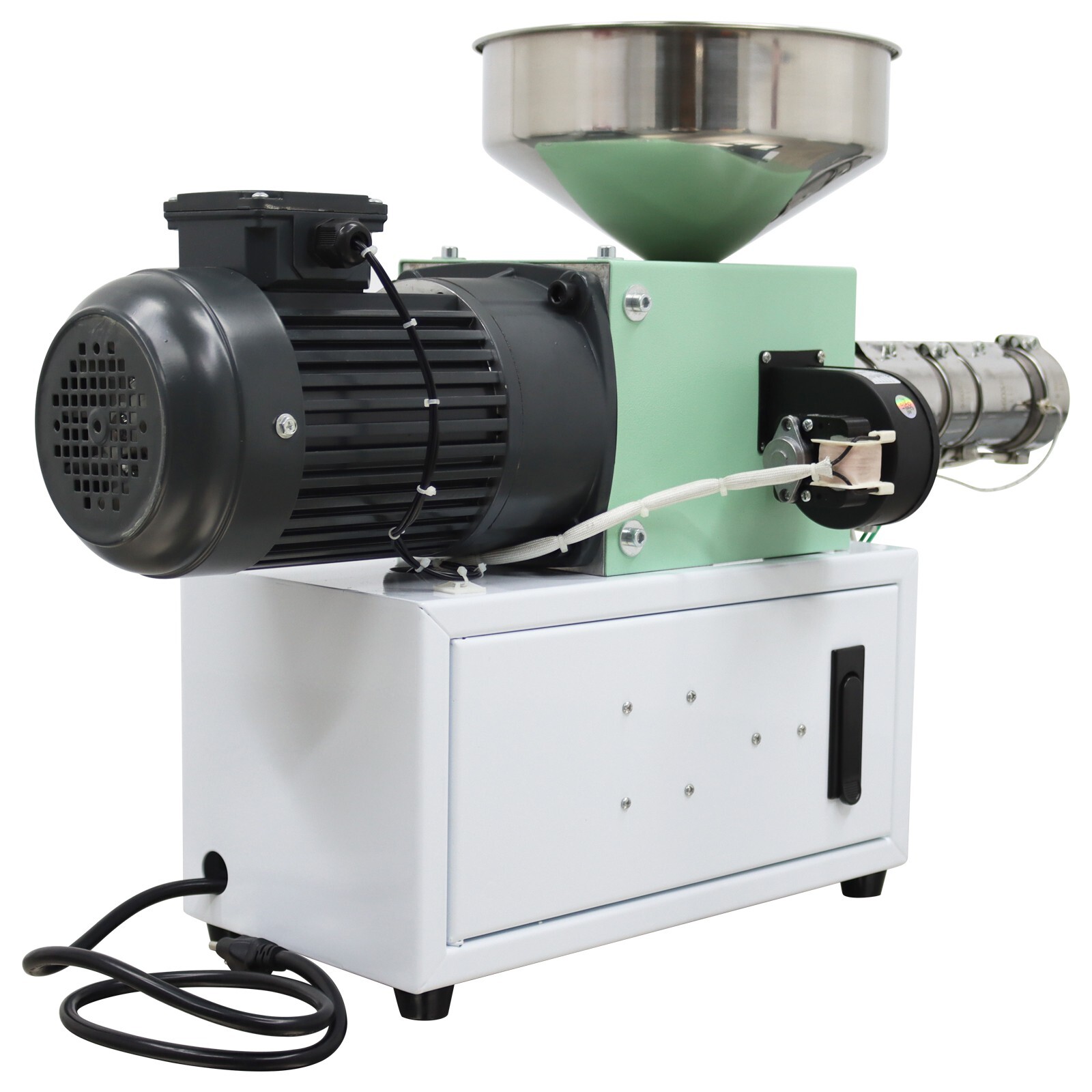

Single Screw Extruder

This machine is the mother-machine-tool for plastic extrusion processing. It needs other auxiliary equipment, such as moulds, cooling,hauling machine. winding or cutting machine to finish the plastic products processing.

It can realize the functions of heating and extruding out of plastic raw-materials.

Suitable for extrusion production of PEEK, PCL, ABS, PLA, PETG, TPU,TPE and other common 3D printing consumables.

Parameters：
Screw diameter 1.37inch（35mm） LD 13:1 Work center level 11.8inch（300mm） Speed 0-25 r/min Motor Power 400W heating power 800W Voltage 110V Maximum output capacity 0.1-5kg/h

Features:

1. Temperature of barrel heating and temperature of feed cooling are adjustable.
2. The speed can be adjusted.
3. Stainless steel funnel.

NOTE:

It is forofferden to touch the heating area and screw cylinder with hands during the use of this equipment. For maintenance, it is required to cut-off the power and pay attention to safety.

Item Number:239941
