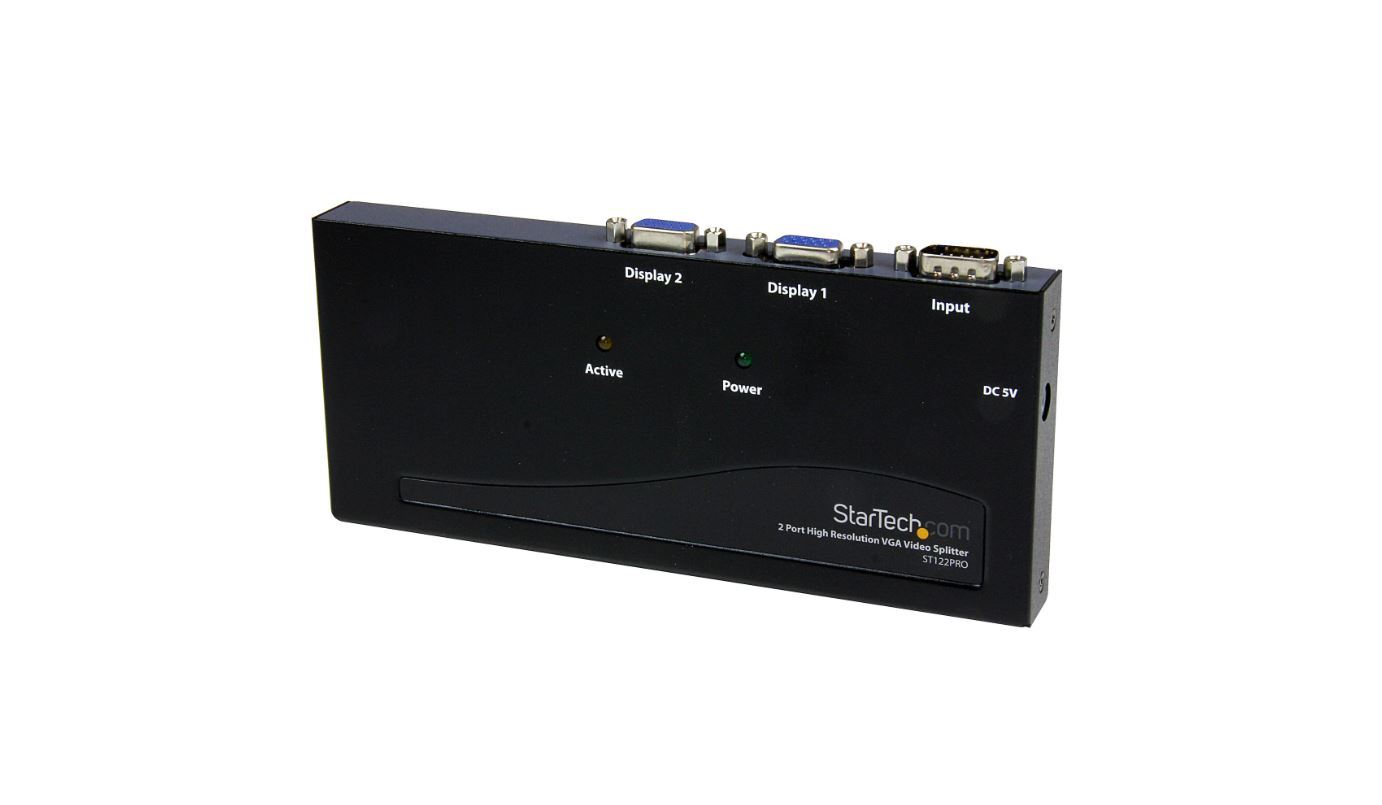

The ST122PRO 2 Port High Resolution VGA Video Splitter - 350 MHz splits a VGA video source signal to 2 monitors or projectors simultaneously - a professional grade solution that is perfect for presentations, classrooms, tradeshows, or in-store displays, where the highest quality video on several monitors is needed.
This High Resolution VGA Splitter supports monitors with up to 350MHz of video bandwidth and display resolutions up to 2048x1536 @80Hz. For added versatility, the VGA splitter features an integrated booster circuit that allows the video signal to be extended up to 210 feet (65 meters), enabling you to situate your displays in the most convenient location based on your application.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Male to Female VGA extension cable required (MXT101HQ)
Applications
- Create engaging multimedia presentations for demonstration in lecture halls and classrooms
- Display travel schedules and alerts in airports, bus terminals and train stations etc.
- Create eye-catching displays in trade-shows and auditoriums
- Use for in-store product merchandising in retail environments to give your advertisements greater visibility
- Get your message across multiple displays for trade-shows or information booths/kiosks
- Quick and easy solution to split a video signal in an auditorium or house of worship
The StarTech.com Advantage
- An integrated signal amplifier boosts your connection range to 210 feet (65 meters)
- High quality construction and high resolution support maintains signal strength for crisp, sharp imaging
- Multiple screens let you broadcast your message to large audiences with greater impact
Partner NumbersTech Data11200354A.B. Distributing, Micro USA81473SYNNEX USSTA-ST122PROUPC065030785594
Specifications
Connector(s)
Connector Type(s)
2 - VGA (15 pin, High Density D-Sub)
1 - VGA (15 pin, High Density D-Sub)
Environmental
Operating Temperature
0 to 40 °C
Storage Temperature
5 to 40 °C
Humidity
0~80% RH Non-condensing
Hardware
Ports
2
Audio
No
Regulatory Approvals
FCC Part 15 Class A, CE Mark
Industry Standards
DDC compatible - all other monitors must be able to support the highest video resolution of the DDC-type monitor connected to Video Out 1
Performance
Maximum Cable Length
213.2 ft [65 m]
Maximum Analog Resolutions
2048x1536 @ 80Hz
Bandwidth
(-3db): 350 MHz
MTBF
1,588,136 Hours
General Specifications
Male to Female VGA extension cable required (MXT101HQ)
Physical Characteristics
Weight of Product
12.9 oz [366 g]
Color
Black
Material
Steel
Product Length
7.1 in [18 cm]
Product Width
3.1 in [80 mm]
Product Height
0.8 in [2.1 cm]
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
0.3 A
Output Voltage
5 DC
Output Current
1 A
Plug Type
N
Power Consumption (In Watts)
5
What's in the Box
Included in Package
1 - 2 Port High Res. Video Splitter
1 - Power Adapter
