StarTech 2-Port PCI Express Serial Card StarTech 2-Port PCI Express Serial Card

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: Two-port PCIe Serial Card 2 x Low-Profile Brackets 1 x Quick-Start Guide

Environmentally Friendly: Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: Taiwan

Product Description

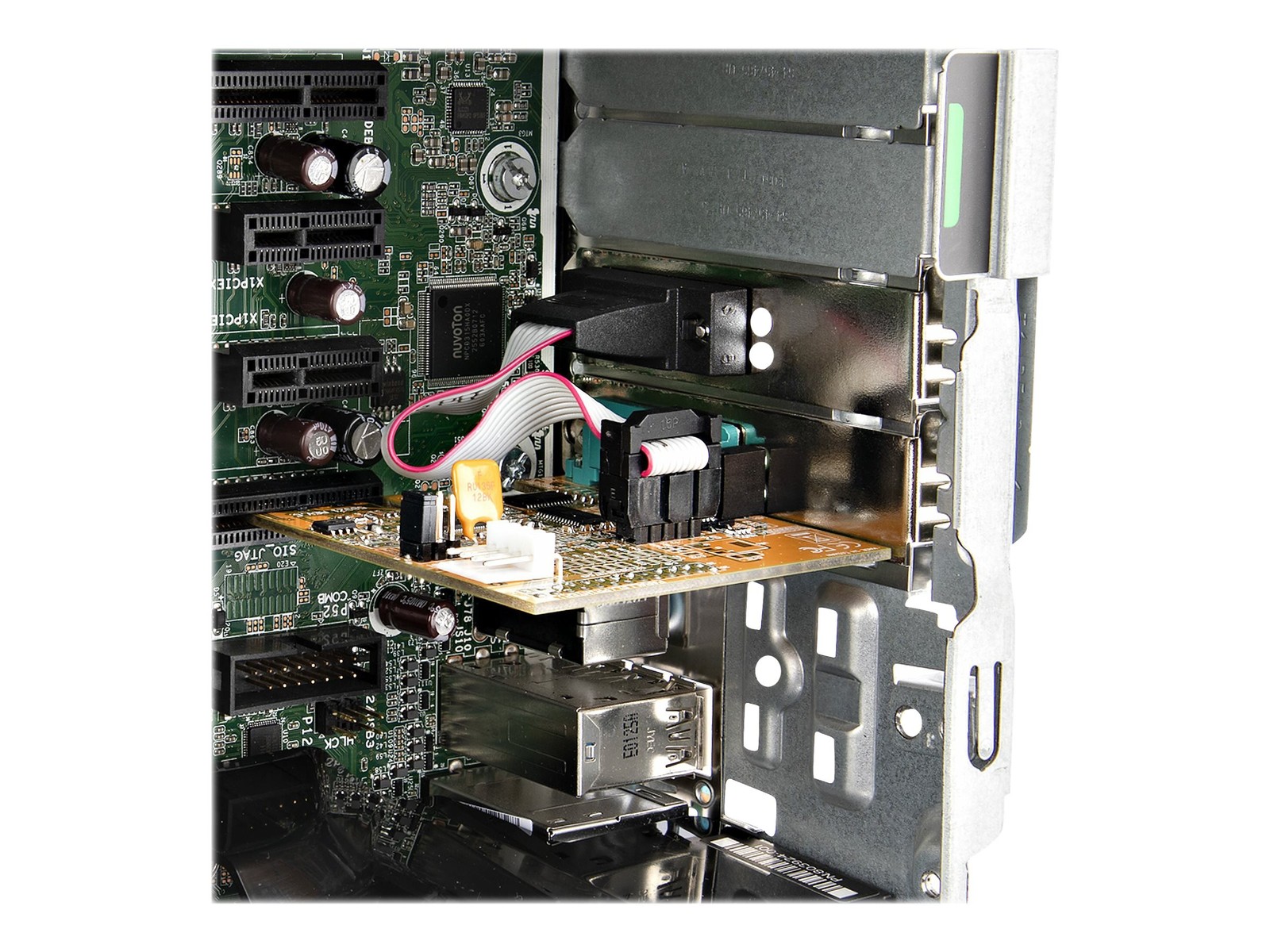

This item is brand-new, factory 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Standard/Low Profile Brackets, COM Retention, for Windows/Linux (21050-PC-SERIAL-CARD)

• PCIE TO SERIAL: Connect serial RS232 (DB9) devices to a computer with this PC serial card. Features support for high performance 16C1050 UART on both DB9 male ports. Monitor activity with the built-in LED status lights on the PCI express DB9 card
• DEVICE COMPATIBILITY: Use this serial interface card to connect barcode readers/scanners, receipt printers, scales, PLCs, medical devices, etc. The UART PCIe card supplies 5V or 12V power over pin 9. Low-profile brackets are included
• APPLICATIONS: This card is ideal for IT applications such as server rooms, industrial control/automation, logistics, and laboratories. Continue using legacy hardware with this RS232 PCIe card. DB9 ports accept screw locking serial cables
• DUAL SERIAL PORT CARD SPECS: 16C1050 UART | Max Baud 921.6 Kbps per Port | 256 Byte FIFO | COM Retention | Supports Windows and Linux | Asix AX99100 Chipset | Odd/Even/Mark/Space/None Parity Modes | 5/6/7/8/9 Data Bits | PCIe 2.0 x1 | Low-profile Brackets
• THE IT PRO'S CHOICE: Designed and built for IT Professionals, this PCIe to RS232 card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance

• Brand: StarTech
• Item model number: 21050-PC-SERIAL-CARD
• Operating System: Linux 2.6.13 and older. LTS Versions Only, Windows 7, 8, 8.1, 10, 11, Windows Server 2016, 2019
• Item Weight: 0.16 ounces
• Product Dimensions: 2.6 x 2.6 x 0.7 inches
• Item Dimensions LxWxH: 2.6 x 2.6 x 0.7 inches
• Color: Yellow
• Manufacturer: STARTECH.COM

2-PORT PCI EXPRESS SERIAL CARD, DUAL PORT PCIE TO RS232 (DB9) SERIAL CARD, 16C10

Package Contents:

• Two-port PCIe Serial Card
• 2 x Low-Profile Brackets
• 1 x Quick-Start Guide

SpecificationPhysical CharacteristicsForm FactorPlug-in CardWeight (Approximate)0 ozCard Warranty Information 2-years by , including free lifetime 24/5 multi-lingual technical assistance. Limited Warranty2 YearInterfaces/PortsNumber of Serial Ports (External)2General InformationBrand Name
