StarTech 2-Port Serial PCIe Card StarTech 2-Port Serial PCIe Card
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: 2-Port Serial Card 2 x Low-Profile Bracket 1 x Ribbon Cable 1 x Quick-Start Guide
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Product Description
This item is brand-new, factory sealed.

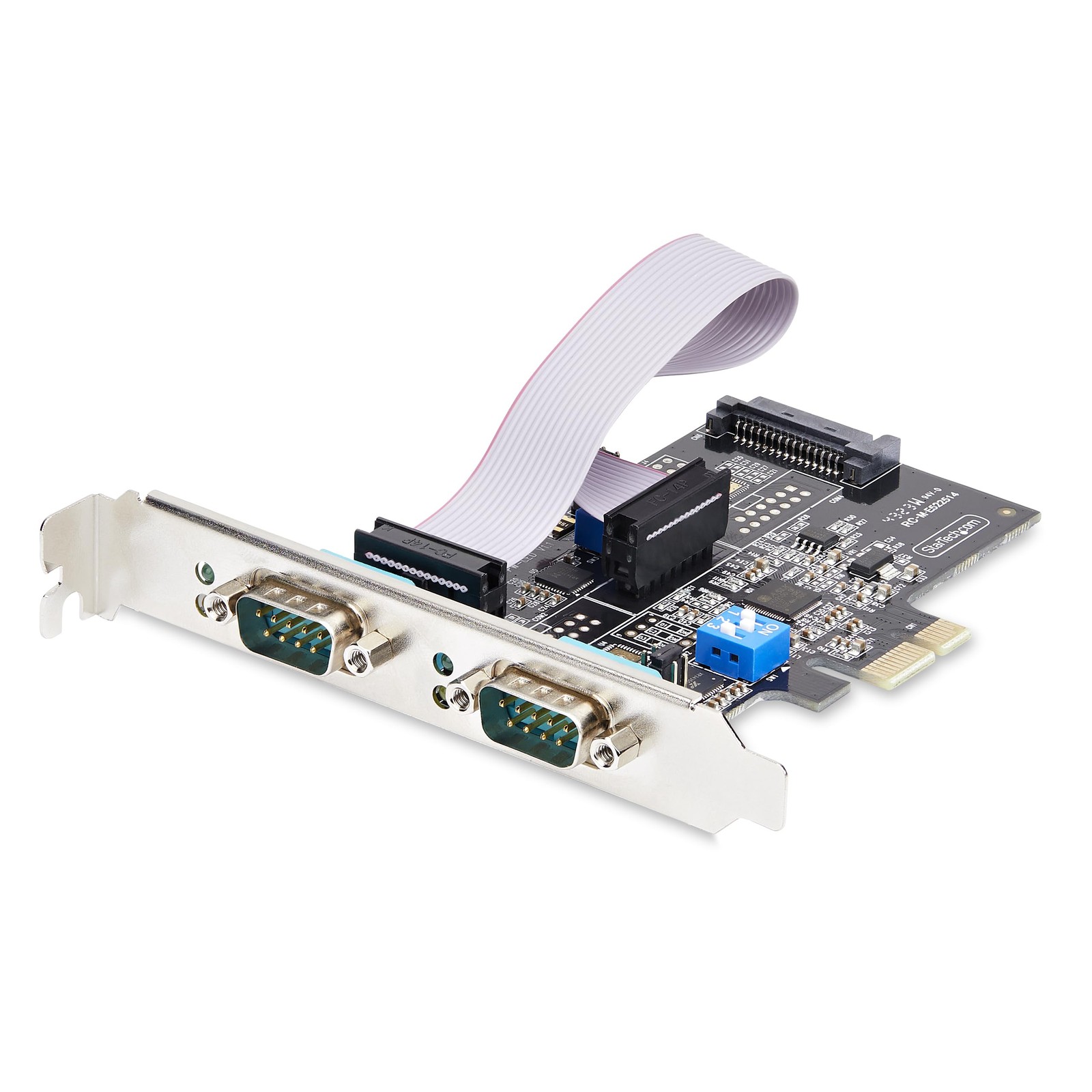

Add serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 2-Port Serial PCI Express Card. The two DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices.
Per-Port Serial Configuration
This PCIe Serial Card is equipped with on-board DIP switches, enabling each DB9 serial port to operate in RS-232, RS-422, and/or RS-485 mode(s). The card features LED indicators per port, providing real-time monitoring of port activity.
Configurable External SATA Power
The PCI Express Serial Adapter Card features three power modes that are configurable via on-board jumpers, including 12V (1.5A per port), 5V (1.5A per port), or no power (RI), over pin 9.
Legacy Connectivity
This serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-Port PCIe Serial Card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes).
Package Contents:
- 2-Port Serial Card
- 2 x Low-Profile Bracket
- 1 x Ribbon Cable
- 1 x Quick-Start Guide
SpecificationPhysical CharacteristicsForm FactorPlug-in CardWeight (Approximate)2.01 ozProduct Warranty2 YearInterfaces/PortsNumber of Serial Ports (External)2General InformationBrand Name
