OVERVIEW:

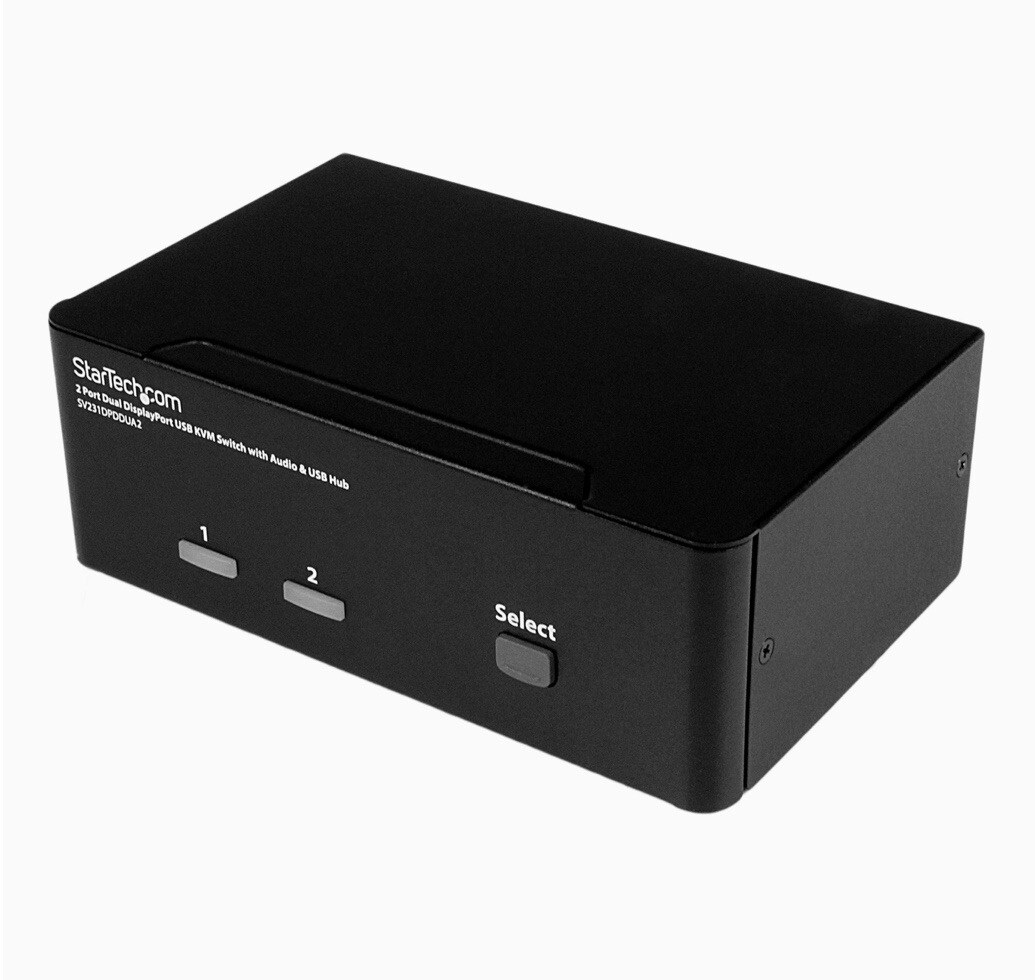

This dual DisplayPort KVM switch combines next-generation digital display standards with seamless KVM control. The 2-port KVM switch features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head or twin DisplayPort systems.
Maximize productivity with dual video
With support for two DisplayPort video inputs and two different computers, this KVM switch helps maximize productivity.You can access multiple computers, giving you the freedom to multitask and increase your productivity. Each of the DP ports supports resolutions up to 4K for maximum screen viewing space.
You can also use low-cost adapters to achieve a dual-monitor setup using your computer's secondary HDMI or DVI port.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to Ultra HD 4K at 60Hz, and can drive two large DP displays with ease. This makes it the ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Complete multimedia control
The KVM switch features auxiliary 3.5 mm audio ports that let you share independent analog audio, from each of your connected computers, with your desktop speaker set. With independent audio support, along with dual 4K DP video, you get full multimedia control between different computers which makes this the perfect KVM switch for creative professional applications such as video and sound design or editing.
Convenient peripheral sharing
This KVM switch offers a built-in 2-port USB hub that's separate from your HID keyboard and mouse. This enables you to share USB peripherals between each connected computer and avoid the expense of separate equipment. The USB hub automatically switches your connected USB devices to the selected computer, saving you the hassle and cost of outfitting each of your computers with their own peripherals.
Applications
Control two computers, each with dual-head video cards, from a single workstation
Work with multimedia applications such as 4K video and photo editing
Operate multiple computers in manufacturing lines
Install in your server room, for multi-computer access
Perform high-resolution tasks such as graphic design or CAD drawing
USB Type-A (4 pin) USB 2.0
2 - Console Interface(s)
DisplayPort (20 pin)
3.5 mm Mini-Jack (3 Position)
2 - Host Connectors
USB B (4 pin)
4 - Host Connectors
DisplayPort (20 pin)
3.5 mm Mini-Jack (3 Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 50°C (-4°F to 140°F)
Humidity
0~80% Ports
2
PC Interface
USB
PC Video Type
DisplayPort
Number of Monitors - LED Indicators
computer LEDs
Packaging Information
Package Height
3.8 in [97.0 mm]
Package Length
9.8 in [24.9 cm]
Shipping (Package) Weight
2.6 lb [1.2 kg]
Package Width
7.3 in [18.6 cm]
Performance
On-Screen Display
No
DVI Support
No
IP Control
No
Hot-Key Selection
Yes
Maximum Digital Resolutions
3840 x 2160 (Ultra HD 4K) @ 60hz
Supported (High-definition 720p)
1920x1080 (High-definition x 2160 (4K)@ 60hz
Aspect Ratio
16:9
Wide Screen Supported
Yes
Maximum Number of Users
1
Port Selection Support
Push Button and Hotkeys
MTBF
138000 hours
Physical Characteristics
Product Length
3.9 in [100.0 mm]
Weight of Product
25.9 oz [734.0 Width
6.3 in [16.1 cm]
Product Height
2.3 in [57.6 mm]
Product Depth
3.9 in [100 mm]
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
0.6 A
Output Voltage
12V DC
Output Current
1.5 A
Center Tip in the Box
1 - Included in Package
KVM switch
universal power adapter (NA/JP, EU, UK, ANZ)
4 - Included in Package
rubber feet
1 - Included in Package
instruction manual
