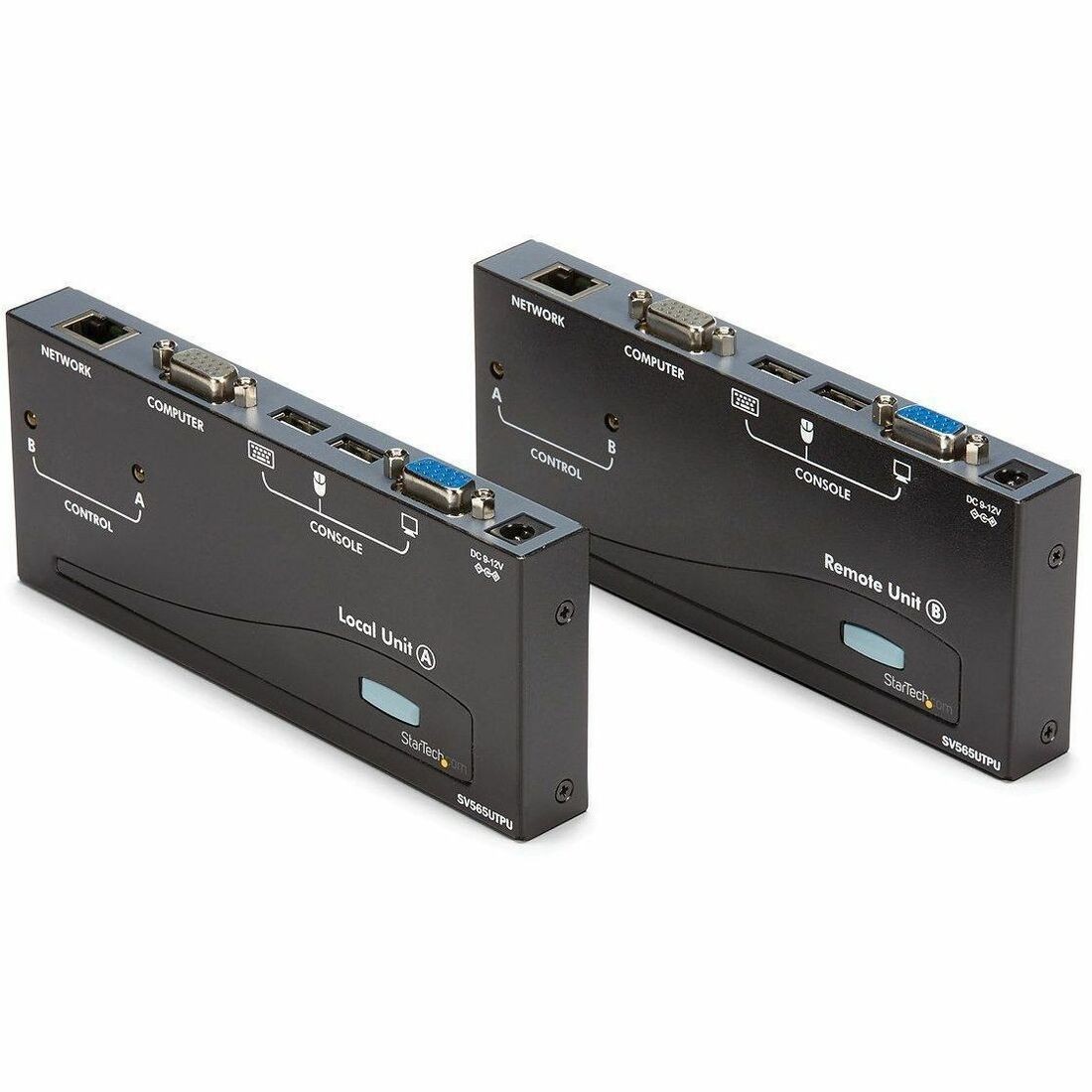

StarTech USB VGA KVM Console Extender over CAT5 UTP (500 ft) (SV565UTPU) StarTech USB VGA KVM Console Extender over CAT5 UTP (500 ft) (SV565UTPU)
International Customers: All electronic products are packaged for sale in the US with US voltage.
End of Life Manual Availability: Yes
WEEE Statement: RoHS Declaration URL: Contents: USB VGA KVM Console/Extender 2 x 6 ft 2-in-1 USB VGA KVM Cables 8 x Rubber Feet 1 x Power Adapter 1 x Instuction Manual
Environmental Certification: EU RoHS
TAA Compliant: Yes
Environmentally Friendly: Yes
REACH Declaration URL: free of SVHC: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
This USB VGA KVM Console Extender lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500ft away.You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.Designed to provide long lasting, reliable operation, the USB VGA Console Extender is backed by StarTech.coms one year warranty.FeaturesCan be used with a single computer or connected to an existing KVM switchEasy installation using industry-standard UTP network cableIntuitive hotkey commandsSupports auto-switching between host and remote users or dedicated controlUSB computers are supported at the host and remote locations (USB keyboard and mouse required for remote console)ApplicationsMonitor computer-controlled equipment in a factory or warehouseUse one or more servers in a server room from a remote locationControl remote machines and security monitoring systemsTechnical SpecificationsWarranty : 1 Year warrantyColor : BlackInput Voltage : 115 ACOutput Current : 600mAPlug Type : MPower Adapter Included : YesPower Adapter - Amperage : 0.6Power Adapter - DC Voltage : 9 (DC)Center Tip Polarity : Positive SpecificationPower DescriptionInput Voltage Range110V AC to 240V ACInput Voltage
Power Consumption5.40 WPhysical CharacteristicsForm FactorDesktopTransmitter Weight (Approximate)1.32 lbReceiver Width6.10"Receiver Height0.80"Transmitter Length3"Receiver Length3"Product ColorBlackReceiver Weight (Approximate)1.32 lbColor FamilyBlackTransmitter Height0.80"Transmitter Width6.10"WarrantyAdditional Warranty InformationThis product is TAA compliant and backed by a 2-year warranty with free lifetime technical support.Limited Warranty2 YearInterfaces/PortsVGAYesNumber of USB Ports4Network (RJ-45)YesUSBYesNumber of VGA Ports4Number of Network (RJ-45) Ports2VideoMaximum Video Resolution1024 x 768Graphic ModeXGAGeneral InformationBrand Name
