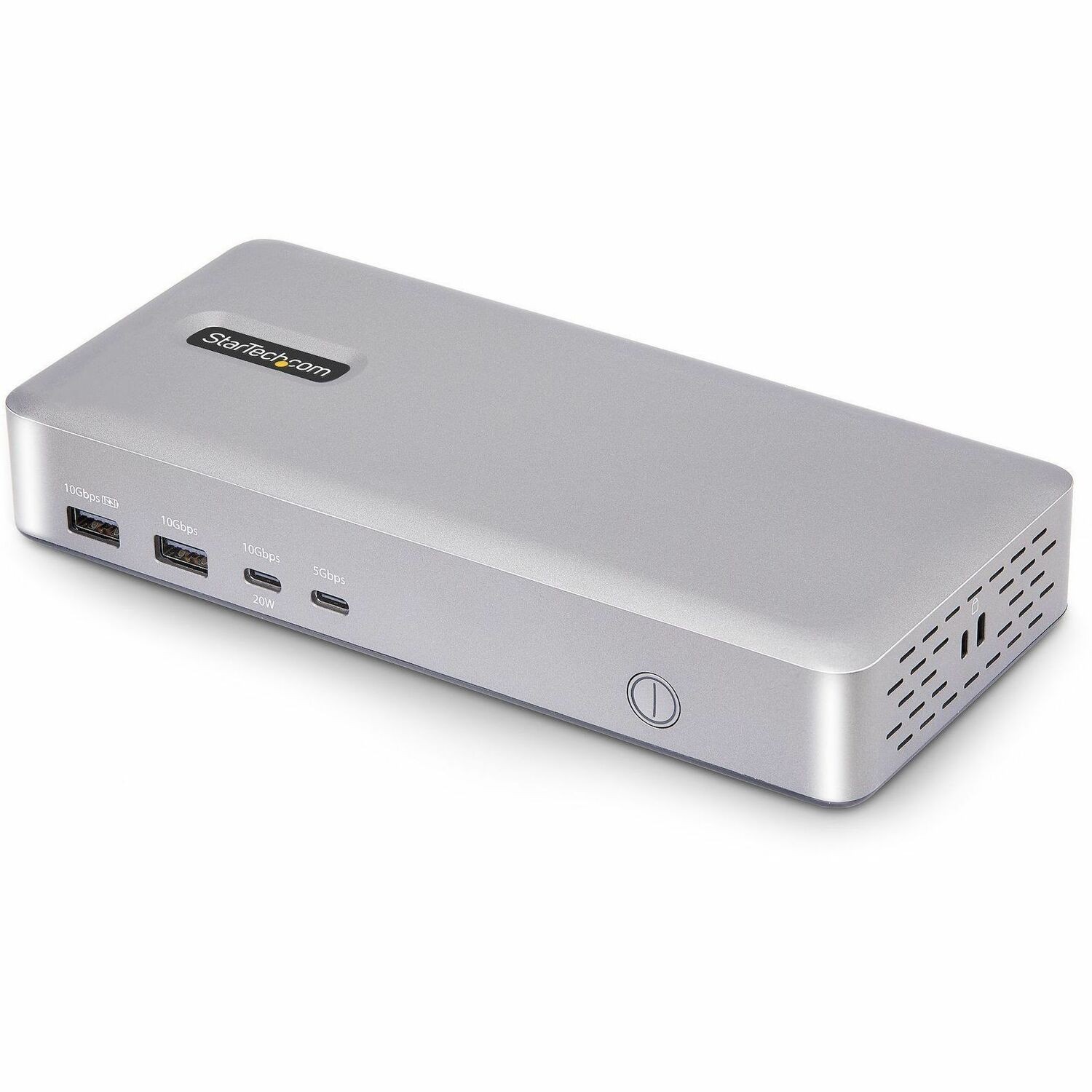

StarTech USB4 Docking Station StarTech USB4 Docking Station

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: 155NA-USB4-DOCK 1 x 3 ft [1 m] USB4 Host Cable 1 x Universal Power Adapter (North America) 1 x Quick-Start Guide

Compatibility: Compatible Devices: Thunderbolt 4 Notebooks USB4 Notebooks

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)

Kensington Security Slot: Yes

Product Description

This item is brand-new, factory sealed.

This USB4 (USB-C 4Gbps) docking station uses a single USB4 or Thunderbolt port on a host computer to add high-performance connectivity while charging the laptop.

Flexible High-Performance Video

The dock is equipped with 2x HDMI 2.1 video outputs for connecting dual monitors to the host computer. The dock supports can support dual-monitors with support for resolutions up dual 4K 60Hz at 4:4:4 (RGB) or dual 4K 120Hz at 4:2:2. A single display workstation is also supported at resolutions up to 8K 30Hz 4:4:4 (RGB) or 8K 60Hz at 4:2:2.

Port Connectivity

The docking station utilizes the high 40Gbps throughput available from a Thunderbolt 4/3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications.

The dock features:

• 2x HDMI ports to connect displays.
• 6x USB Hub (2x 10Gbps USB Type-A, 2x USB Type-A 5Gbps, 1x USB Type-C 10Gbps, 1x USB-C 5Gbps) to connect USB peripheral devices.
• 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN)

100W USB Power Delivery Certified

Includes a 180W power adapter and supports 100W USB power delivery. This enables the dock to charge the laptop, with enough additional power for all downstream ports. The 6-Port USB hub includes a 20W downstream USB-C Power Delivery port and a 7.5W BC 1.2 Downstream Charging Port (DCP) for charging tablets, smartphones or other battery-powered USB devices.

Enhance Productivity and Device Management with the Connectivity Tools App

Developed to improve performance and security, Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software includes:

• Advanced Windows Layout Utility: To setup and save custom windows layouts.
• Mac Address Pass-Through Utility: To improve network security.
• USB Event Monitoring Utility: To track and log connected USB devices
• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the Connectivity Tools application, please visit: Package Contents:

• 155NA-USB4-DOCK
• 1 x 3 ft [1 m] USB4 Host Cable
• 1 x Universal Power Adapter (North America)
• 1 x Quick-Start Guide

SpecificationPower DescriptionMaximum Power Supply Wattage180 WPower Source TypePower AdapterPhysical CharacteristicsForm FactorDesktopWeight (Approximate)4.90 ozLength3.8"Product ColorSpace GrayHeight1.30"Color Warranty3 YearInterfaces/PortsUSB Power Delivery100WNumber of USB Type-A Ports4USB Type-C Detail1 x USB Type-C 10Gbps, 1x USB-C 5GbpsNumber of HDMI Outputs2Number of RJ-45 Ports1Number of USB Type-C Ports2Total Number of USB Ports6Number of USB 3.2 Gen 2 Type-A Ports2USB Type-CYesNetwork (RJ-45)YesHDMI Version2.1Host InterfaceUSB4USB Type-AYesHDMIYesThunderboltYesNumber of USB 3.2 Gen 1 Type-A Ports1General InformationBrand Name
