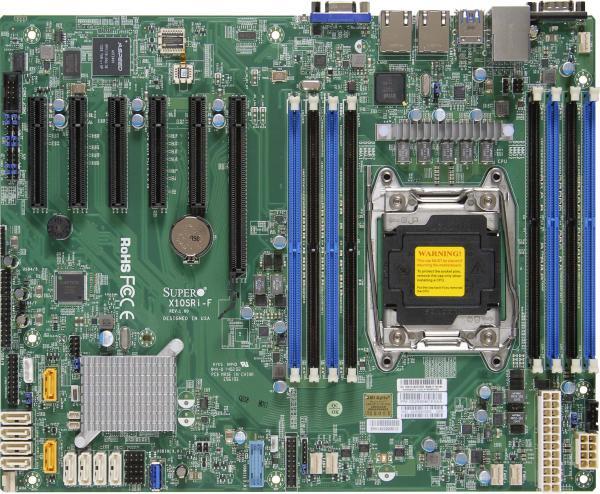

Supermicro X10SRi-F Intel C612 Chipset Single Socket R3 Server Motherboard

MBD-X10SRi-F

·X10SRi-F

Physical Stats

Form Factor

·ATX

Dimensions

·12" x 9.6" (30.48cm x 24.38cm)

Processor/Cache

CPU

·Intel® Xeon® Processor E5-1600 v3, Intel® Xeon® Processor E5-1600 v4, Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4

·Single Socket LGA-2011-3 (Socket R3) supported, CPU TDP supports Up to 145W TDP

Cores / Cache

·Up to 22 cores † / Up to 55MB† cache

Note

·† BIOS version 2.0 or above is required

Note

·** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System Memory

Memory Capacity

·Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 8 DIMM slots

Memory Type

·2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

·RDIMM: 4GB, 8GB, 16GB, 32GB

·LRDIMM: 32GB, 64GB

·3DS LRDIMM: 128GB

Memory Voltage

·1.2V

Error Detection

·Corrects single-bit errors

·Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset

·Intel® C612

SATA

·Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

·Support for Intelligent Platform Management Interface v.2.0

·IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

·ASPEED AST2400 BMC

Network Controllers

·Dual LAN with Intel® Ethernet Controller I350-AM2Supports 1GbE, RJ45 output
Realtek RTL8211E PHY (dedicated IPMI)

Graphics

·ASPEED AST2400 BMC

Input / Output

SATA

·10 SATA3 (6Gbps) port

LAN

·2 RJ45 Gigabit Ethernet LAN ports

·1 RJ45 Dedicated IPMI LAN port

USB

·8 USB 2.0 ports (2 rear + 6 via headers)

·4 USB 3.2 Gen1 ports (2 rear + 1 via header + 1 Type A)

Video Output

·1 VGA port

Serial Port / Header

·2 COM Ports (1 rear, 1 header)
2 fast UART 16550 serial

TPM

·TPM Header

Expansion Slots

PCI-E

·1 PCI-E 3.0 x16,

·1 PCI-E 3.0 x4 (in x8 slot),

·2 PCI-E 3.0 x8

·1 PCI-E 2.0 x4 (in x8 slot)

·1 PCI-E 2.0 x2 (in x8 style="vertical-align: top">PC Health Monitoring

Voltage

·+12V, +3.3V, +5V, +5V standby, HT, VBAT

Temperature

·Monitoring for CPU and chassis environment, CPU thermal trip support, I2C temperature sensing logic, Thermal Monitor 2 (TM2) support, PECI

LED

·CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID

Other Features

·Chassis intrusion detection, Chassis intrusion header, Chipkill support, RoHS, Halogen Free

Operating Environment

Operating Temperature Range

·0°C ~ 60°C (32°F ~ 140°F)

Non-Operating Temperature Range

·-20°C ~ 60°C (-4°F ~ 140°F)

Operating Relative Humidity Range

·10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range

·10% ~ 95% (non-condensing)
