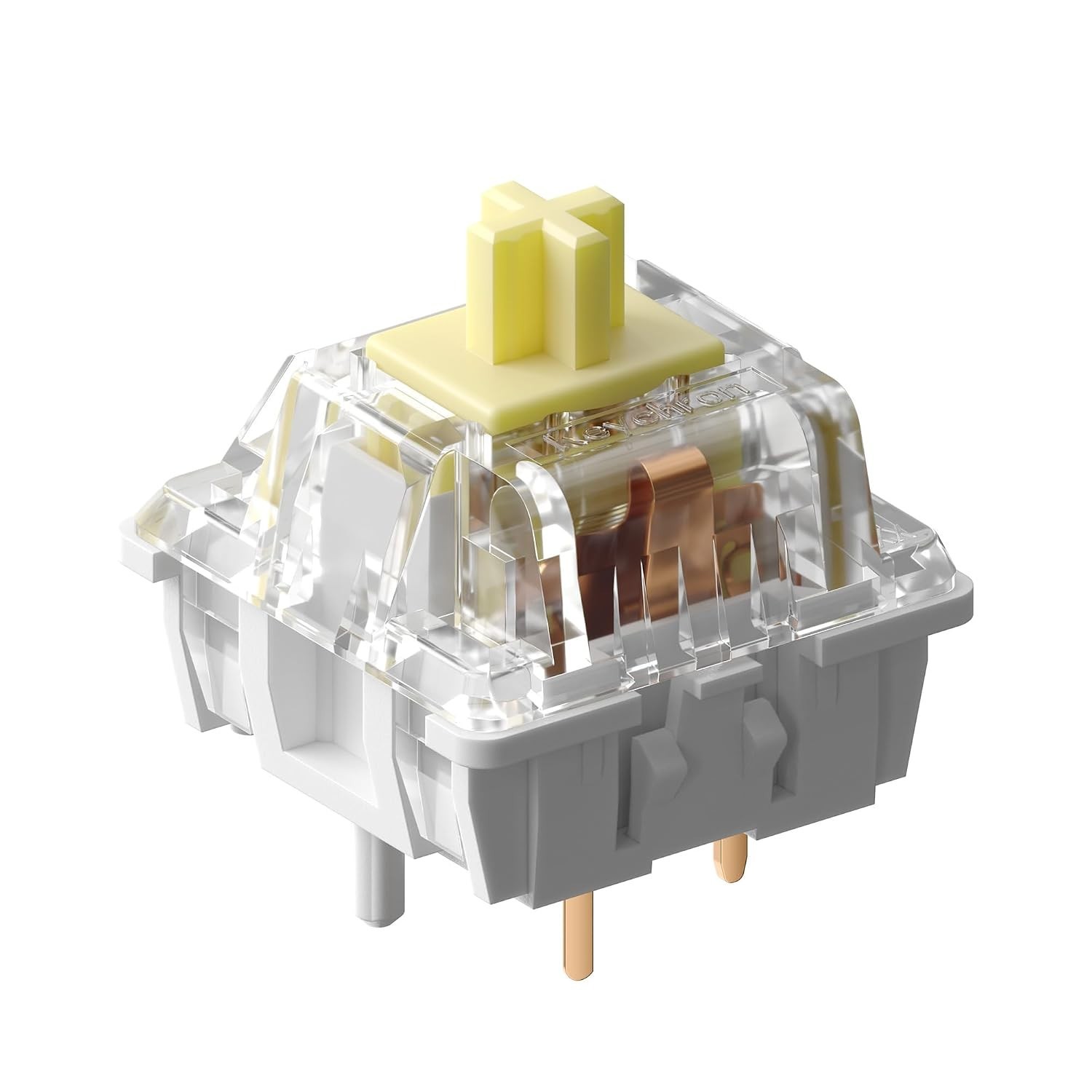

Product Overview

Upgrade a compatible mechanical keyboard with this 110-piece Banana tactile mechanical keyboard switch set. Designed for gaming, office, and custom keyboard applications, these 5-pin hot-swappable key switches feature factory pre-lubrication, a 57±8 gf actuation force, a double-stage spring, and a crisp top-tactile feel.

The reinforced 5-pin PCB mount is designed for improved switch stability, while the mini air-release hole in the bottom housing helps reduce resistance for a more responsive tactile feel. A transparent top housing with a redesigned light guide structure supports brighter and more even RGB illumination on compatible keyboards.

Key Features & Benefits

• 110 Pieces Per Set: Includes 110 Banana tactile switches, providing enough switches for most full-size, TKL, or compact keyboard layouts with extras for replacement or future use.
• 5-Pin PCB Mount Design: The reinforced 5-pin structure is designed to improve keyboard switch stability and durability.
• 5-Pin & 3-Pin Socket Support: Designed for compatible 5-pin or 3-pin sockets; the 5-pin switches can fit 3-pin sockets after clipping the alignment legs.
• MX-Style Stem: The MX-style stem fits most compatible keycaps.
• Factory Pre-Lubed: Pre-lubrication helps reduce friction for smoother keystrokes.
• Crisp Top-Tactile Feel: The Banana switch design provides a sharp tactile response intended for a responsive typing experience.
• 57±8 gf Actuation Force: Designed with a specified 57±8 gf actuation force for a defined keystroke response.
• 2.0 mm Pre-Travel: Features 2.0 mm pre-travel for a responsive switch operation.
• 3.4 mm Total Travel: Provides 3.4 mm total travel for the full switch movement.
• Double-Stage Spring: The double-stage spring provides stronger rebound and improved typing stability.
• Long Switch Lifespan: Rated for a lifespan of up to 50 million keystrokes.
• Mini Air-Release Hole: The bottom housing includes a mini air-release hole designed to reduce resistance and support a more responsive tactile feel.
• Optimized Light Diffusion: The transparent top housing features a redesigned light guide structure for higher light transmittance.
• RGB Illumination: The light guide structure is designed to provide brighter, more even RGB lighting across a compatible keyboard.
• Gaming & Office Use: Suitable for compatible gaming keyboards, office keyboards, and custom mechanical keyboard builds.

SpecificationsProduct TypeMechanical Keyboard Key SwitchSwitch TypeBanana Tactile Key SwitchQuantity110 PiecesActuation Force57±8 gfPre-Travel2.0 mmTotal Travel3.4 mmSpringDouble-Stage SpringLubricationFactory Pre-LubedPin Configuration5-PinMounting TypePCB MountStem TypeMX-StyleMaterialPlasticContact TypeNormally OpenOperation ModeManualConnector TypeCrimpTerminalThrough HoleCircuit Type1-WayItem Dimensions4.25 x 2.91 x 2.83 inchesKeyboard Compatibility

These 5-pin mechanical keyboard switches are compatible with supported hot-swappable keyboards, including Keychron normal-profile models. They are designed to work with compatible 5-pin or 3-pin sockets, with the alignment legs clipped when installing into a 3-pin socket. The MX-style stem fits most compatible keycaps.

Not compatible with optical, magnetic, or low-profile keyboards. Always verify the keyboard switch socket and profile requirements before installation.

Tactile Performance & RGB Lighting

The Banana tactile switch combines factory pre-lubrication with a double-stage spring and a 57±8 gf actuation force for crisp tactile response. The transparent top housing and optimized light guide structure provide higher light transmittance for brighter and more even RGB illumination on compatible keyboards.

Shipping Notice

Please verify the 110-piece quantity, 5-pin configuration, switch profile, socket type, and keyboard compatibility before ordering. These switches are not compatible with optical, magnetic, or low-profile keyboards.
