*** This item's category in POS House store : IT Product > Power Distribution Unit (PDU)

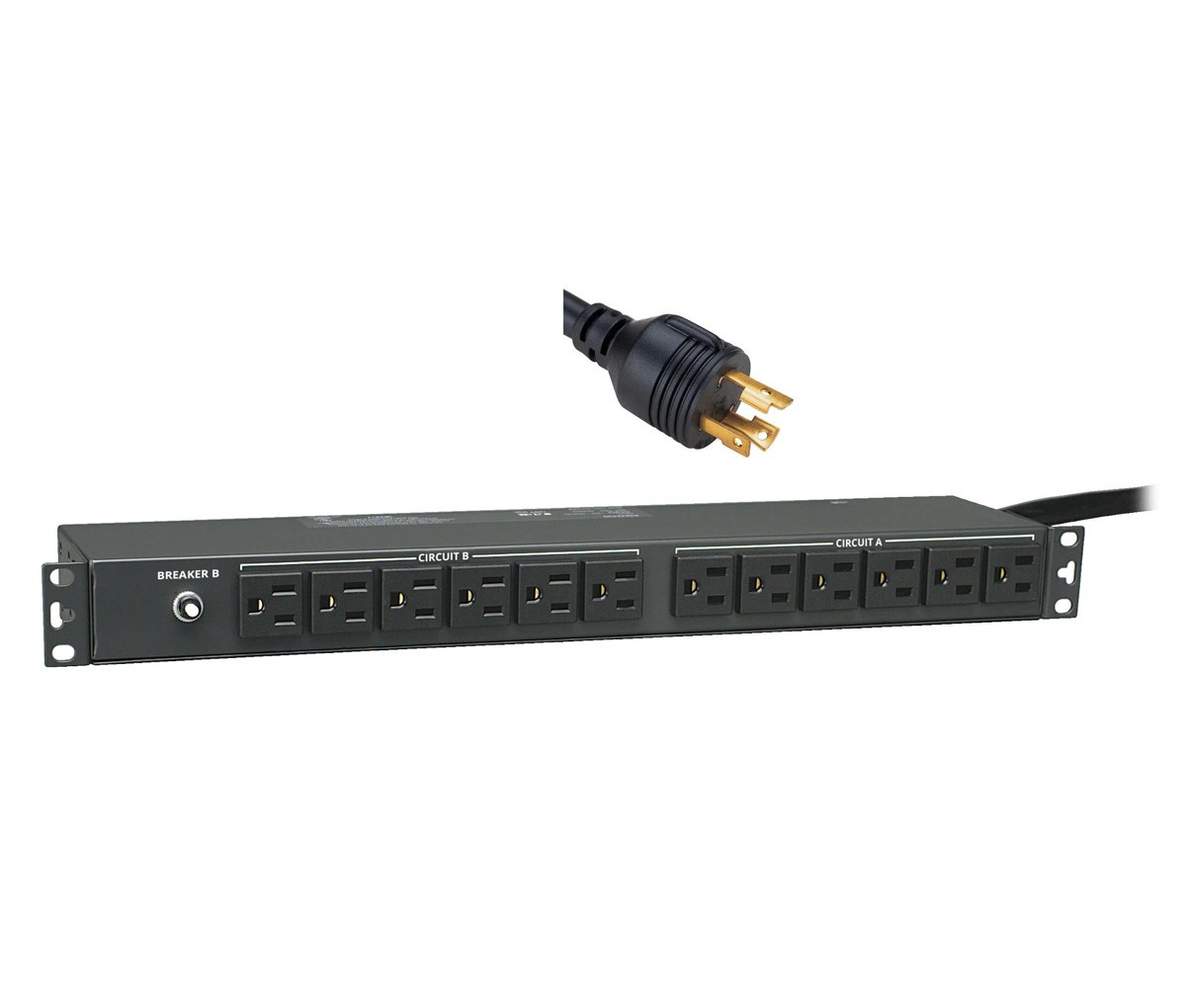

*** SKU# : 162390; Model # : PDU2430Tripp Lite 2.9kW Single-Phase 120V Basic PDU, 24 NEMA 5-15R Outlets, NEMA L5-30P Input, 15 ft. (4.57 m) Cord, 1U Rack-Mount * Features
- Basic single phase 30A 120V PDU
- 1U horizontal rackmount installation
- NEMA L5-30P input; 15 ft. / 4.5m line cord
- 24 5-15R outlets (12 front / 12 rear)
* General Information
Product Type : PDU
Manufacturer Part Number : PDU2430
Manufacturer : Tripp Lite by Eaton
Product Model : PDU2430
Product Name : PDU2430 2.9kW Single-Phase 120V Basic PDU
Brand Name : Tripp Lite by Eaton
* Technical Information
Plug/Connector Type : NEMA L5-30P
Receptacle Type : NEMA 5-15R
PDU Type : Basic
Receptacle Detail : 24 x NEMA 5-15R
Plug/Connector Detail : 1 x NEMA L5-30P
* Power Description
Input Voltage : 120 V AC
Output Voltage : 120 V AC
* Physical Characteristics
Mount Type : Rack-mountable
Rack Height : 1U
Number of Cord/Cable : 1
* Additional Information
- Corded AC power distribution unit with 24 amp capacity and 24 AC receptacles (12 front / 12 rear)
- Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19 inch rackmount mounting in both 1U or 0U formats
- Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure
- Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment
- Attractive all-metal housing with 12 front facing and 12 rear facing receptacles measures only 2.75 inches in depth
- 24 NEMA5-15R output receptacles
- 15 foot AC cord NEMA L5-30 plug connection
- Switch-free design prevents the potential for accidental shutoff of connected loads
- 24 amp total electrical capacity with two 15A circuit breakers
- 120V AC, 50/60Hz electrical compatibility
* Package Contents
PDU2430 2.9kW Single-Phase 120V Basic PDU
Mounting Hardware
Owner's Manual
