Tripp Lite's N785-001-LC-MM 10/100/1000 to Multimode Media Converter ( RJ45 to LC ) is an economical way to extend the distance of network nodes up to 550M by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter. Key Features 10/100/1000 UTP to Multimode Fiber converter Up to 550 Meters ( 1800ft ) range Auto-detects Full / Half Duplex Transfer Mode Auto Negotiation MDI / MDI-X 6 performance monitoring LEDs 850nm wavelength Small, compact design System Requirements 10/100/1000 Ethernet Network Multimode LC Fiber Cable Package Includes 10/100/1000 LC Multimode

• About Us
• Payment Info
• Shipping Info
• Customer Support
• response

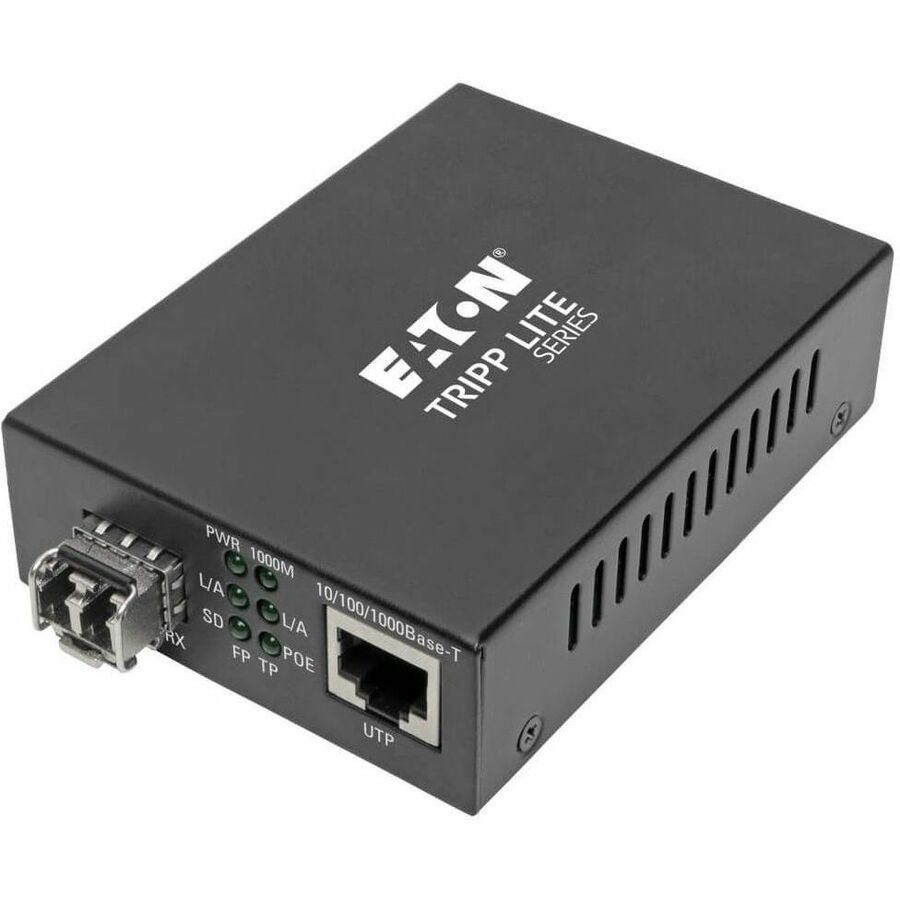

Tripp Lite LC Multimode Fiber to Gbe Media Converter N785P01LCMM1 Brand: Tripp Lite UPC: 0037332236906 Mfr Part #: N785P01LCMM1

General Information

Extends Power and Data to a PoE+ Device up to 550 Meters via LC Multimode Fiber Cable

This economical unit converts a multimode fiber optical signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet to a PoE+ (Power over Ethernet) device. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-P01-LC-MM1 with multimode fiber cable to reach greater distances. This could include providing both data and power to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices.

Supports Power over Ethernet to Save You Money and Give You More Installation Choices

PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.

Supports Auto-Sensing of Network Speed and Other Advanced Functions

Monitoring and controlling your network nodes is easy with the N785-P01-LC-MM1's advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIZ configuration. Six LEDs indicate the converter's power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the LC and RJ45 ports to ensure link status remains active.

Works in Tandem with Tripp Lite's N785-001-LC-MM Media Converter

This media converter connects to the N785-001-LC-MM using multimode fiber optic cabling with LC ends (such as Tripp Lite's N520-Series, sold separately) to extend an Ethernet network connection up to 550 meters. Use Cat5e/6 cabling (such as Tripp Lite's N001- or N201-Series cables) to deliver data and power to a 10/100/1000 Mbps PoE device up to 100 meters (328 feet) from the N785-P01-LC-MM1.

Completely Plug-and-Play with No Additional Software Required for Connection

The compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed.

More from the Manufacturer

Media & PerformanceMedia Type Supported:Twisted PairMedia Type Supported:Optical FiberFiber Mode Supported:Multi-modeFiber Optic Cable Wavelength:850 nmMaximum Distance Supported:0.55 km

Network & CommunicationEthernet Technology:Gigabit EthernetNetwork Technology:10/100/1000Base-TNetwork Technology:1000Base-X

Power DescriptionPower Source:Power Supply

Physical (Approximate):7.04 oz

N785-P01-LC-MM1 Transceiver/Media Converter

External Power Supply with 3.6 ft. Cord and NEMA 5-15P Plug (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A)

Owner's Manual

Environmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)Country of Origin:China
