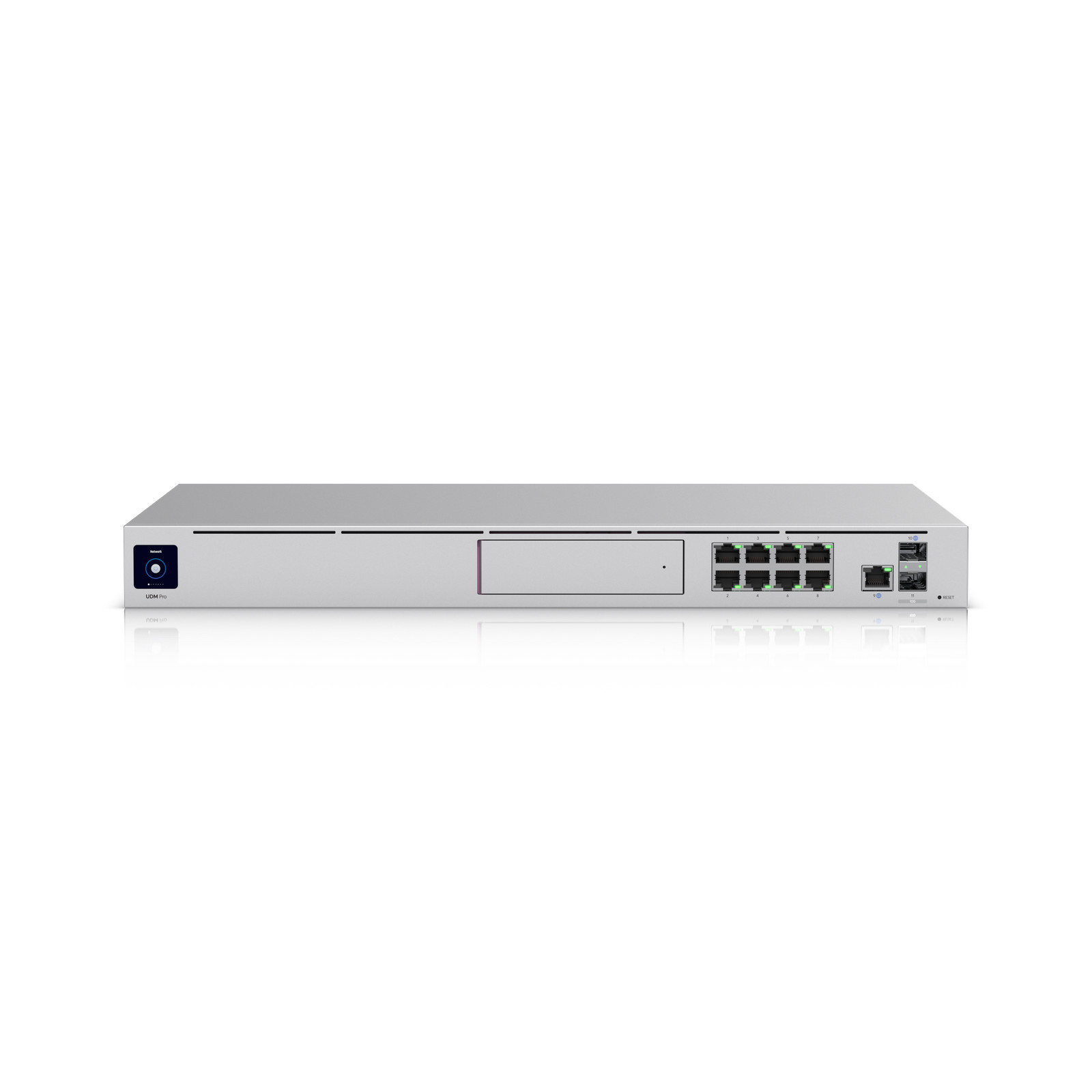

Dream Machine Pro Model: UDM-PRO Product Description
10G Cloud Gateway with 100+ UniFi device / 1,000+ client support and 3.5 Gbps IPS routing.
Key Features
- Includes full UniFi application suite for device management
- 3.5+ Gbps routing with IDS/IPS
- (1) 10G SFP+*, (8) GbE RJ45 LAN ports
- (1) 10G SFP+*, (1) GbE RJ45 WAN ports
- 3.5" NVR HDD bay
- 1.3" touchscreen
Technical Specifications IDS/IPS3.5 GbpsIDS/IPS Throughput3.5 GbpsMax. Client Count1,000ProcessorQuad-core ARM® Cortex®-A57 at 1.7 GHzSystem Memory4 GBPower SupplyAC/DC, internal, 50WPower Method(1) Universal AC input, 100—240V AC, 50/60 Hz(1) USP-RPS DC inputMax. Power Consumption33WDimensions442.4 x 43.7 x 285.6 mm(17.4 x 1.7 x 11.2")Weight3.9 kg (8.6 lb)CertificationsCE, FCC, IC, Anatel: 01136-20-08356, SRRC1 GbE RJ459(1G/100M/10M)10G SFP+2(10G/1G)Additional Internet Failover with UniFi LTE BackupTrueAdvanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)TrueAmbient Operating Humidity5 to 95% noncondensingAmbient Operating Temperature-10 to 40° C (14 to 104° F)Application-Aware Layer 7 FirewallTrueButton(1) Factory-resetCustomizable DHCP ServerTrueDPI & Traffic IdentificationTrueDefault WAN Ports(1) 10G SFP+(1) GbE RJ45ESD/EMP ProtectionAir: ± 15kV, contact: ± 8kVEnclosure MaterialAluminium CNC, SGCC steelForm FactorRack mount (1U)Heat Dissipation112 BTU/hrIDS/IPS Signatures55,000+ with CyberSecureIntegrated RADIUS ServerTrueInternet Quality and Outage ReportingTrueIntrusion Prevention (IPS/IDS)TrueLACP Port AggregationTrueLCM Display1.3" touchscreenMAC Address Table Size4,000Managed Access Hubs150Managed Cameras(24) HD(14) 2K(8) 4KManaged UniFi WAN Port Count8Mount MaterialSGCC steelMulti-WAN Load BalancingTrueMulticast DNS (mDNS)True 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
