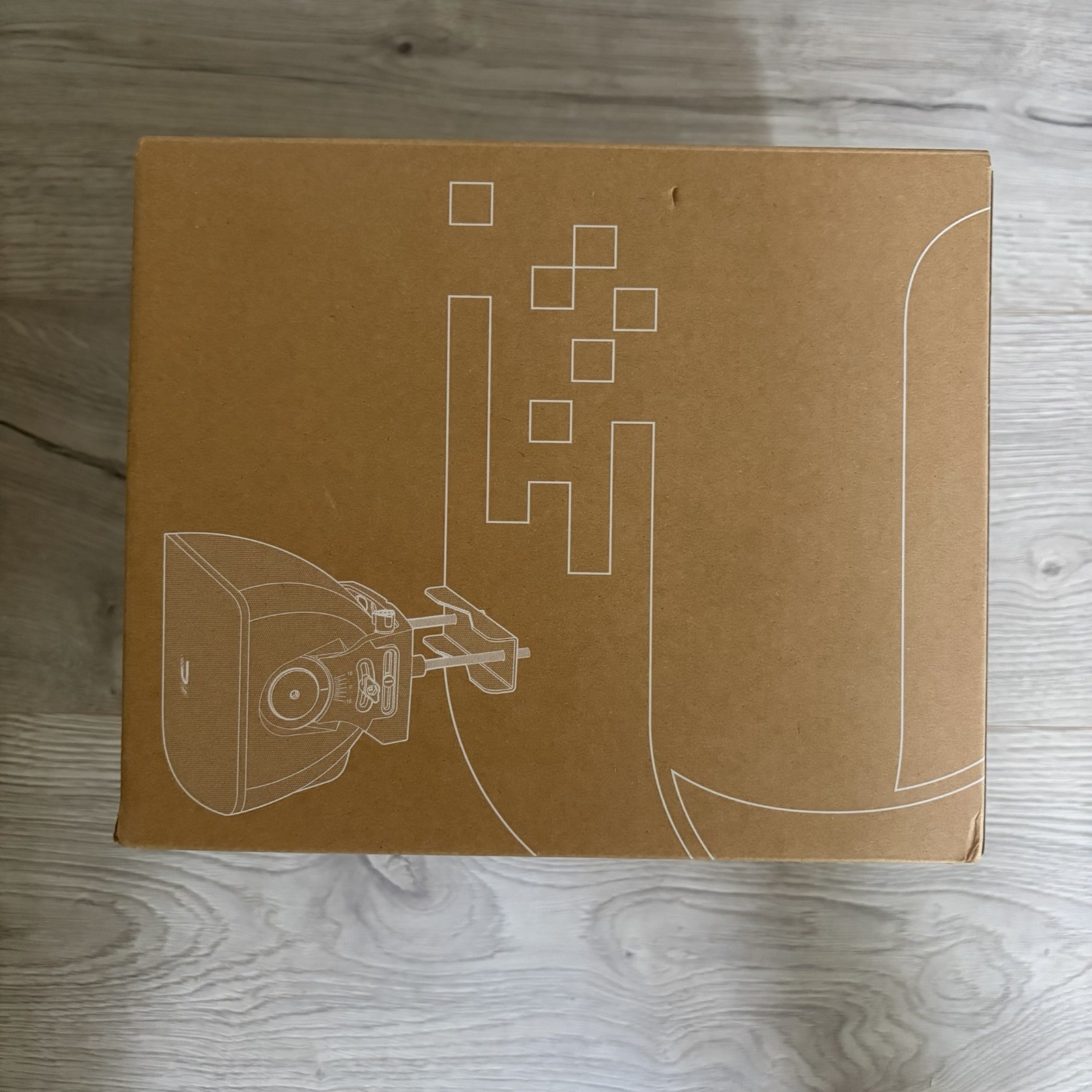

These units are in new condition and are still in original box with all the original packaging and accessories. Have never been deployed and were purchased for a project that never ended up taking place.
Dimensions212 x 205 x 187 mm(8.3 x 8.1 x 7.4")Weight2.3 kg (5.1 lb)Enclosure MaterialAluminum alloy, UV stabilized polycarbonatePole Mount Diameter⌀ 25 to 76 mm (1 to 3")Wind Loading98 N at 200 km/h (22 lbf at 125 ARM® Cortex®-A53 at 1.4 GHzMemory512 MBNetworking Interface(1) 2.5GbE RJ45 port (100/1000/2500)(1) 10G SFP+ port (1/10)Max. Power Consumption24WPower MethodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC onlySupported Voltage Range44–54V DC22–27V DCPower Supply48V DC, 0.65A 2.5GbE PoE adapter (Included)GPS✓Buttons(1) Factory resetLEDsPowerFlashing white: bootup in progressWhite: not connected to UISP applicationBlue: connected to UISP applicationFlashing blue: locate in progressBlue/white: firmware upgrade in progressEthernetFlashing white: Ethernet traffic detectedFlashing blue: SFP+ traffic detectedGPSBlue: receiving at least (4) GPS satellite signalAmbient Operating Temperature-40 to 60° C (-40 to 140° F)Ambient Operating Humidity5 to 95% noncondensingNDAA Compliant✓CertificationsFCC, IC, CEOperating ModesPtMP access pointUbiquiti Specific FeaturesDiscovery Protocol✓ServicesUISP✓Ping Watchdog✓NTP Client✓SNMP✓ToolsCable Test✓Wave AI✓Wave Technology✓UtilitiesAntenna Alignment✓Ping✓Site Survey✓Speed Test✓Traceroute✓Discovery Utility✓NetworkBridge modeApplication RequirementsUISPVersion 1.5.7 and laterTotal Throughput5.4 GbpsSupported Clients31Max. RangeConnecting to a Wave Pro: up to 8 km (5 mi)Connecting to a Wave Long-Range: up to 8 km (5 mi)Connecting to a Wave Nano: up to 5 km (3.1 mi)Connecting to a Wave Pico: up to 1.3 km (0.8 mi)EncryptionWPA2-PSK (AES)Operating FrequencyWorldwide57–71 GHzChannel Bandwidth2160, 1080, 540 MHzOperating Channels58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHzModulation16QAM, QPSKAntenna Gain24 3 dB 30°Elevation: 3 dB 3°Electrical Downtilt0°WiFi Standard802.11ax (WiFi 6)Operating FrequencyUS/CAU-NII-1 5150 - 5250 MHzU-NII-2A 5250 - 5350 MHzU-NII-2C 5470 - 5725 MHzU-NII-3 5725 - 5850 MHzWorldwide5150 - 5875 MHzChannel Bandwidth20, 40, 80 MHzModulationBPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)Antenna Gain12 3 dB 35°Elevation: 3 dB 60°Cross-Pol Isolation10 dBElectrical Downtilt0°
