WAVLINK WiFi 6 Outdoor Access Point — Model Comparison WAVLINK WiFi 6 Outdoor Access Point Series

Compare the WN573HX3 · WN588HX3 · WN573HP3 — find the right outdoor WiFi 6 solution for your project.

• ⚡ WiFi 6 AX3000
• 📶 573Mbps (2.4G) + 2402Mbps (5G)
• 🛡️ IP67 Weatherproof Enclosure
• 🔌 Active & Passive PoE
• 🔗 Seamless WiFi Mesh
• 🌐 Multiple Modes: AP / Router / Repeater / Mesh

Product Comparison

All three models share the same AX3000 dual-band platform, IP67 outdoor protection, a Gigabit WAN/LAN port and full Mesh support. The differences below will help you choose the model that fits your deployment best.

Table 1 — WiFi Performance & StandardIEEE 802.11 ax/ac/a/n/g/bIEEE 802.11 ax/ac/a/n/g/bIEEE 802.11 ax/ac/a/n/g/bDual-Band Speed2.4GHz 573Mbps + 5GHz 2402Mbps
Aggregated up to 3000Mbps2.4GHz 573Mbps + 5GHz 2402Mbps
Aggregated up to 3000Mbps2.4GHz 573Mbps + 5GHz 2402Mbps
Aggregated up to 3000MbpsAntennas4 × 8dBi omnidirectional fiberglass tube antennas6 × 7dBi high-gain antennas
(3 × 7dBi 5GHz + 3 × 7dBi 2.4GHz, detachable)4 × 12dBi directional antennasSignal EnhancementHigh-power amplifiers (PA + LNA)Built-in high-power amplifiersHigh-power amplifiersDevice CapacityUp to 128 devices simultaneouslyUp to 256 devices simultaneouslyUp to 256 devices simultaneouslyCoverage / TransmissionOmnidirectional antennas expand WiFi coverage and penetrationOutdoor signal coverage up to 300m (984ft)Wireless data transmission up to 3km / 1.9 miles (paired PtP or PtMP, barrier-free field)Operating ModesMesh / AP / Router / Repeater / AP+RepeaterMesh / AP / Router / Repeater / AP+Repeater
+ Fat AP Mode
+ Fit AP Mode with WAVLINK AC controllerMesh / AP / Router / Repeater / AP+Repeater
+ Fat AP Mode
+ Fit AP Mode with WAVLINK AC controllerMesh InterconnectionWN586X3, WN572HP3, WN573HX3WN586X3, WN583AX3, WN573HX3WN586X3, WN583AX3, WN573HX3Wireless SecurityWPA2-PSK, WPA2/WPA3-MIXWPA2-PSK, WPA2/WPA3-MIXWPA2-PSK, WPA2/WPA3-MIXTable 2 — Outdoor Protection, Power & RatingIP67 waterproof enclosureIP67 waterproof enclosureIP67 waterproof enclosureSurge & Lightning Protection15kV ESD protection + 6kV lightning protection15kV ESD protection + lightning protectionLightning protection + weatherproof designPoE Power Supply802.3AF/AT active PoE and passive PoE
Passive PoE converter included802.3af / 802.3at / 48V PoE
PoE adapter included802.3AF/AT active PoE and passive PoEEthernet Port1 × WAN/LAN Gigabit port1 × WAN/LAN Gigabit port1 × WAN/LAN Gigabit portProduct Size
(without antennas)24 × 24 × 7cm
9.4 × 9.4 × 2.8in17 × 17.3 × 5.1cm
6.7 × 6.8 × 2in24 × 24 × 7cm
9.4 × 9.4 × 2.8inProduct Weight1109g / 39.1oz552g / 19.5oz1050g / 37ozCable LengthAntennas 40cm / 15.7in
Ethernet cable 100cm / 39.4in
Power adapter cable 130cm / 51.2inEthernet cable 100cm / 39.4in
Power adapter cable 130cm / 51.2inEthernet cable 100cm / 39.4in
Power adapter cable 130cm / 51.2inPower AccessoriesPassive PoE (optional):
1 × 54V power adapter
1 × PoE converter
1 × Ethernet cable1 × 54V power adapter
1 × PoE converter
1 × Ethernet cable1 × 54V power adapter
1 × PoE converter
1 × Ethernet cableIndicator LEDsPAIR/RESET LED: Blue
PoE converter status LED: GreenPAIR/RESET LED: Blue
PoE converter status LED: GreenPAIR/RESET LED: Blue
PoE converter status LED: GreenWhich Model Should You Choose?

Match the model to your deployment scenario.

WL-WN573HX3All-Round Outdoor Coverage

Best for sites that need balanced outdoor WiFi coverage with rugged, corrosion-resistant antennas.

• 4 × 8dBi omnidirectional fiberglass tube antennas — high precision, corrosion resistance, long service life and strong wind resistance
• Up to 128 devices connected simultaneously
• 15kV ESD protection and 6kV lightning protection for harsh weather
• Passive PoE converter included for flexible outdoor installation

WL-WN588HX3High-Density & Wide Outdoor Coverage

Best for large outdoor spaces that need the widest coverage and the highest number of connected devices.

• Outdoor signal coverage up to 300m (984ft) with 6 × 7dBi high-gain antennas
• Up to 256 devices connected simultaneously
• Lightweight design at 552g / 19.5oz with mounting bracket for poles or walls
• Supports Fat AP Mode and Fit AP Mode with WAVLINK AC controller
• Powered by 802.3af / 802.3at / 48V PoE with the included PoE adapter

WL-WN573HP3Long-Distance Wireless Data Transmission

Best for long-range outdoor links and large-area deployments such as factories, communities and streets.

• Wireless data transmission up to 3km / 1.9 miles (paired PtP or PtMP, tested in barrier-free field)
• 4 × 12dBi directional antennas improve transmission and reception performance
• Up to 256 devices connected simultaneously
• Supports Fat AP Mode and Fit AP Mode with WAVLINK AC controller

WL-WN573HX3WAVLINK Professional Outdoor Access Point, Enjoy Super-Speed WiFi6 Anytime & Anywhere

WN573HX3 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; The 4 × 8dBi omnidirectional fiberglass tube antennas feature high strength and high precision, a long service life and excellent wireless performance; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 3000Mbps (2.4GHz 573Mbps + 5GHz 2402Mbps); Supports MU-MIMO and Beamforming technology, allowing up to 128 devices to be connected simultaneously in a wider range.

Features

• ⭐ Designed for Harsh Outdoor Conditions
  Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube high-gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage, making it more suitable for outdoor use.
• ⭐ Enjoy True WiFi 6 Speed
  The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
• ⭐ Optional PoE Power Supply
  Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Please use CAT5E or above cable and the length should not exceed 100m/328ft.
• ⭐ Seamless WiFi Roaming
  The 4 × 8dBi omnidirectional antennas and two built-in high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
• ⭐ Multiple Modes, Flexible Use
  Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.

Highlights

Fiberglass Tube High Gain Antennas4 × 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.

IP67 Waterproof EnclosureEquipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.

PoE Power SupplyBoth active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.

573Mbps on 2.4G & 2402Mbps on 5GDual band AX3000 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.

High Power AmplifiersDual integrated signal boosters efficiently strengthen the wireless performance. The PA (power amplifier) increases the power output while the LNA (low-noise amplifier) minimizes additional noises and increases the wireless signal.

Advanced WiFi SafeguardWPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.

Specification

• - Model: WL-WN573HX3
• - Product Size (without antennas): 24 × 24 × 7cm / 9.4 × 9.4 × 2.8in
• - PoE Converter Size: 4.4 × 3.7 × 2.2cm / 1.7 × 1.5 × 0.9in
• - Length: Antennas - 40cm / 15.7in; Ethernet Cable - 100cm / 39.4in; Power Adapter Cable - 130cm / 51.2in
• - Product Weight (without antennas): 1109g / 39.1oz
• - Standard: IEEE 802.11 ax/ac/a/n/g/b
• - Frequency Band/Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
• - Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
• - Antennas: 4 × 8dBi Omnidirectional Antennas
• - PAIR/RESET LED: Blue
• - PoE Converter Status LED: Green

Features List

• - Supports dual band (2.4G 573Mbps + 5G 2402Mbps) with aggregated speeds up to 3000Mbps.
• - Supports one WAN/LAN Ethernet Gigabit port.
• - Complies with IEEE 802.11 ax/ac/n/g/a/b standards.
• - Supports AP / Range Extender / Mesh Router / Mesh Extender mode.
• - Encryption type: OPEN, WPA2-PSK, WPA3/WPA2 MIX.
• - 2 × 8dBi 5GHz and 2 × 8dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
• - Glass tube antenna for high precision, corrosion resistance, long life, strong wind resistance.
• - Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
• - Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
• - Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.

Warm Tips

• Please install the PoE converter indoors.
• Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
• Please install the product 2–3 meters above the ground for better performance.
• Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3 (latest firmware required) and WN573HX3.

In the Box

• 1 × AX3000 WiFi 6 Outdoor Access Point
• 4 × Omni Antennas
• 4 × Cable Ties
• 1 × Ethernet Cable Connectors
• 1 × Quick Installation
• 1 × Wrench
• 2 × Silicone Pads
• Several Screws
• Passive PoE (Optional): 1 × 54V Power Adapter, 1 × PoE Converter, 1 × Ethernet Cable

WL-WN588HX3WAVLINK WiFi6 Outdoor Access Point, Dual Band 2.4G+5G AX3000 Long Range Outdoor WiFi Mesh Extender with PoE / 6×7dBi High-gain Antennas / IP67 Weatherproof Enclosure / Signal Booster Amplifier

• 🌐 Designed for Harsh Outdoor Conditions
  IP67-rated waterproof housing that ensures continued operation in harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatherproof design ensure stable connection in harsh outdoor conditions.
• 🌐 Enjoy True WiFi 6 Speed
  The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN588HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
• 🌐 Seamless WiFi Roaming
  The 6 × 7dBi omni-directional antennas and high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
• 🌐 Multiple Modes, Flexible Use
  Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.
• 🌐 Powered by PoE and Flexible Installation
  Supporting 802.3af / 802.3at / 48V PoE Power over Ethernet with the included PoE adapter, this device offers flexible deployment and convenient installation with its mounting bracket design. It can be easily mounted on poles or walls.

WAVLINK Professional Outdoor Access Point, Enjoy Super-Speed WiFi6 Anytime & Anywhere

WN588HX3 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; 6 × 7dBi high gain antennas provide better wireless performance and super fast transmission rates; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 3000Mbps (2.4GHz 573Mbps + 5GHz 2402Mbps); Supports MU-MIMO and Beamforming technology, allowing up to 256 devices to be connected simultaneously in a wider range.

How to Install the Ethernet Cable?

• Pass the RJ45 cable through the waterproof connector cover.
• Screw the waterproof seal into the waterproof connector bracket.
• Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
• Put the waterproof sealing ring on the waterproof connector bracket.
• Connect the RJ45 cable to WAN/LAN port.

Note: Please install the PoE converter indoors. Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.

Highlights

573Mbps on 2.4G & 2402Mbps on 5GDual band AX3000 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.

Access More DevicesConnect up to 256 devices simultaneously, making it ideal for large spaces such as factories, communities, streets, and more.

Worry-Free WiFi CoverageEnhanced by built-in high-power amplifiers and 6 × 7dBi omni-directional antennas to extend outdoor signal coverage up to 300m (984ft).

Specification

• - Model: WL-WN588HX3
• - Product Size: 17 × 17.3 × 5.1cm / 6.7 × 6.8 × 2in
• - PoE Converter Size: 4.4 × 3.7 × 2.2cm / 1.7 × 1.5 × 0.9in
• - Length: Ethernet Cable - 100cm / 39.4in; Power Adapter Cable - 130cm / 51.2in
• - Product Weight: 552g / 19.5oz
• - Standard: IEEE 802.11 ax/ac/a/n/g/b
• - Frequency Band/Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
• - Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
• - Antennas: 6 × 7dBi High-Gain Antennas
• - PAIR/RESET LED: Blue
• - PoE Converter Status LED: Green

Features List

• - Supports dual band (2.4G 573Mbps + 5G 2402Mbps) with aggregated speeds up to 3000Mbps.
• - Supports one WAN/LAN Ethernet Gigabit port.
• - Complies with IEEE 802.11 ax/ac/n/g/a/b standards.
• - 3 × 7dBi 5GHz and 3 × 7dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
• - Supports Router / AP / Range Extender / Mesh Router / Mesh Extender mode.
• - Encryption type: OPEN, WPA2-PSK, WPA3/WPA2 MIX.
• - Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
• - Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
• - Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
• - Supports Fat AP Mode.
• - Supports Fit AP Mode with WAVLINK AC controller.

Warm Tips

• Please install the PoE converter indoors.
• Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
• Under the mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
• The real performance of the product may vary in accordance with different environmental conditions.

In the Box

• 1 × AX3000 WiFi 6 Outdoor Access Point
• 4 × Plastic Cable Ties
• 1 × Main Body Holder
• 6 × 7dBi Antennas
• 1 × Wrench
• 1 × 54V Power Adapter
• 1 × PoE Converter
• 1 × Ethernet Cable
• 1 × PWM M3×5×6MM Screw
• 6 × KA M3×20×5.2MM Screws
• 6 × Φ6.5×25MM Screw Plugs
• 1 × Quick Start Guide

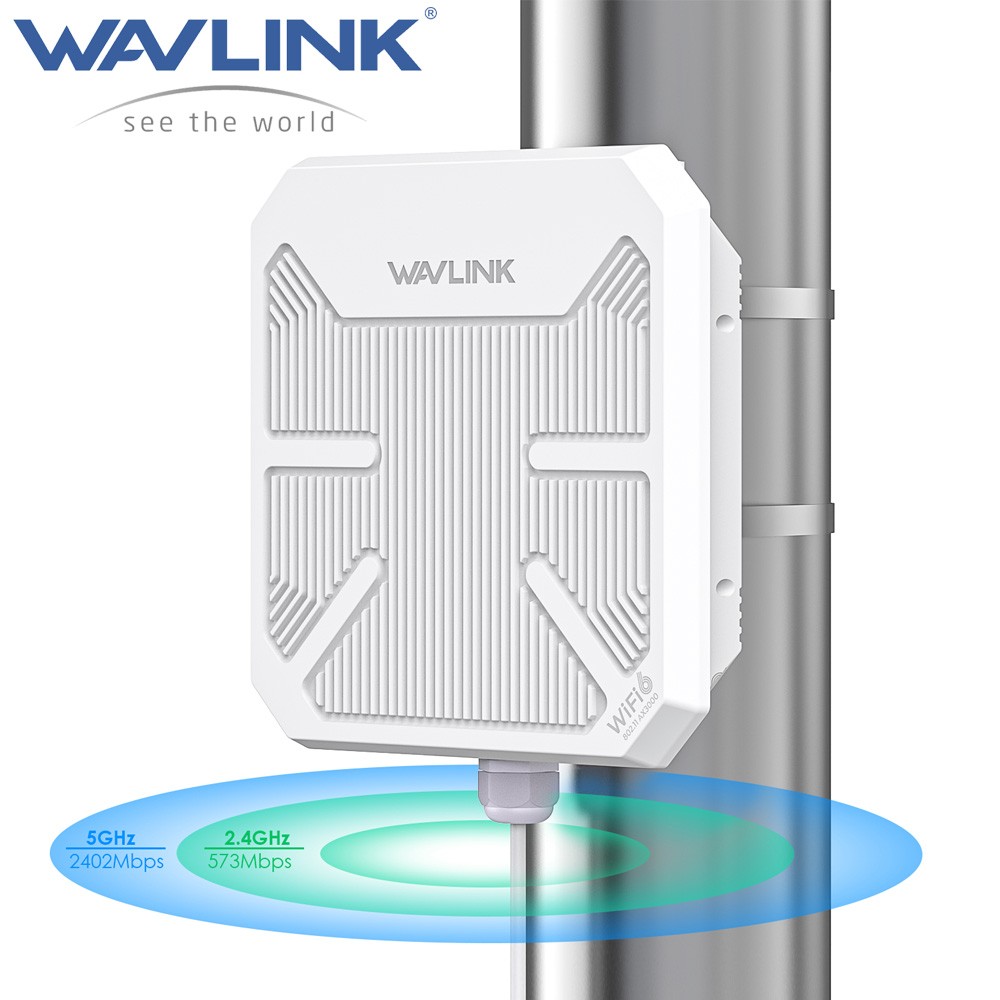

WL-WN573HP3WAVLINK WiFi6 Outdoor Access Point, Dual Band 2.4G+5G AX3000 Long Range Outdoor WiFi Mesh Extender with PoE / 4×12dBi High-gain Antennas / IP67 Weatherproof Enclosure / Signal Booster AmplifierFeatures

• 🌐 Designed for Harsh Outdoor Conditions
  IP67-rated waterproof housing that ensures continued operation in harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatherproof design ensure stable connection in harsh outdoor conditions.
• 🌐 Enjoy True WiFi 6 Speed
  The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HP3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
• 🌐 Optional PoE Power Supply
  Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Please use CAT5E or above cable and the length should not exceed 100m/328ft.
• 🌐 Seamless WiFi Roaming
  The built-in 4 × 12dBi directional antennas and high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
• 🌐 Multiple Modes, Flexible Use
  Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.
• 🌐 3Km Wireless Data Transmission
  Specially designed for outdoor uses, ideal for long distance wireless data transmission over 3km / 1.9 miles (only for paired PtP or PtMP transmission), tested in the barrier-free field. Built-in 12dBi directional antennas can significantly improve the transmission and reception performance of wireless signal.

Highlights

573Mbps on 2.4G & 2402Mbps on 5GDual band AX3000 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.

Access More DevicesConnect up to 256 devices simultaneously, making it ideal for large spaces such as factories, communities, streets, and more.

Specification

• - Model: WL-WN573HP3
• - Product Size: 24 × 24 × 7cm / 9.4 × 9.4 × 2.8in
• - PoE Converter Size: 4.4 × 3.7 × 2.2cm / 1.7 × 1.5 × 0.9in
• - Length: Ethernet Cable - 100cm / 39.4in; Power Adapter Cable - 130cm / 51.2in
• - Product Weight: 1050g / 37oz
• - Standard: IEEE 802.11 ax/ac/a/n/g/b
• - Frequency Band/Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
• - Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
• - Antennas: 4 × 12dBi Directional Antennas
• - PAIR/RESET LED: Blue
• - PoE Converter Status LED: Green

Features List

• - Supports dual band (2.4G 573Mbps + 5G 2402Mbps) with aggregated speeds up to 3000Mbps.
• - Supports one WAN/LAN Ethernet Gigabit port.
• - Complies with IEEE 802.11 ax/ac/n/g/a/b standards.
• - Supports Router / AP / Range Extender / Mesh Router / Mesh Extender mode.
• - Encryption type: OPEN, WPA2-PSK, WPA3/WPA2 MIX.
• - Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
• - Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
• - Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
• - Supports Fat AP Mode.
• - Supports Fit AP Mode with WAVLINK AC controller.

Warm Tips

• Please install the PoE converter indoors.
• Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
• Please install the product 2–3 meters above the ground for better performance.
• Under the mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
• The real performance of the product may vary in accordance with different environmental conditions.

In the Box

• 1 × AX3000 WiFi 6 Outdoor Access Point
• 1 × 54V Power Adapter
• 4 × Cable Ties
• 1 × PoE Converter
• 2 × Silicone Pads
• 1 × Ethernet Cable
• 1 × Main Body Holder
• 1 × PWM M4×8×8MM Screw
• 1 × Wrench
• 6 × KA M4×25×6MM Screws
• 1 × Quick Start Guide
• 6 × Φ8×25MM Screw Plugs
