WAVLINK Professional Outdoor Router/AP/Repeater, Enjoy Super-Speed WiFi6 Anytime & Anywhere

WN573HX1 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; The 4 x 8dBi omnidirectional fiberglass tube antennas feature high strength and high precision, a long service life and excellent wireless performance; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 1800Mbps (2.4GHz 574Mbps+5GHz 1201Mbps); Supports MU-MIMO and Beamforming technology, allowing up to 128 devices to be connected simultaneously in a wider range.

How to install antennas and Ethernet cable?
①Pass the RJ45 cable through the waterproof connector cover.
②Screw the waterproof seal into the waterproof connector bracket.
③Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④Put the waterproof sealing ring on the waterproof connector bracket.
⑤Connect the RJ45 cable to WAN/LAN port.
⑥Screw the connecting cable into the 2.4G and 5G antenna connector and screw up the connector.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.

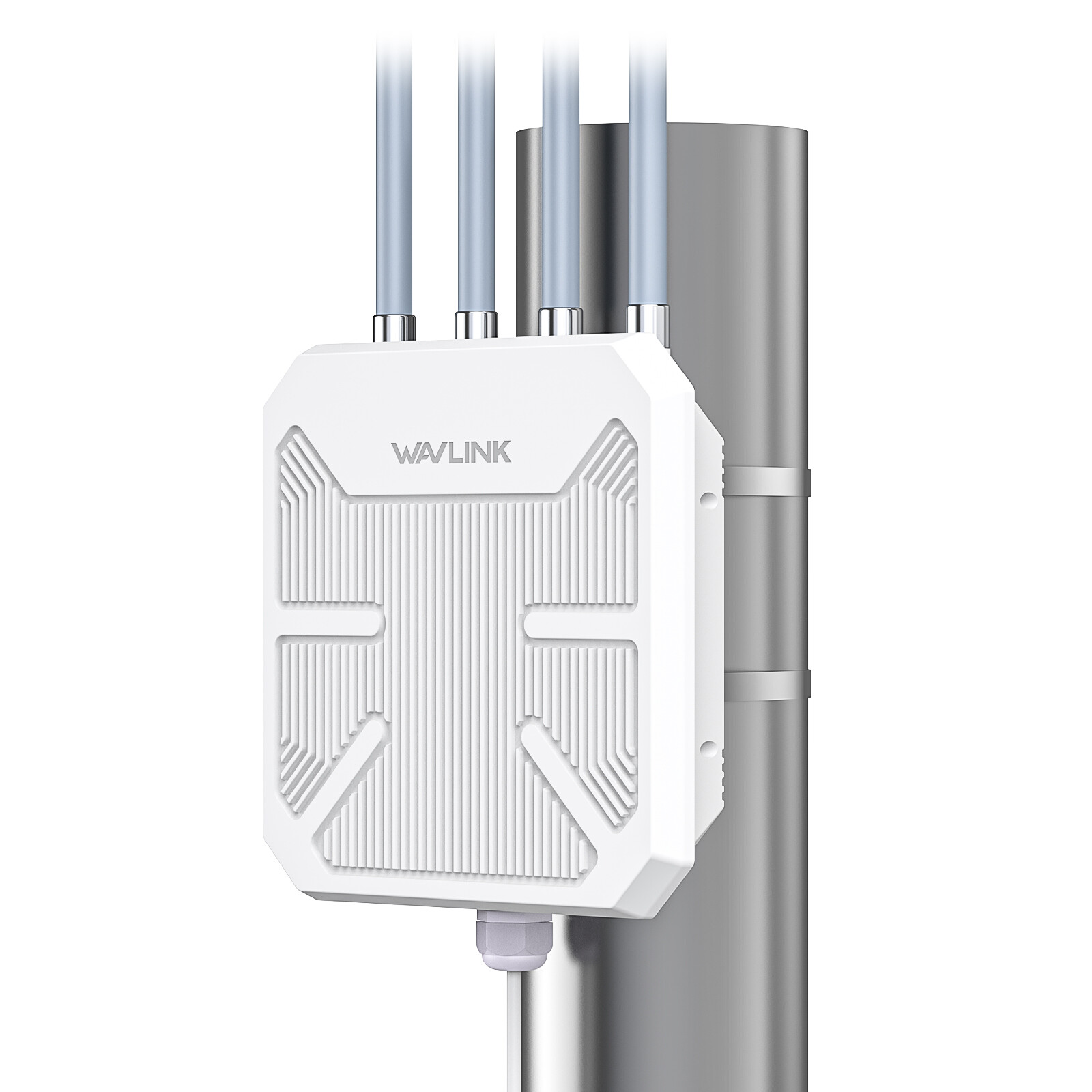

How to install the product on a column?
①Stick two silicone pads on the bracket and post respectively.
②Thread the cable ties through the fixing point of the bracket.
③Fix the product to the post with cable ties.

Fiberglass Tube High Gain Antennas
4 x 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.

IP67 Waterproof Enclosure
Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.

PoE Power Supply
Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.

574Mbps on 2.4G & 1201Mbps on 5G
Dual band AX1800 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.

High Power Amplifiers
Dual integrated signal boosters efficiently strengthen the wireless performance. The PA(power amplifier) increases the power output while the LNA(low-noise amplifier) minimizes additional noises and increases the wireless signal.

Advanced WiFi Safeguard
WPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.

Specification
- Model: WL-WN573HX1
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(574Mbps)+5GHz(1201Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green

Features
- Robust weatherproof case, IP67 waterproof rating and built-in lightning arrester (15kV ESD) withstands harsh outdoor conditions.
- Supports 802.3 AT/AF active PoE and passive PoE to supply power.
- Fiberlass tube antennas for high precision, corrosion resistance, long life, strong wind resistance.
- 4x8dBi detachable omnidirectional external antennas provide excellent wireless performance.
- Supports dual band(2.4G 573Mbps+5G 1201Mbps) with combined speeds of up to 1800Mbps.
- Mesh technology makes you enjoy seamless roaming throughout the house with a single network name and password.
- Complies with IEEE 802.11 ax/ac/a/n/g/b standards.
- Supports Mesh/AP/Router/Repeater/AP+Repeater modes.
- Encryption type:WPA2-PSK, WPA3/WPA2-MIX.

Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.

In the Box
1 x Wi-Fi6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable

AC1200 AERIAL HD8S 4 x 7dBi Omni antennas

Experience High-Speed Wi-Fi 5 Anywhere with WAVLINK Professional Outdoor Access Point
Experience the power of AC1200 Dual Band outdoor extender - Amplify and extend existing 2.4GHz and 5GHz wireless signals for wider coverage, reaching areas beyond router reach. Simplified by PoE, this high-power outdoor Wi-Fi solution offers flexible installation anywhere, anytime. Choose from various operating modes with professional outdoor design to withstand environmental changes, catering to diverse outdoor connectivity needs. Ideal for resolving warehouse dead spots and ensuring stable network connection for your fishing gear on-the-go.

How to Install the Ethernet Cable?
① Pass the RJ45 cable through the waterproof connector cover.
② Screw the waterproof seal into the waterproof connector bracket.
③ Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④ Put the waterproof sealing ring on the waterproof connector bracket.
⑤ Connect the RJ45 cable to WAN/LAN port.
⑥ Connect the 2.4G and 5G antennas to the corresponding connectors.

Warm Tips:
1.When setting up a mesh network, please note that the WL-WN588HA2 supports a maximum of 8 devices for networking (including the main router). It is only compatible with devices from the same brand "Wavlink" that support Everything Mesh; other devices are not supported.
2.The access point cannot act as a repeater for wireless signals with enforced captive portal.
3.For optimal performance, choose open and unobstructed locations, avoiding obstacles like walls, doors, aquariums, trees, and other barriers as much as possible.
4.All Wi-Fi extenders are designed to expand or enhance Wi-Fi coverage range, rather than directly increase speed.
5.PoE converter is not waterproof and should be used indoors or in a sheltered environment.

Specification:
Model: WL-WN588HA2 (AERIAL HD8S)
Port: 1 x WAN/LAN Gigabit Port
Button: 1 x Pair/Reset Button
Product Size: 17.0x5.6x17.0cm/6.7x2.2x6.7in
PoE Converter Size: 3.7x2.2x4.3cm/1.5x0.9x1.7in
Ethernet Cable: 100cm/39.4in (CAT 5E)
Power Adapter Cable Length: 125cm/49.2in
Standard: IEEE 802.11ac/a/n/g/b
Frequency Band/Speed: 2.4GHz@300Mbps, 5GHz@867Mbps
Wireless Security: OPEN, WPA2-PSK, WPA/WPA2 MIX, WPA3-SAE/WPA2-PSK, WPA/WPA2-Enterprise
Antennas: 4 x 7dBi Omni Antennas (RP-SMA)
Status LED: Blue
PoE Converter Status LED: Green
PoE Converter Support: DC 54V/0.3A Power over Ethernet (Passive), DC 48V Power over Ethernet (Active)

In the Box：
1 x ACI200 Wi-Fi 5 Outdoor Access Point
4 x Plastic Cable Ties
1 x Main Body Holder
4 x 7dBi Antennas
1 x Wrench
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
1 x PWM M3x5x6MM Screw
6 x KA M3x20x5.2MM Screws
6 x Φ6.5x25MM Screw Plugs
1 x Quick Start Guide

300Mbps 2 x built-in 11dBi high gain antennas

Wavkink 2.4G WiFi 300Mbps Outdoor AP/ Repeater/Router/ CPE/ Wireless Bridge
Stable and Long-range Wi-Fi is Provided to Wherever Needs it

Product Overview
The HighPower Wi-Fi AP/Repeater is ideal for long distance point-to-point/multi-point wireless data transmission, providing a free Wi-Fi service in remote such as factory, community, street or etc. The AP/Repeater can take an existing 2.4GHz wireless signal, repeat and extend it to a longer range where it is far away for the router or access point to reach, and it supports 2.4G transmission speeds of up to 300Mbps. It has one directional flat antenna (2 x built-in 11dBi high gain antennas) providing even better wireless performance, transmission rates, stability technology automatically avoids channel conflicts using its channel selection feature.Wish you'd have an enjoyable use experience with our product!

Flexible PoE Deployment: Support 24V PoE power supply, easy installation and deployment. Make sure the Ethernet cable connected to this repeater be less than 80 meters, and the ethernet cable connected to the uplink devices be less than 100 meters.

Multiple LED Indicators: 6 status LED indicatorshelp you see the power/ internet status of device. Since the green lights might be not so obvious in the open air, you can try to cover the device with your hand to check.

Wide Range Transmission: 1.5km wireless data transmission range for point to point/multi-point use(the result is from testing two products use together---one as sender and one as receiver), suitable for surveillance networks.

Product Dimension: Panel (L * W * T): length 19.5cm/7.68in, width 12cm/4.72in, thickness 3cm/1.18in; Router: diameter 4.5cm/1.77in, height 17cm/6.69in. Note: Data by manual measurement for reference ONLY.

Up to 64 Devices: Share WiFi network with up to 64 devices and enjoy 300Mbps network speed.(200 meters wireless data transmission range specifically determined by the environment and the antenna gain and power of the client.)

What You Get:
1x Outdoor Wi-Fi range extender;
1x Directional antenna panel;
1x Main body holder;
1x PoE converter;
1x RJ-45 network cable;
1x Screw/Bracket fitting kit;
1x Power adapter;
2x Cable ties;
1x Quick start guide;
1xInstallation instruction.

Installation Instruction
Installation Height: Keep the height of the flat antenna 2-3 meters above the ground without obstruction, and 1-2 meters horizontal drop from the network terminal (mobile phone, surveillance camera).
Installation Direction: The signal facing the front of the panel antenna is much stronger, please pay attention to whether the front and back of the antenna panel are facing correctly when installing.
Installation Steps: Support flexible deployment on the wall or on the round pole. For detailed steps, please refer to our step-by-step diagrams in this page or installation instructions in the package.

Features
- Easy installation, flexible placement
- Supports Router, AP, Repeater modes
- High transmission power for 1500 meters extreme Wi-Fi coverage
- Features 2 x RP-SMA connectors for external antennas
- Robust weatherproof enclosure design,15KV ESD and 4KV Lightning Protection
- Supports passive PoE power supply(through network cable)up to 80 meters
- Complies with IEEE 802.11b/g/n standards, wireless speed up to 300 Mbps
- Supports 128 bit WPA/WPA2(TKIP/AES)
- Features 6 x status LED indicators

FAQ

Q2. How do I restore the device to its factory default settings?
-While the device is powered on, press and hold the Reset button until all the LEDs turn on momentarily.

Q3. What should I do if the LED does not change to solid after completing ?
-You may have entered the incorrect Wi-Fi password of your host Wi-Fi during the configuration. Please log into the device' s web-based interface to check the password and try again.
-Reset the device and go through the configuration again.

Q4. I have enabled a wireless MAC filter, wireless access control, or access control list (ACL) on my router. What should I do before configuring and using the device ?
-If you have enabled those functions of your router, you may need to disable them first. And then follow OPTION ONE or OPTION TWO to complete the configuration. .

Please Note:
* The real performance of the product may vary in accordance with different environmental conditions.
* If your device is damaged or defective, please contact our customer service for more details.
* All pictures shown on the package are for illustration purpose only.
* The PoE part of the router is not waterproof.

AX3000 Built-in 4 x 12dBi Directional Antennas

WAVLINK Professional Outdoor Access Point, Enjoy Super-Speed WiFi6 Anytime & Anywhere
WN573HP3 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; 4 x built-in 12dBi high gain antennas provide better wireless performance and super fast transmission rates; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 3000Mbps (2.4GHz 573Mbps+5GHz 2402Mbps); Supports MU-MIMO and Beamforming technology, allowing up to 256 devices to be connected simultaneously in a wider range.

How to install the Ethernet cable?
①Pass the RJ45 cable through the waterproof connector cover.
②Screw the waterproof seal into the waterproof connector bracket.
③Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④Put the waterproof sealing ring on the waterproof connector bracket.
⑤Connect the RJ45 cable to WAN/LAN port.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.

How to install the product on a column?
①Stick two silicone pads on the bracket and post respectively.
②Thread the cable ties through the fixing point of the bracket.
③Fix the product to the post with cable ties.

573Mbps on 2.4G & 2402Mbps on 5G
Dual band AX3000 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.

Access More Devices
Connect up to 256 devices simultaneously, making it ideal for large spaces such as factories, communities, streets, and more.

Specification
- Model: WL-WN573HP3
- Product Size: 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 1050g/37oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 12dBi Directional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green

Features
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
- Supports Router/AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- Seamless and stable WiFi Mesh makes you enioy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
- Supports Fat AP Mode.
- Supports Fit AP Mode with WAVLINK AC controller.

Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
⑤The real performance of the product may vary in accordance with different environmental conditions.

In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 1 × 54V Power Adapter
- 4 × Cable Ties
- 1 × PoE Converter
- 2 × Silicone Pads
- 1 × Ethernet Cable
- 1 × Main Body Holder
- 1 × PWM M4×8×8MM Screw
- 1 × Wrench
- 6 × KA M4×25×6MM Screws
- 1 × Quick Start Guide
- 6 × Φ8x25MM Screw Plugs
