Supports 4G/3G/2G communication and GNSS positioning

Version Options

Standard version
3× IPEX antenna connector, comes with 2× yellow pin header and FPC antenna

Pre-soldered version
pre-soldered SMA main antenna connector and pin header, comes with SMA antenna

Features at a glance

• Compatible with 2G/3G/4G network
• Supports dial-up, telephone call, SMS, TCP, UDP, MQTT, DTMF, HTTP, FTP, etc.
• Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
• Onboard USB and UART interface, for dial-up Internet access, cloud platform communication, GNSS positioning, etc.
• Castellated holes with immersion gold design, small size, easy to integrate into the device by soldering directly or inserting via the pin header
• Adapting USB/UART/SIM card/GPIO control pins, easy to develop and debug, better expansibility
• Built in voltage translator, compatible with 3.3V/5V MCU motherboards such as STM32/ESP32/Arduino
• Supports multiple power supply methods: USB port, VIN pin, and VBAT pin (for 3.7V lithium battery)
• Onboard multiple protection circuits: TVS protection for SIM card, power supply isolation between the USB port and pin header, VIN pin power supply anti-reverse, and so on, more safe and reliable
• 2x LED indicators, easy to monitor the operating status
• Adopts SIMCOM recommended power supply solution, supports 5~26V wide voltage power supply and 3A high current output, to prevent the module from dropping and restarting due to the large instantaneous power consumption, more stable and reliable in industrial use.
• Onboard Nano SIM card slot, supports 1.8V and 3V SIM cards, near the edge of the board design, for easy accessing SIM card
• Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
• Adapting 3-ch antenna connector, IPEX antenna connector version and SMA connector version optional, supports mass 4G ModuleSIM7600E-H 4G ModuleApplicable regionsGlobalEurope/Southeast Asia/West Asia/Africa/China/KoreaFrequency bandLTE Cat-4LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18
  /B19/B20/B25/B26/B28/B66
  LTE-TDD: B34/B38/B39/B40/B41LTE-TDD: B38/B40/B41
  LTE-FDD: B1/B3/B5/B7/B8/B203GUMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19UMTS/HSPA+: B2/B52GGSM/GPRS/EDGE: 850/900/1800/1900 MHzGSM/GPRS/EDGE: 900/1800MHzGNSSFrequency typeC/A Code16-channelSensitivity-159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)Cold starts: -148 dBmTime-To-First-Fix (open air)Cold starts: <35sHot starts: <1sSoftware FeaturesNetwork accessPPP/NDIS/RNDISUSB driverWindows XP/7/8/10/11, Linux (driver free on Raspberry Pi Raspbian system)SMSSupported types: MT, MO, CB, Text, PDUHardware InterfaceUSB interfaceCan be used to access PC/Raspberry Pi/Jetson Nano and other hosts for 4G networking, positioning, AT command sending and receiving test, firmware upgrade, etc.UART interfaceCan be used to access MCU for 4G networking, positioning, AT command sending and receiving test, etc., compatible with 3.3V/5V working levelSIM card slotOnboard Nano SIM card slot, adapting related pins, compatible with 1.8V and 3V SIM cardAntenna connectorsMAIN: 4G main antenna (optional SMA connector or IPEX 1 connector version)
  AUX: 4G auxiliary antenna (IPEX 1 connector by default, can be mass-customized as SMA connector)
  GNSS: Positioning antenna (IPEX 1 connector by default, can be mass-customized as SMA connector)Other interfaceAdapting other common control pins such as GPIO, PWR, RST, FLTOtherPower supplyUSB port or VBUS - GND pin: 5V power supplyVIN - GND pin: 5V~26V wide-range voltage power supplyBAT - GND pin: 3.7V lithium battery power supplyOperating voltage3.3V by default (configurable as 3.8V-5V via VIO pin by connecting external voltage)Operating temperature-30°C ~ 80°CStorage temperature-45°C ~ 90°CDimensions38.8 x 42.0mm
  4G / 3G / 2G Support
  Dial-up on Windows/Linux

  LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink)
  3G (HSPA+): up to 5.76Mbps (uplink) / up to 42Mbps (downlink)

  Compatible With Multiple Platforms

  Provides Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/Arduino/STM32 Demos
  And User Manuals, Easier To Develop And Integrate, And Better Expansibility

  Cloud Communication

  Supports communication protocols including
  TCP, UDP, MQTT, MQTTS, FTP, FTPS, HTTP, HTTPS...


  GNSS positioning

  Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning

  * GNSS antenna is NOT included By default, please choose the GNSS antenna according to your needs:

  Active Ceramic Antenna
  Compact size, must be used in outdoor

  3m External Antenna
  Supports indoor positioning near the window area, with a 3m extension cable to place the antenna receiver outdoor

  SMS sending and receiving Support

  Making Telephone Call* Or Sending SMS By AT Commands

  * SIM7600X module supports telephone call function, since without adapting PCM and audio jack onboard, the AT commands and USB AUDIO development are required to realize telephone call via USB portSmall and easy integration

  Castellated design, small size, high integration
  Adapting most of the common interfaces, easy to DIY and embed into the device

  Onboard ResourcesPinout IndicatorGNDPower GroundFLTFlight modeDTRSleep mode wake upIO41Controll GPIO41 high or low level output by AT commandCTSUART flow controlIO43Controll GPIO43 high or low level output by AT commandRTSUART flow controlRIVoice call wake upTXDUART SendingSDSIM card dataRXDUART ReceivingSRSIM card resetVIOVCCIO, default 3.3V when is not connected, configurable as 3.8V-5V via VIO pin by connecting external voltageSCSIM card clockVINwide voltage input, 5V~26VVSIMSIM card power supplyGNDPower GroundGNDPower groundBAT3.7V Lithium battery power inputDPUSB signal cable Data+RTSModule reset pinDNUSB signal cable Data-PWKmodule power on/off pinVBUSUSB power supply cable3V3power supply output
  Hardware Connection Reference

  Connected to PC / Raspberry Pi / Jetson Nano boards via USB




  Connected to 5V* MCU such as Arduino via UART and VIN power supply header

  * the VIO needs to be connected to 5V when the operating level of Arduino is 5V;
  and not connected when the operating level is 3.3V




  Connected to 3.3V MCU such as ESP32 via UART and 3V3 power output header

  With VBAT 3.7V Lithium battery power input


  Product show




  Outline Dimensions

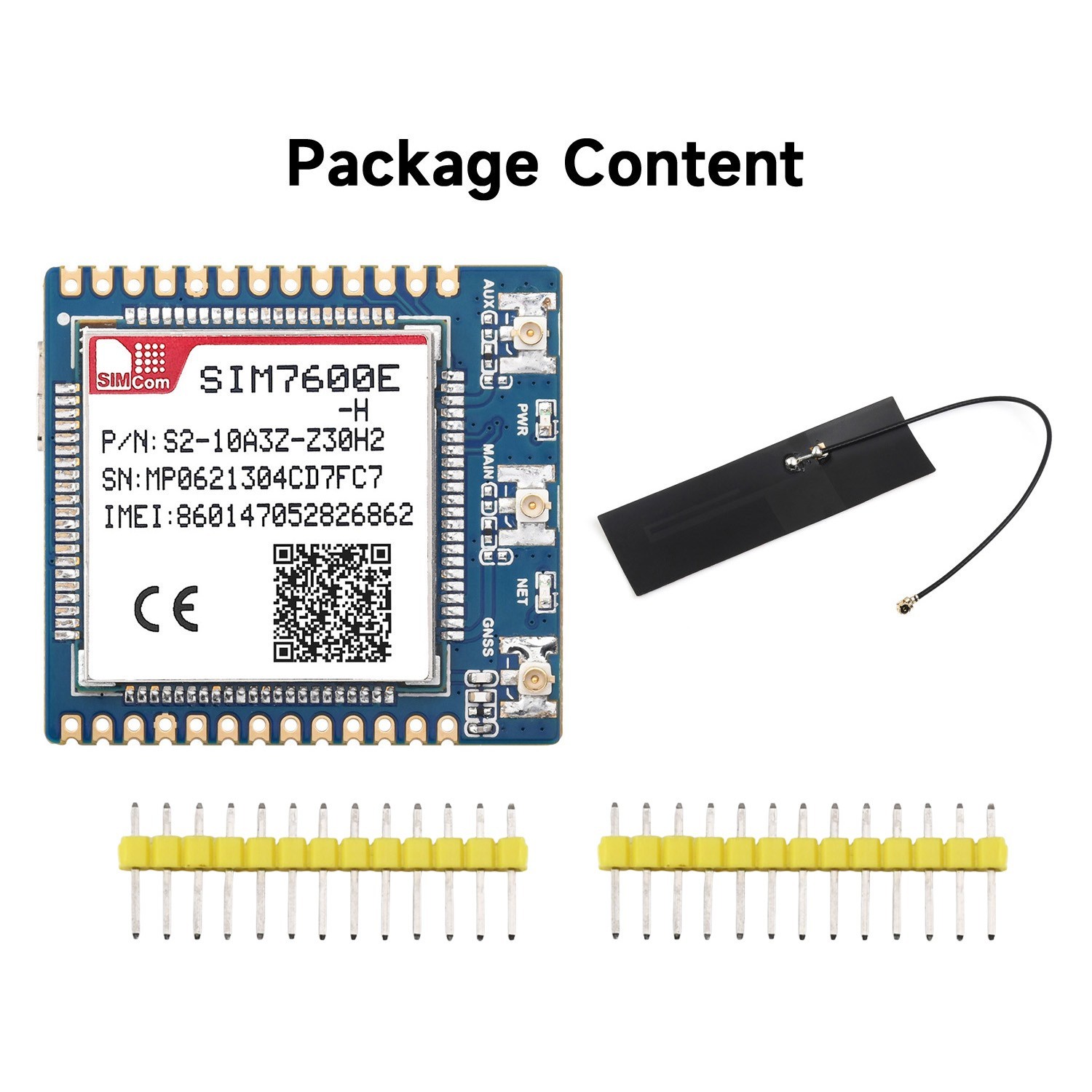

  Package Content


  Weight: 0.017 kg

  SIM7600X 4G Module
  1. OPTIONS SIM7600X 4G Module standard version x1
  2. FPC antenna x1
  3. 13PIN straight pin header x2
  123SIM7600X 4G Module (B)
  1. OPTIONS SIM7600X 4G Module pre-soldered version x1
  2. 4G antenna x1
  12
