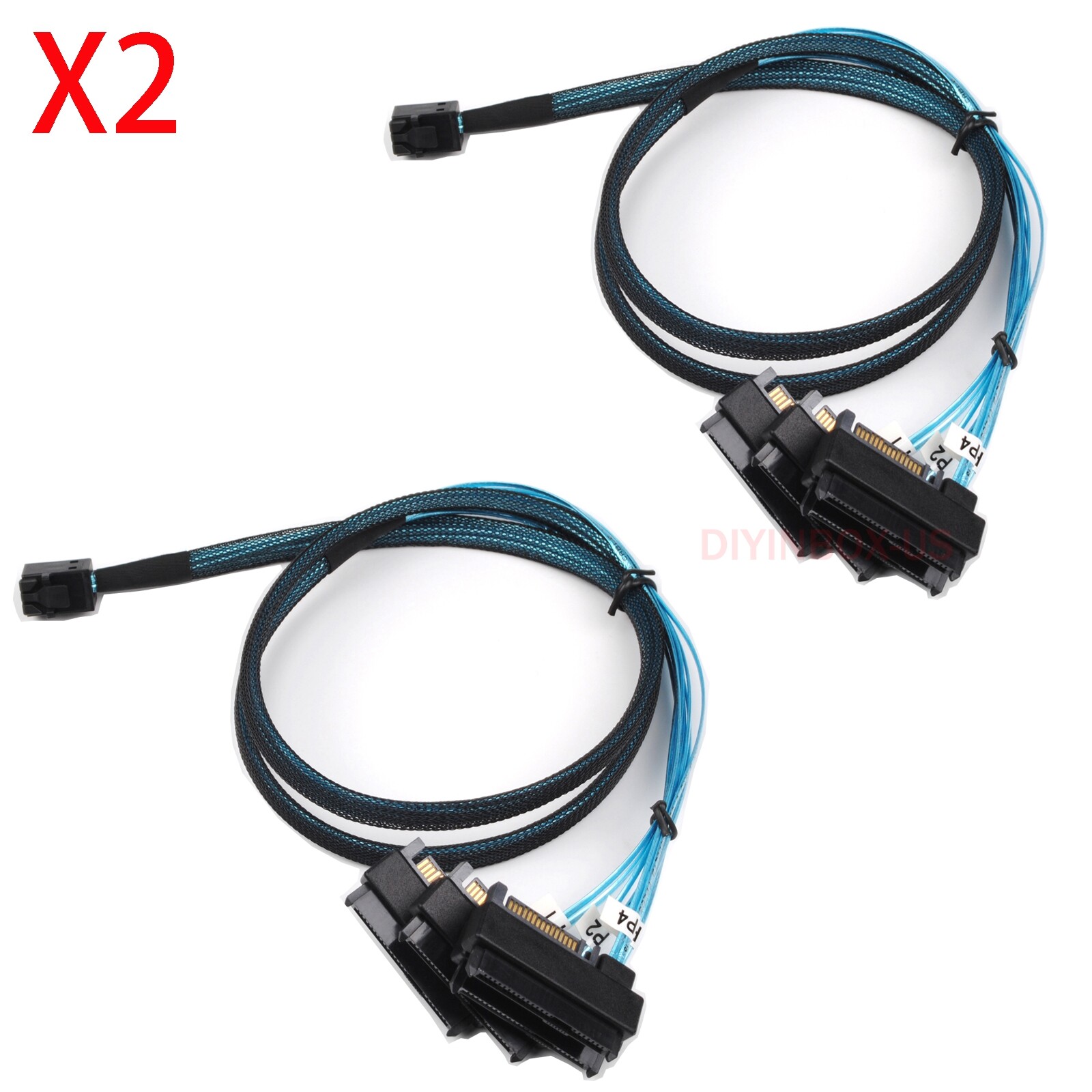

X2 Mini SAS HDD SFF-8643 to 4 SFF-8482 Connector with Power Port Hard Drive 1MX2 Mini SAS HDD SFF-8643 to 4 SFF-8482 Connector with Power Port Hard Drive 1MSpecifications:
* Side 1: Internal Mini SAS SFF-8643
* Side 2: (4) 29pin SFF-8482 connectors with SAS 15pin power port
* Cable: 30AWG
* Cable length: 1Meter
* Cable Color: Black & Blue.
Description:
Internal Mini SAS SFF-8643 to (4) 29pin SFF-8482 connectors with power connecting a SAS controller (SFF-8643) to four SATA/SAS disks (SFF-8482)
Please note that Mini SAS (SFF-8643) is host, 4 SAS 29 (SFF-8482) is target, internal Mini Serial Attached SCSI x4 (SFF-8643) to (4) x1 (SFF-8482) Serial Attached SCSI (controller based) fan-out cables
Before you buy this cable, Please make sure the Mini SAS (SFF-8643) on your motherboard or RAID controller. If the Mini SAS (SFF-8643) on your backplane, this cable will not work with them
Mini SAS (SFF-8643) connect to the controller, 4 SAS connect to the HDD (hard disc (Redundant Array of Independent server
4.Servers
5.Storage rackMechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.
Mating Force: 55 N maximum.
Unmating Force: 49 N maximum.Electrical Performance
1.Contact Current Rating
0.5Amperes maximum per pin when mated.
2.Voltage Rating
30VAC per contact when mated or unmated.
3.Contact Resistance
30mohm max. initial, 15mohm maximum after stress test.
4.Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5.Insulation Resistance
1000 Mohm minimum.Signal Integrity
1. Mated Connector Impedance: 100 ohm±15%
2. Cable Absolute Impedance: 100 ohm±10%
3. Cable Pair Matching: ±5 ohm
4. Common Mode Impedance: 25 to 40 ohms
5. Insertion loss: -6dB maximum up to 4.5Ghz;11dB maximum up to 9Ghz.
6. Crosstalk: -35 dBup to 6Ghz
