Use Specifications- # of Cores14
- # of Threads28
- Processor Base Frequency2.40 GHz
- Max Turbo Frequency3.30 GHz
- Cache35 MB Intel® Smart Cache
- Bus Speed9.6 GT/s
- # of QPI Links2
- Intel® Turbo Boost Technology 2.0 Frequency‡3.30 GHz
- TDP120 W
- VID Voltage Range0
Memory Specifications- Max Memory Size (dependent on memory type)1.5 TB
- Memory TypesDDR4 1600/1866/2133/2400
- Max # of Memory Channels4
- Max Memory Bandwidth76.8 GB/s
- Physical Address Extensions46-bit
- ECC Memory Supported‡Yes
Expansion Options- Scalability2S
- PCI Express Revision3.0
- PCI Express Configurations‡x4, x8, x16
- Max # of PCI Express Lanes40
Package Specifications- Sockets SupportedFCLGA2011-3
- Max CPU Configuration2
- TCASE86°C
- Package Size45mm x 52.5mm

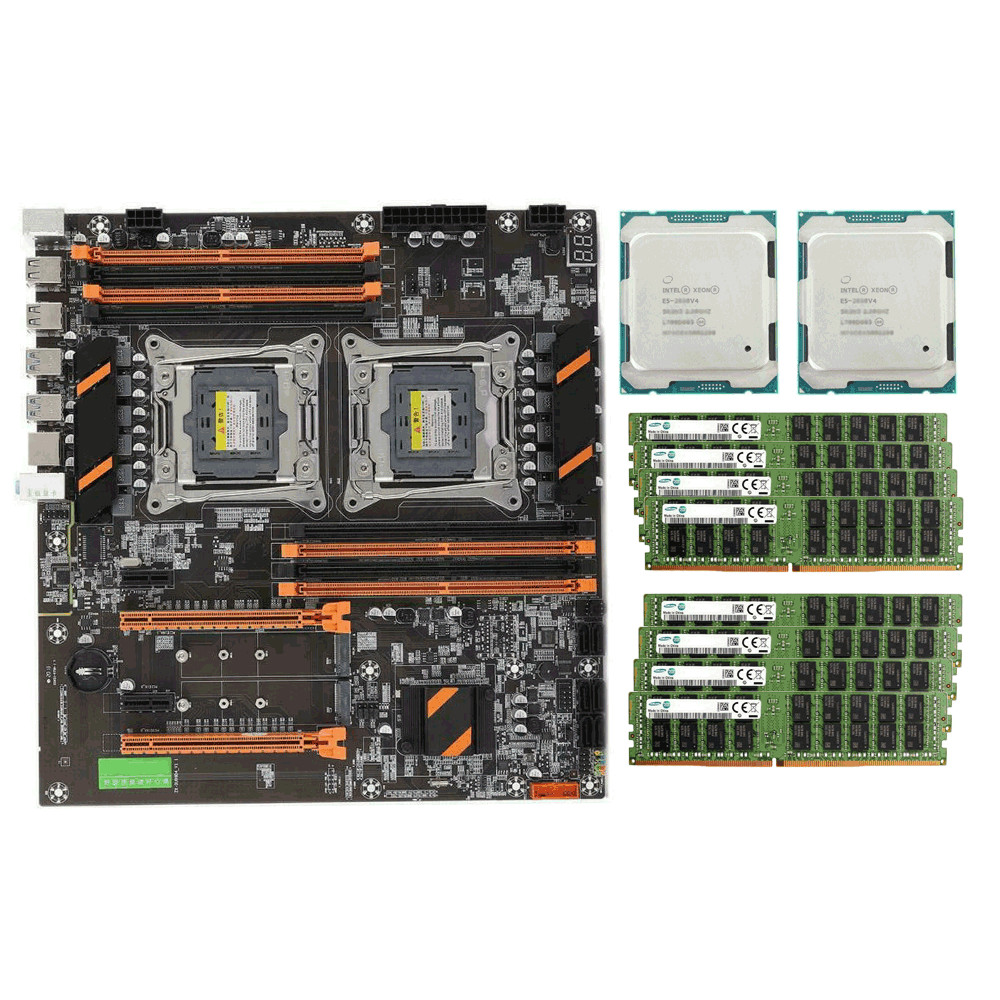

X99 Dual Server Motherboard Computerspiel Virtual Machine Simulator E5CPUItem Type: Motherboard
Model: X99
Sound Card: Chipset integrated chip sound card
Motherboard Chip: For Intel X99
Gigabit Network Card: Integrated RTL8111H Gigabit network card
Chip: Audio integrated 6-channel sound chip
CPU Socket: LGA 2011-3
Memory Size Memory Type: DDR4 3000/2666/2400 / 2133MHz
Memory Slot: 8 × DDR4 DIMM
Expansion Slot: PCI-E slot 2 × PCI-E X16
PCI-E slot 2 x PCI-E X1
2 x USB3.0 connectors (1 set)
2 x USB2.0 connection pin (1 set)
6 x SATA3.0 interface
2 x NVME M.2 interface
I / O PS / 2 keyboard or universal interface
1 × RJ45 network interface (Gigabit network card)
4 x USB 2.0 port
4 x USB 3.0 port
Battery Model: CR2023 (not included)
Motherboard Size: Approx. 281 x 295mm / 11.06 x 11.61in
