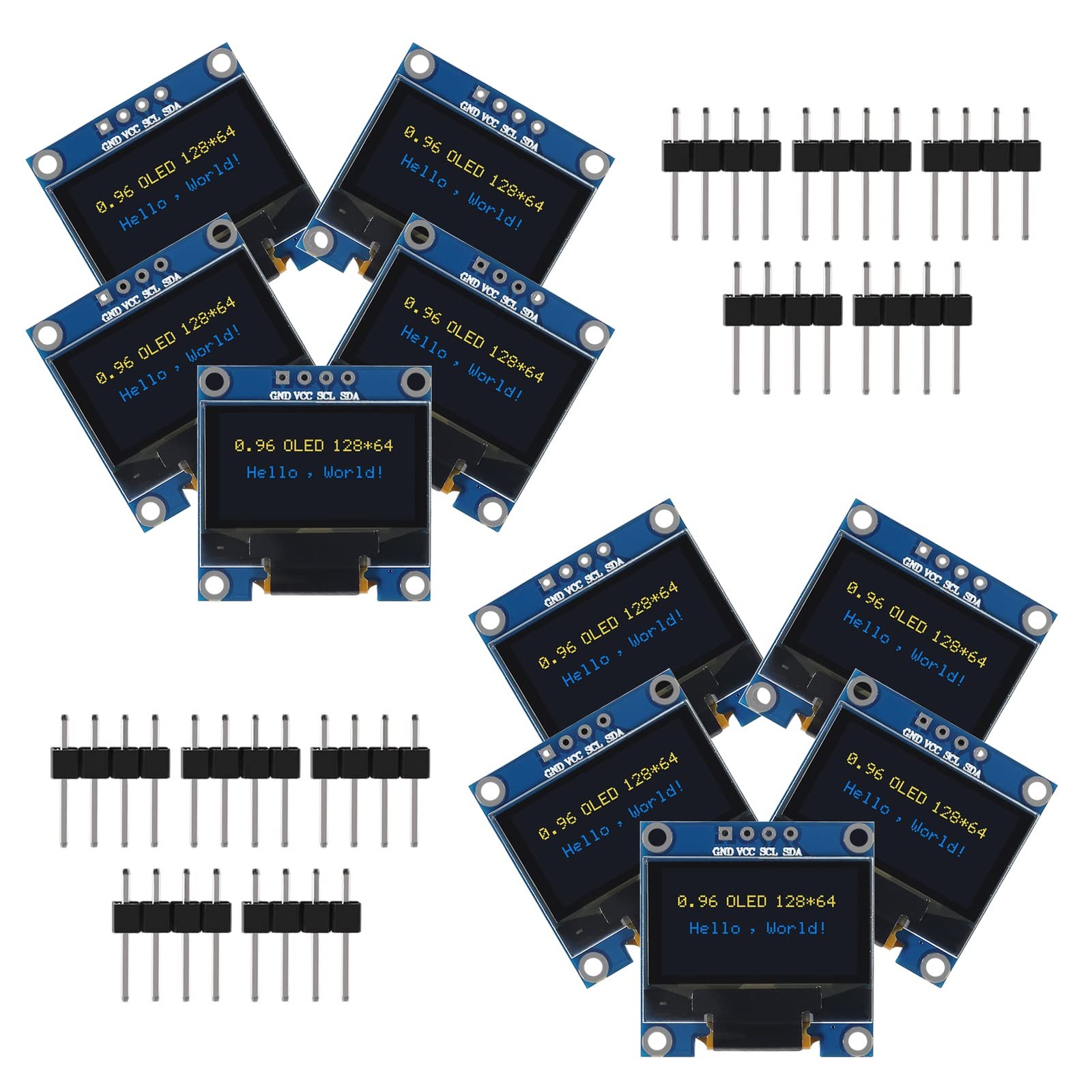

Come to our stores, where your satisfaction is guaranteed.10 PCS 0.96 inch 12864 128X64 OLED LCD Display Board Module I2C IIC SSD1306 Driver 4 Pins Compatibile with Raspberry Pi (Blue and Yellow)Product Overview
Applications:
- Meters and other intelligent instruments
- Design any pretty patterns for your beloved electronic devices!
Description:
- The display consists of 128 x 64 OLED pixels that are individually controlled by the integrated SSD1306 chip.
- The self-luminous pixels do not require back-lighting, which makes for better performance than a conventional LCD display and low power consumption.
- Ideal for use with micro-controllers such as STM32, AVR, DSP, ARM, PLC, TTL logic etc.
- Control via the I2C interface only requires 4 connection pins.
Features:
OLED self-luminous, no backlight
Size: 0.96”
Driver IC: SSD1306
Voltage: 3.3V-5V DC
Viewing angle: > 160°
High resolution: 128 x 64
Working Temperature: -30°C~70°C
Display: 2 rows of yellow, 6 rows of blue
Module Size: 27mmx 27mm x 4mm
Screen material: glass, need good protection
I2C Interface:
GND: Ground
VCC: 3.3V~5V
SCL: I2C Serial Clock
SDA: I2C Serial Data
Package: 10PCS 0.96 Inch OLED Module 12864 128x64 SSD1306 Driver I2C Serial Self-Luminous Display Board
Key Highlights
- Using only four pins, display offers an easy connection to Compatibile with Raspberry Pi etc via the I2C interface.
- Working voltage: 3.3V - 5V; Size:0.96 inch
- 0.96 inch,Resolution: 128 x 64, View angle: > 160°, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W
- It compatibles with R3 board and Mega, Raspberry pi, 51 MCU, STIM 32, etc.
- Embedded Driver IC: SSD1306. Communication: I2C/IIC Interface, only need two I / O ports
