Features:
Size: 0.96
Resolution: 128X64
Color: Blue
Supported platforms: for 51 series, MSP430 series, STIM32 / 2, SCR chips
Low power consumption: 0.04W during normal operation Support wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees
Driver IC: SSD1306
Communication: IIC, only two I / O ports
No font: The software takes word modulo
Backlight: OLED self light, no backlight Interface
VCC: 3.3-5V GND: Ground
SCL: Serial Clock
SDA: Serial Data
Applications:
MP3, MP4, watch Head-mounted displays
Meters and other intelligent instruments
Design any pretty patterns for your beloved electronic devices!
Package Included:
1 x 0.96'' oled display module
1 X plastic containers

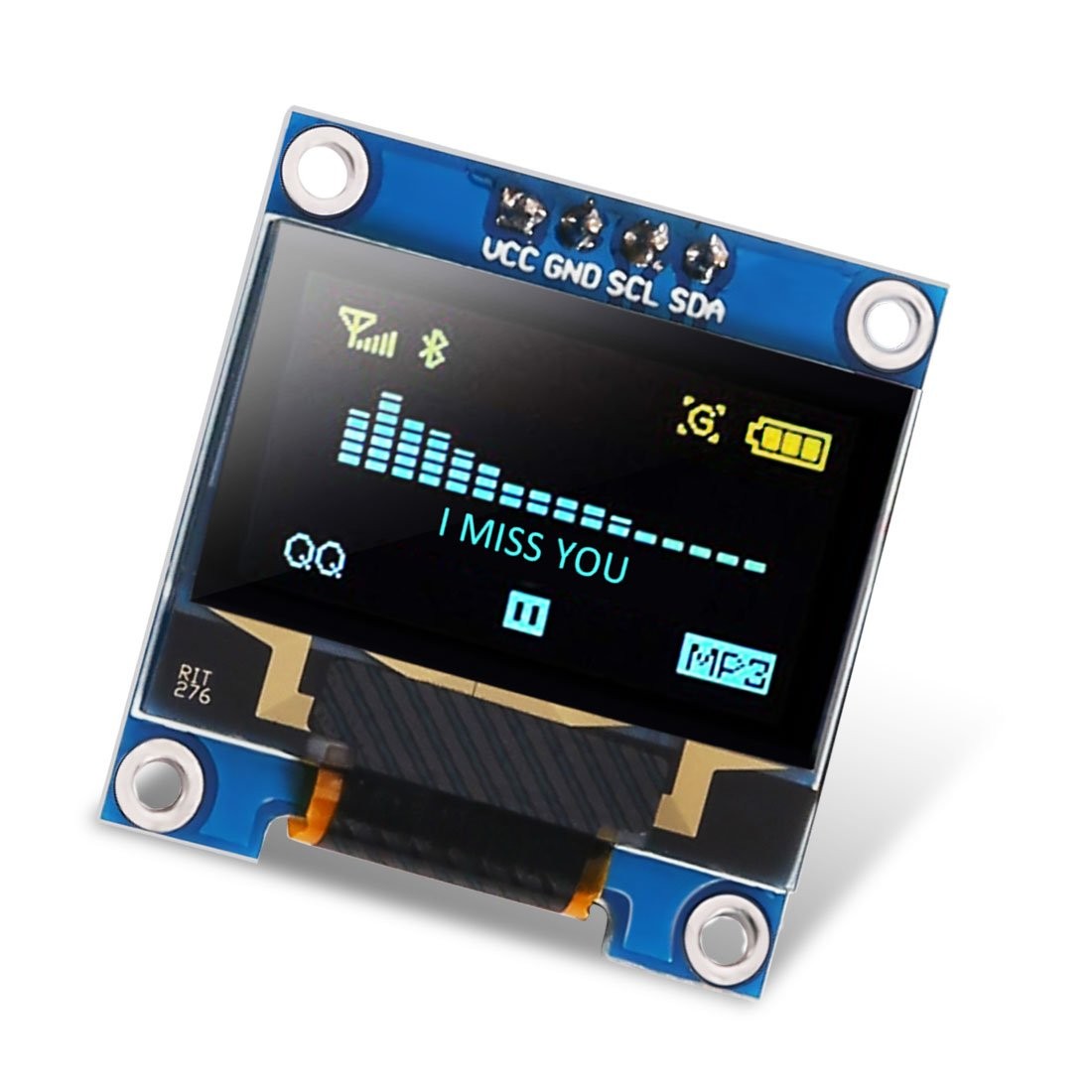

This i2c display module is 0.96 inch diagonal,Resolution: 128 x 64, View angle: > 160°, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W,Color:Yellow Blue
The IIC address can be changed,it is convenient to use with different machines Four square holes are easy to install
0.96 Inch OLED module for showing graphical & textual information directly on your micro-controller projects. It compatible with Raspberry pi, 51 MCU, STIM 32
Low-power, very legible and vibrant, a crisp screen, pixels stand out very well even in a brighter circumstances like full sunlight
Needn't backlight, the display unit can self-luminous. It has Super High Contrast, bright and crisp dots, even tiny fonts quite readable.No embedded fonts inside the OLED controller, user can create the fonts through the font generation software
