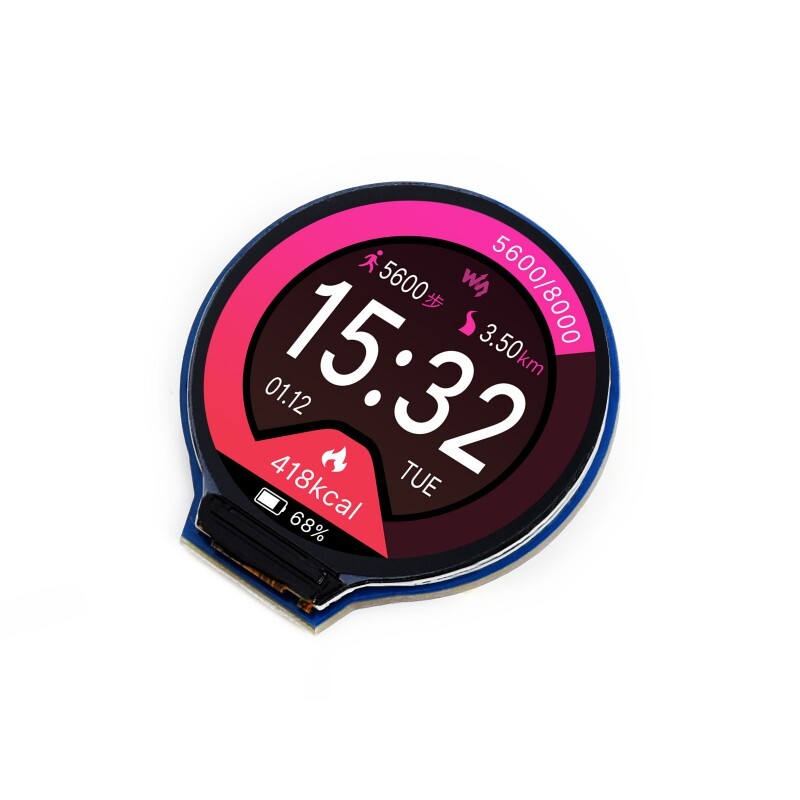

1.28inch Round LCD Display Module 65K RGB Colors 240×240 Embedded GC9A01 Driver
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
1.28inch Round LCD Display Module 65K RGB Colors 240×240 Embedded GC9A01 Driver
Price: CN $19.99
1.28inch Round LCD Display Module, 65K RGB Colors, 240×240 Resolution, SPI Interface1.28" ROUND LCD DISPLAY MODULE

Embedded GC9A01 Driver, Using SPI Bus

Comes with examples for Raspberry Pi, Arduino, STM32, etc.

  • Size1.28"
  • Display Color65K RGB
  • InterfaceSPI
  • 240×240 resolution, 65K RGB colors, clear and colorful displaying effect
  • SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32
  • Comes with development resources (examples for Raspberry VOLTAGE3.3V / 5VRESOLUTION240 × 240 pixelsCOMMUNICATION INTERFACE4-wire SPIDISPLAY SIZEΦ32.4mmDISPLAY PANELIPSPIXEL SIZE0.135 × 0.135mmDRIVERGC9A01DIMENSIONS40.4 × 37.5mm Φ37.5mmControlled Via SPI Bus

    Supports Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32

    VCCPower (3.3V / 5V input)GNDGroundDINSPI data inputCLKSPI clock inputCSChip selection, low activeDCData/Command selection (high for data, low for command)RSTReset, low activeBLBacklightHardware Connection

    Connecting With Raspberry Pi

    Connecting With Arduino Board

    Living ExampleOutline DimensionsDevelopment Resources

  • 1.28inch LCD Module x1
  • PH2.0 8PIN 20cm cable x1
    • 12
