1.54inch Touch LCD Display Module 240×240 IPS Panel SPI & I2C 262K Display Color For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

1.54inch Touch LCD Display Module 240×240 IPS Panel SPI & I2C 262K Display Color

Price: CN $21.99

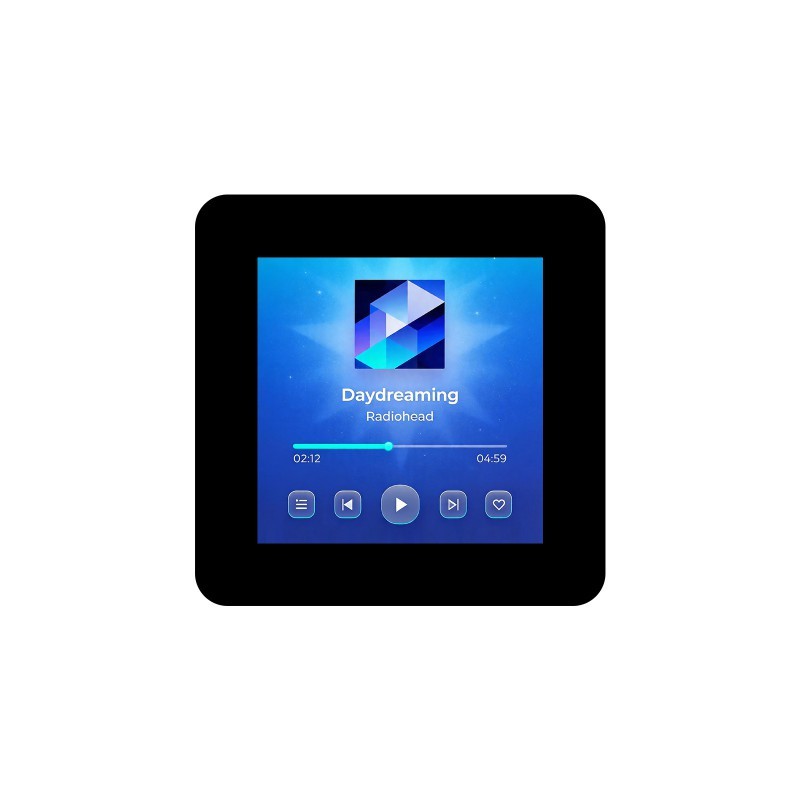

1.54inch Touch LCD Display Module, 240×240 Resolution, IPS panel, SPI and I2C communication interfaces, 262K Display Color1.54inch Touch LCD Display Module

Embedded ST7789S driver and CST816D capacitive touch control chip

Comes with examples for Raspberry Pi, ESP32-S3, Pico, Arduino, STM32, etc.

Size1.54"
Resolution240 × 240
Display Color262K
Display PanelIPS

Display DriverST7789S
Display InterfaceSPI
Touch DriverCST816D
Touch InterfaceI2C

Features at a glance

240 × 240 resolution, 262K colors, clear and colorful displaying effect
High touch screen transmittance, fast response and long lifetime
Embedded ST7789S driver chip and CST816D capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi / Raspberry Pi Pico / ESP32-S3 / Arduino / STM32
Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino / STM32)

SpecificationsOperating voltage3.3V / 5VResolution240 × 240 pixelsDisplay DriverST7789STouch DriverCST816DDisplay Interface4-wire SPITouch InterfaceI2CDISPLAY PANELIPSTouch TypeCapacitive touchDisplay size27.72 × 27.72 (mm)PIXEL SIZE0.1155 × 0.1155 (mm)Module size40.2 × 40.2 (mm)
Onboard Voltage Translator

Compatible With 3.3V / 5V Power Input

SPI and I2C Control Interfaces

Options For 12PIN Connector Or 18PIN FPC Slot For Connecting
The LCD To The Host Board

PinDescription12PIN
Pin No.18PIN
Pin No.VCCPower (3.3V / 5V input)11GNDGround23MOSISPI MOSI pin35SCLKSPI CLK pin44LCD_CSLCD chip selection, low active59LCD_DCLCD data/command selection (high for data, low for command)67LCD_RSTLCD reset pin, low active78LCD_BLLCD backlight pin82TP_SDATouch panel data pin914TP_SCLTouch panel clock pin1013TP_RSTTouch panel reset pin, low active1112TP_INTTouch panel interrupt pin1215
Usage Examples

Connecting with ESP32-S3-DEV-KIT

Connecting with ESP32-S3-LCD-Driver-Board

* for reference only, please refer to the package content for the detailed part list.

Outline dimensions
Package contains
