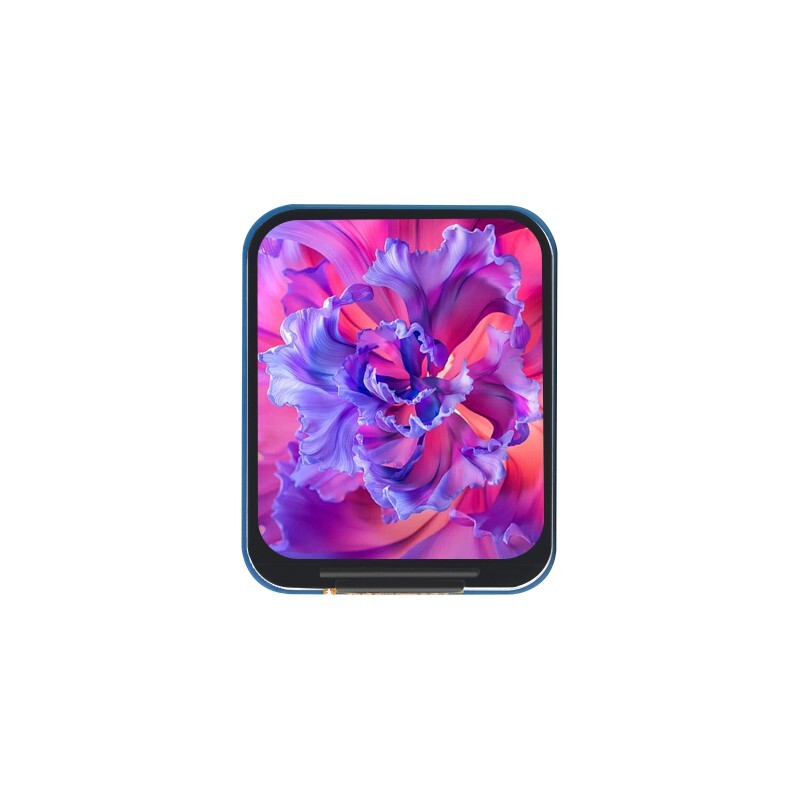

1.69inch LCD Display Module, 240×280 Resolution, SPI Interface, IPS, 262K Colors1.69inchLCD Display Module

Embedded ST7789V2 Driver Chip, Using SPI Interface

Comes with examples for Raspberry Pi, Arduino, STM32, etc.

• Size1.69"
• Display Color262K


• InterfaceSPI
• Display PanelIPS
• 240×280 resolution, 262K colors, clear and colorful displaying effect
• SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
• Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

SpecificationsOPERATING VOLTAGE3.3V / 5VRESOLUTION240 × 280 pixelsCOMMUNICATION INTERFACE4-wire SPIDISPLAY SIZE27.97 × 32.63mmDISPLAY PANELIPSPIXEL SIZE0.11655 × 0.11655mmDRIVERST7789V2MODULE SIZE31.50 × 39.00mm
Onboard Voltage Translator

Compatible With 3.3V / 5V Power Input

Onboard SPI Control Interface

For Use With Controller Boards Like Raspberry Pi / Arduino / STM32

VCCPower (3.3V / 5V input)GNDGroundDINSPI data inputCLKSPI clock inputCSChip selection, low activeDCData/Command selection (high for data, low for command)RSTReset, low activeBLBacklight
Hardware Connection

Connecting with Raspberry Pi

Connecting with Arduino board

Connecting with STM32

Usage Example
Product Show


Outline Dimensions
Development Resources

1.69inch LCD Module x1

GH1.25 20cm 8Pin cable x1
