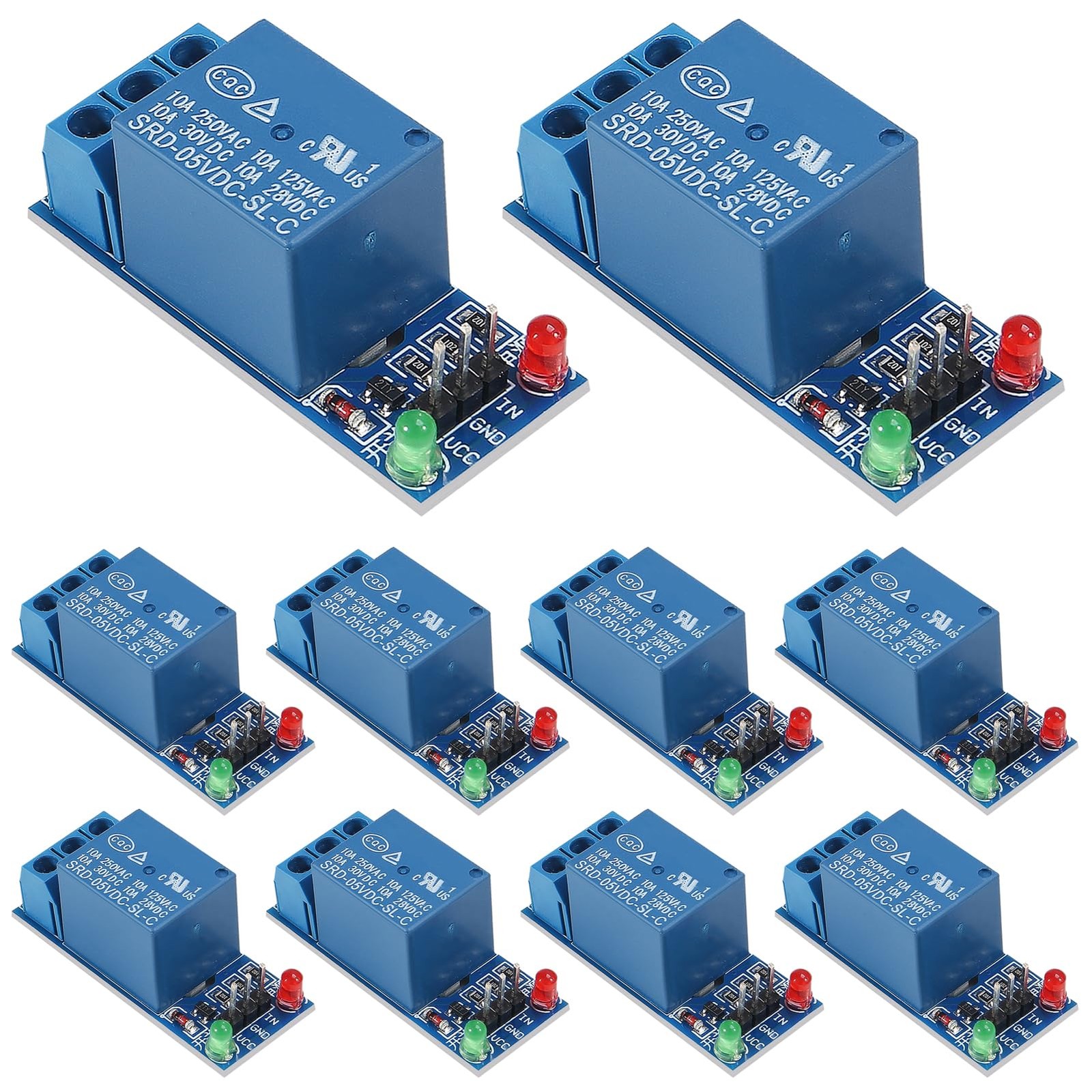

10pcs 5V One Channel Relay Module Relay Switch with OPTO Isolation High Low Level Trigger Compatible with Arduino Raspberry pi ARM AVR
Product Details

• Publisher: D-FLIFE
• Publication date: 0
• Dimensions: 0.3 x 0.3 x 0.3 cm

• 1 Channel Relay Module: Operating Voltage: 5V; Static Current: 5.;Static Current: 42mA; Trigger Voltage: 0-4V; Trigger Current: 3mA;Indicator Light: LED
• Low-Power Operation:5V Supply, Low Current: 4mA (Quiescent), 65mA (Working).Trigger: 0-2V, 2mA.
• It can be not only used as a microcontroller development board module, but also as a home appliance control.The control DC or AC signal, you can control 220V AC load.
• Meet International Safety Standards: the control area and the load area have isolation tank.
• Application: 5V Relay Module Can be Used as a MCU Development Board Module, Can be Used as Home Appliances Control; Widely Used in Industrial Automation, Electric Furnace Heating, Stage Lighting Control, Photocopiers, Medical Equipment, Petrochemical Equipment,CNC Machine Tools and Other Automation Control Areas and So On etc.

Module description:Voltage version: 5VQuiescent current: 4mAWorking current: 65mATrigger voltage: 0-1.2VTrigger current: 2mAThe module can be high or low by a jumper setting triggerFault-tolerant design, even if the control line is broken, the relay will not operate;The power indicator (green), the relay status indicator (red)The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient.Module interface:DC+: positive power supply (VCC)DC-: negative power supply (GND)IN: can be high or low level control relayRelay outputs:NO: normally open relay interfaceCOM: Common Interface RelaysNC: normally closed relay interfacePackage Include :10 x Relay module
