This 15volt POE supply Switch was designed to work reliably with the Ubiquiti Bullet and RouterStation product line. It will also work very well with most Mikrotik RouterBoards including the RB/CRD and RB4xx family RouterBoards.

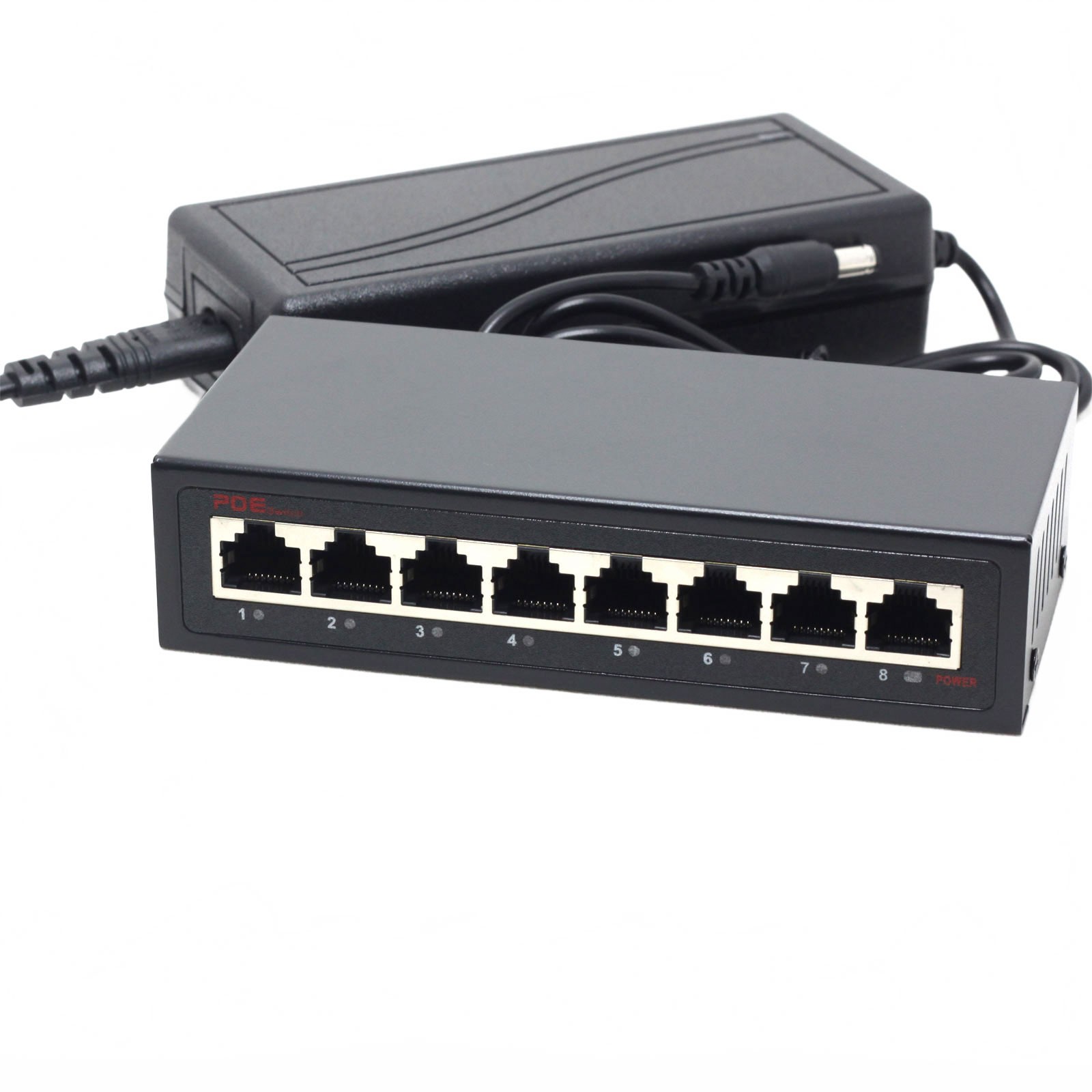

DSLRKIT MID6P2UE15V Passive PoE Injector Switch

8 Ports (2Uplink,6PoE) 10/100Mbps

Midspan Mode-B Unsolicited Power pin(4,5+/7,8-)

15V 6A 90Watt

Compatible Ubiquiti and Mikrotik 15V PassivePoEDevice

asUbiquiti 15V 0.8A PoE Power Adapter POE-15-12W

Compatible 12V~15V sPoE Device

15V Power Over Ethernet Max cable length of 50 meters

Wall Mount

This is a special PoE Switch with 15VDC out, it can not Compatible with 802.3af (48v).

【Product Port Layout & Function】

This switch has 8 ports with distinct functions. Please refer to the following guide for correct usage:

Port Numbers Function Power Output For Connecting To... 1 to 6 PoE Output Yes (PassivePoE) Compatible Passive PoE Devices only (e.g., specific IP Cameras, APs) 7 & 8 Uplink (Data Only) No Your Main Router or Network Switch

Features:

• 8 x 10/100Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 6-Ports PoE function
• Midspan Mode-B Unsolicited Power(4,5+/7,8-)
• Supports PoE power up to 80W for all PoE ports.
• Each port supports auto MDI/MDIX, so there is no need to use cross-over cables.
• Full/half duplex transfer mode for each port.

Specification:

ALL Port: Standard 10/100Mbps Ethernet port. Support 10Mbps Ethernet and 100Mbps Fast Ethernet, can operate in full-duplex or half-duplex mode,must work with4 pairs UTP Cat5/5e/6 cable。 Power LinkPort1-6: Unsolicited power on pairs (4,5+/7,8-) pins, 15V Power LED LED ON: power on. LED OUT: power off Yellow Light LINK/ACT LED ON Indicates the port is connected to a network device and has been started LED OFF Indicates that this port is not connected to a network device or has not been started Standard IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3x Full-Duplex flow control Protocol CSMA/CD Ethernet Data Transfer Rate Ethernet: 10Mbps (Half Duplex)，20Mbps (Full Duplex) Fast Ethernet: 100Mbps (Half Duplex) ，200Mbps (Full Duplex) Network Media(Cable) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100Base-TX:UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) PoE Power on RJ45 Power +: pin 4 & pin 5 ; Power -: pin 7 & pin 8 DC Output: 15V, 6POE ports Total 6A(Max. 80Watt) Number of Ports 6 x 10/100Mbps Auto-Negotiation RJ45 ports with 6PoE enabled (port-1~ port-6) AC Power Adapter AC Input: 100V ~ 240VAC, 50Hz ~ 60Hz. DC OutPut: 15V/6A Power Consumption 3.2Watts (max. no PD connected) According to the actual power consumption of equipment Temperature Operation Temperature:0 ~40℃ (32 ~104℉ ) Storage Temperature: -40 ~70℃(-40 ~158℉) Humidity Storage Humidity 5%~90% non-condensing, Operating Humidity 10%~90% non-condensing Product Dimensions 140mm W x 65mm D x 28mm H RAM Register Capacity 64K bytes per device MAC Address List 1K entries per device Frame Forward Rate 10Mbps Ethernet: 14880pps/Port 100Mbps Ethernet: 14880pps/Port

Item Included:

8pots 6PoEUnsolicited(Passive)PoE switch x1
90Watt AC Power Adapter(DC OutPut: 15V/6A) x1
AC Power Cable x1

AC power plug is US or EU type,if you need other type (AU or UK),Please leave a message.

12 Months Warranty from the date of purchase.
