Description Description:

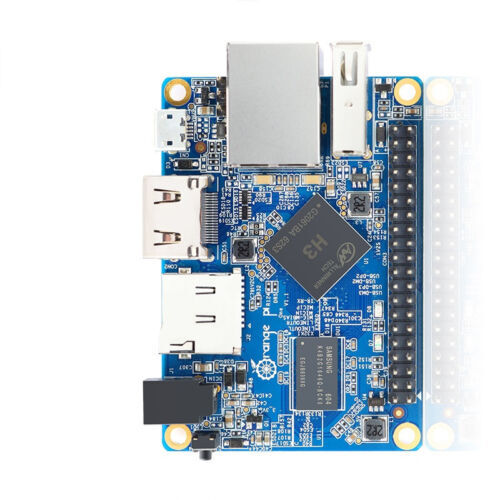

This is an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberr* Pi Image. It uses the AllWinner H3 SoC, and has 512MB DDR3 SDRAM
Who’s it for?
It is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.
What can I do with it?
You can use it to build:
A computer
A wireless server
Games
Music and sounds
HD video
A speaker
Android
Scratch
Pretty much anything else, because it is open source
Hardware specification
CPU
H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU
·Mali400MP2 GPU @600MHz ·Supports OpenGL ES 2.0
Memory (SDRAM)
512MB DDR3 (shared with GPU)
Onboard Storage
TF card (Max. 64GB) / MMC card slot
Onboard Network
10/100 Ethernet RJ45
Video Input
A CSI input connector Camera:
Supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC and PAL
Supports SM pixel camera sensor
Supports video capture solution up to 1080p@30fps
Audio Input
No
Video Outputs
Supports HDMI output with HDCP
Supports HDMI CEC
Supports HDMI 30 function
Audio Output
HDMI
Power Source
DC input, USB OTG input don't supply power
USB 2.0 Ports
One USB 2.0 HOST, one USB 2.0 OTG
Buttons
Power button
Low-level peripherals
40 Pins Header,compatible with Raspberr*Pi B+
GPIO(1x3) pin
UART,ground.
LED
Power led & Status led
Key
POWER
Supported OS
Android Lubuntu, Debian, Rasberr*Pi Image
Interface definition
Product size
69mm × 48mm
Weight
36g
Package included 1PCS H3 Quad-core
