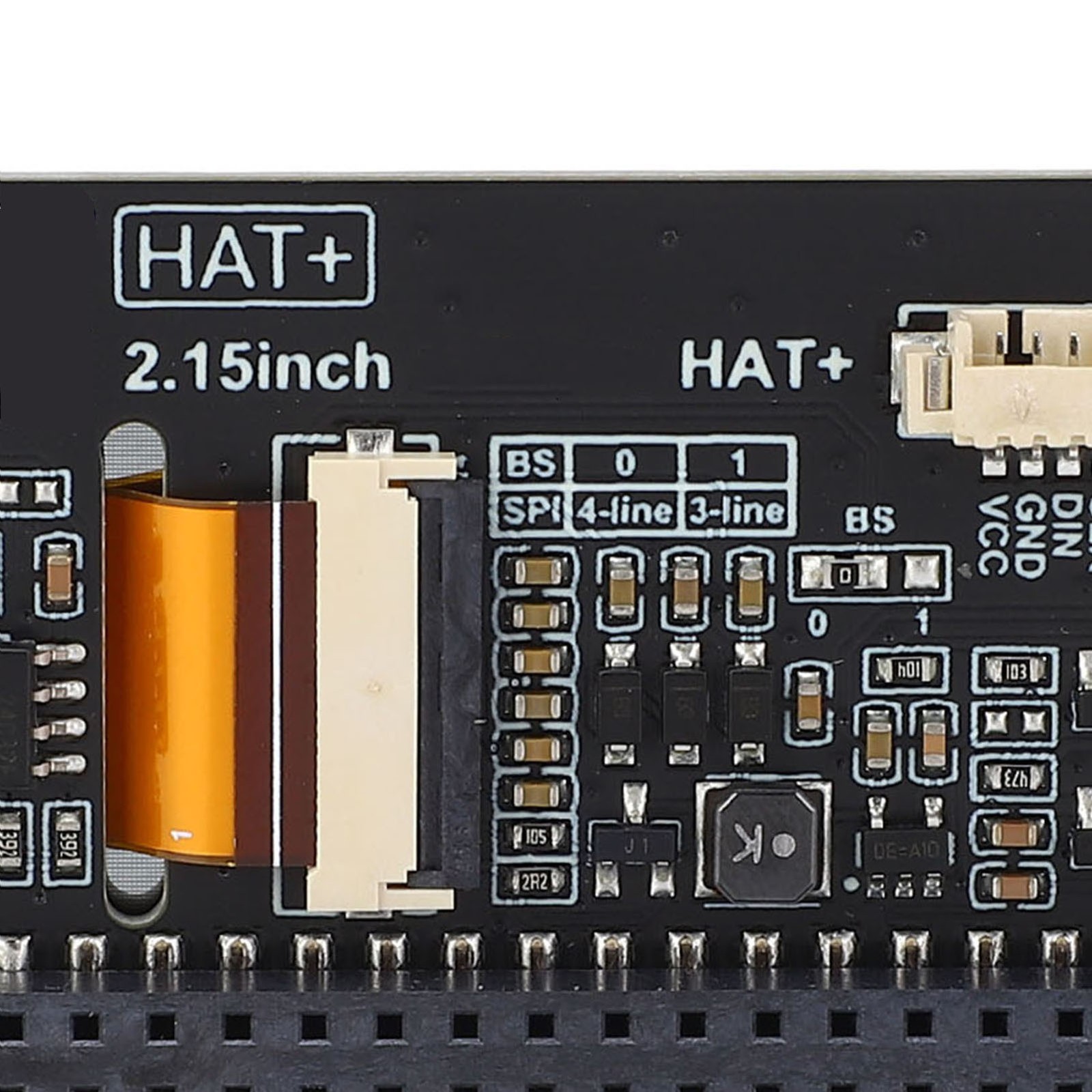

Feature:

1. Versatile Compatibility: The E paper display module is designed with a 40 pin GPIO interface, making it suitable for RasPi, for Nano, and for RDK series motherboards.
2. Energy Efficiency: Without the need for backlighting, the display can retain the last screen's content even when powered off. This ensures minimal power consumption, using energy primarily during refresh cycles.
3. Enhanced Interoperability: Utilizing for RasPi HAT+ standards, this module greatly enhances expansion board interoperability. Easier access to external devices, expanding for RasPi functionality and performance.
4. Seamless Connectivity: The E paper display panel module features a reserved SPI communicating interface, making it easy to connect for RasPi boards. Built in level conversion chip ensures compatibility with 3.3V and 5V interfaces.
5. Comprehensive Documentation: We provide schematic diagrams (for module only version), and example programs for RasPi, for Nano, for RDK. This accelerates development and implementation.

Specification:

Item Type: E Paper Display Module
Material: Electronic Ink
Driver Board Size: Approx. 65x34mm/2.56x1.34in
Display Size: Approx. 48.10x26mm/1.89x1.02in
Operating Voltage: 3.3V/5V (IO Level Voltage Must be Consistent with the Supply Voltage)
Communicating Interface: SPI
Pixels Pitch: 0.1625mm x 0.1625mm
Resolution: 296x160
Display Colors: Black, White, Red
Gray Levels: 2
Refresh Time: 23s
Refresh Power Consumption: < 15mW (typ.)
Sleep Current: < 0.01uA (Near 0)
Operating Temperature: 0 to 40 ℃
Storage Temperature: 0 to 40 ℃

Package List:

1 xE Paper Display Module
1 x Screw Pack
1 x Connection Cable
