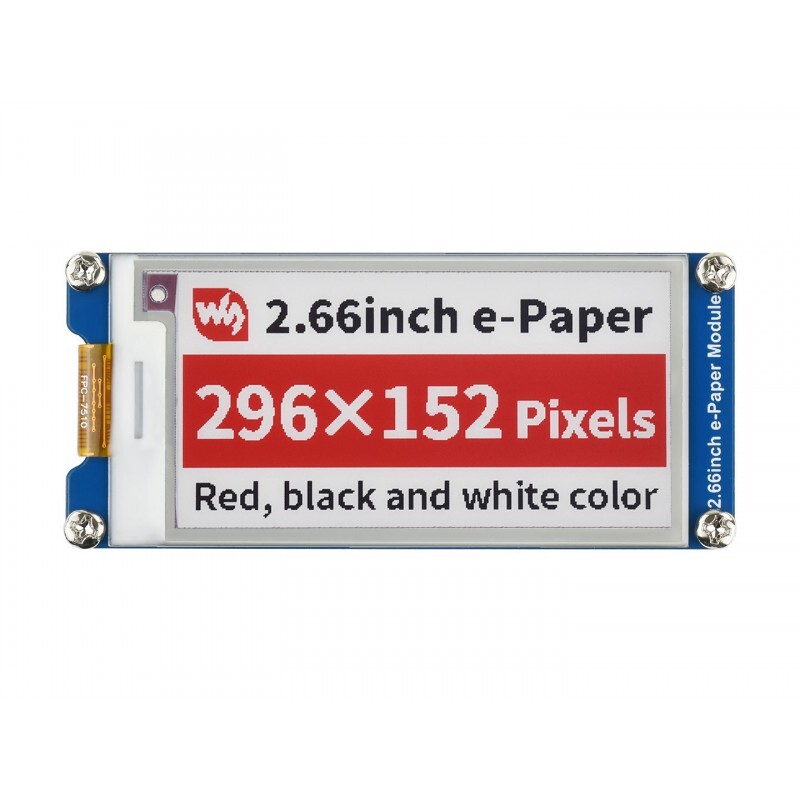

2.66inch E-Paper E-Ink Display Module (B), 296×152 Pixels, Red / Black / White Three-Color, SPI Interface2.66" E-PAPER MODULE (B)

Low Power, Wide Viewing Angle, Paper-Like Displaying Without Electricity

Ideal for price tags, shelf labels, industrial instruments...

• Size2.66"
• Resolution296×152
• Viewing Angle>170°
• Display ColorRed / Black / White
• Grey Scale2
• CommunicationSPI
• Display PanelE-paper
• ExperiencePaper-like
• EnvironmentAmbient Light Required
• Display TypePassively Reflective

Features At A Glance

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
• Onboard voltage translator, compatible with 3.3V / 5V MCUs
• Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson VOLTAGE3.3V/5VDISPLAY COLORred, black, whiteINTERFACE3-wire SPI, 4-wire SPIGREY SCALE2OUTLINE DIMENSIONS37.0 × 83.5mmFULL REFRESH TIME15sDISPLAY SIZE30.704 × 60.088mmREFRESH POWER16mW(typ.)DOT PITCH0.202 × 0.203mmSTANDBY CURRENT<0.01uA (almost none)RESOLUTION296 × 152 pixelsVIEWING ANGLE>170°
  Advantages Of EINK

  E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
  E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

  Onboard SPI Control Interface

  For Connecting With Controller Boards Like Raspberry Pi/Jetson MOSI pinCLKSPI SCK pinCSSPI chip selection, low activeDCData / Command selection (high for data, low for command)RSTExternal reset, low activeBUSYBusy status output, high activeOnboard Voltage Translator

  Compatible With 3.3V / 5V MCUs

  Application Examples

  Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

  Outline contains
  1. 2.66inch e-Paper Module (B) x1
  2. PH2.0 20cm 8Pin x1
