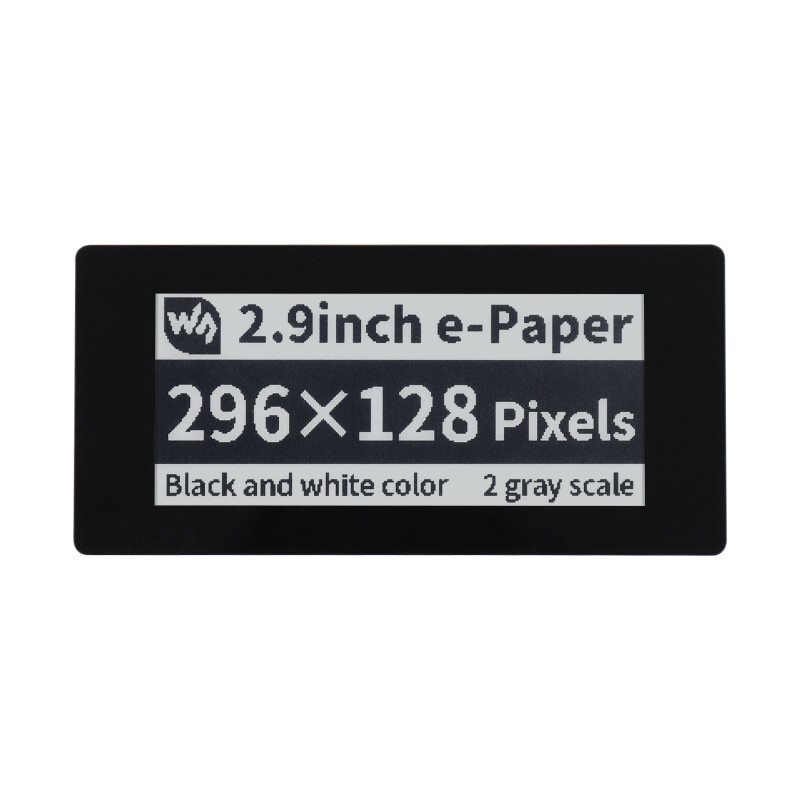

2.9inch Touch E-Paper E-Ink Display HAT For Raspberry Pi, 5-Points Capacitive Touch, 296×128 Pixels, Black / White, SPI Interface2.9" TOUCH E-PAPER HATFOR RASPBERRY PI
Capacitive Touch, Partial Refresh, Low Power, Wide Viewing Angle, Paper-Like Effect
Ideal for price tags, shelf labels, industrial instruments...
- Size2.9"
- Resolution296×128
- Viewing Angle>170°
- Display ColorBlack and White
- Grey Scale2
- Touch TypeCapacitive
- Touch Points5-Points
- Touch PortI2C
- Touch PanelToughened Glass
- CommunicationSPI
- Power ConsumptionUltra Low
- Display DurationPersists without Power
- Display PanelE-paper
- ExperiencePaper-like
- Comfortably ReadingEye Care, No Bluelight
- EnvironmentAmbient Light Required
- Display TypePassively Reflective
- RefreshingPartial Refresh Support
Features At A Glance
- 2.9inch capacitive touch ePaper module, 296×128 resolution
- 5-points touch support, user-defined wakeup gesture
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Reversed control interface, for connecting with controller boards like Arduino/STM32, etc.
- Comes with development resources and manual (examples for Raspberry Pi)
SpecificationsOPERATING VOLTAGE3.3V/5VDISPLAY COLORblack, whiteINTERFACE3-wire SPI, 4-wire SPIGREY SCALE2OUTLINE DIMENSIONS89.10 × 42.70mmPARTIAL REFRESH TIME0.3sDISPLAY SIZE66.89 × 29.05mmFULL REFRESH TIME2sDOT PITCH0.227 × 0.226mmREFRESH POWER26.4mW (typ.)RESOLUTION296×128 pixelsSTANDBY CURRENT<0.01uA (almost none)TOUCH POINTS5VIEWING ANGLE>170°Advantages Of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Standard Raspberry Pi 40PIN GPIO Header
Compatible With Raspberry Pi Series Boards
Raspberry Pi in the photo is NOT included.Reversed Control Interface
I2C Bus For Touch Panel, SPI Bus For Display
VCC3.3V/5VGNDGNDDINSPI MOSI pinCLKSPI SCK pinCSSPI chip selection, low activeDCData / Command selection (high for data, low for command)ERSTExternal reset, low activeBUSYBusy status output, high activeINTTouch controller interrupt pinSCLTouch controller I2C clock pinSDATouch controller I2C data pinTRSTTouch controller reset, low activeENTouch control power supply enable (optional), high activeTouch Control Power Supply Configuration
The Touch Control Power Supply Is Determined By The Position Of 0R Resistor
0R RESISTOR POSITIONTOUCH CONTROL POWER SUPPLYDESCRIPTIONAVCCalways powered by VCC (default)BENcontrolled by user I/OCVENcontrolled with ePaper (ERST)NCGNDno power supply for touch controlDemonstration
Outline contains
- 2.9inch e-Paper HAT x1
