Specially designed by technical team.
- Fully with 30 PIN Version ESP32 Board, ref : B0B9G74NNM. Not applicable to other versions.
- Expand 1 GPIO pin to 2, which greatly facilitates users to reuse pins for large-scale home projects.
- Nice breadboard alternative. Specifications:
PCB material: high quality FR-4 material
PCB layers: 2 layers
PCB thickness: 1.6mm
Pads: tin plated
Size: 6.3 * 6.6 * 1cm (L*W*H) Product list:

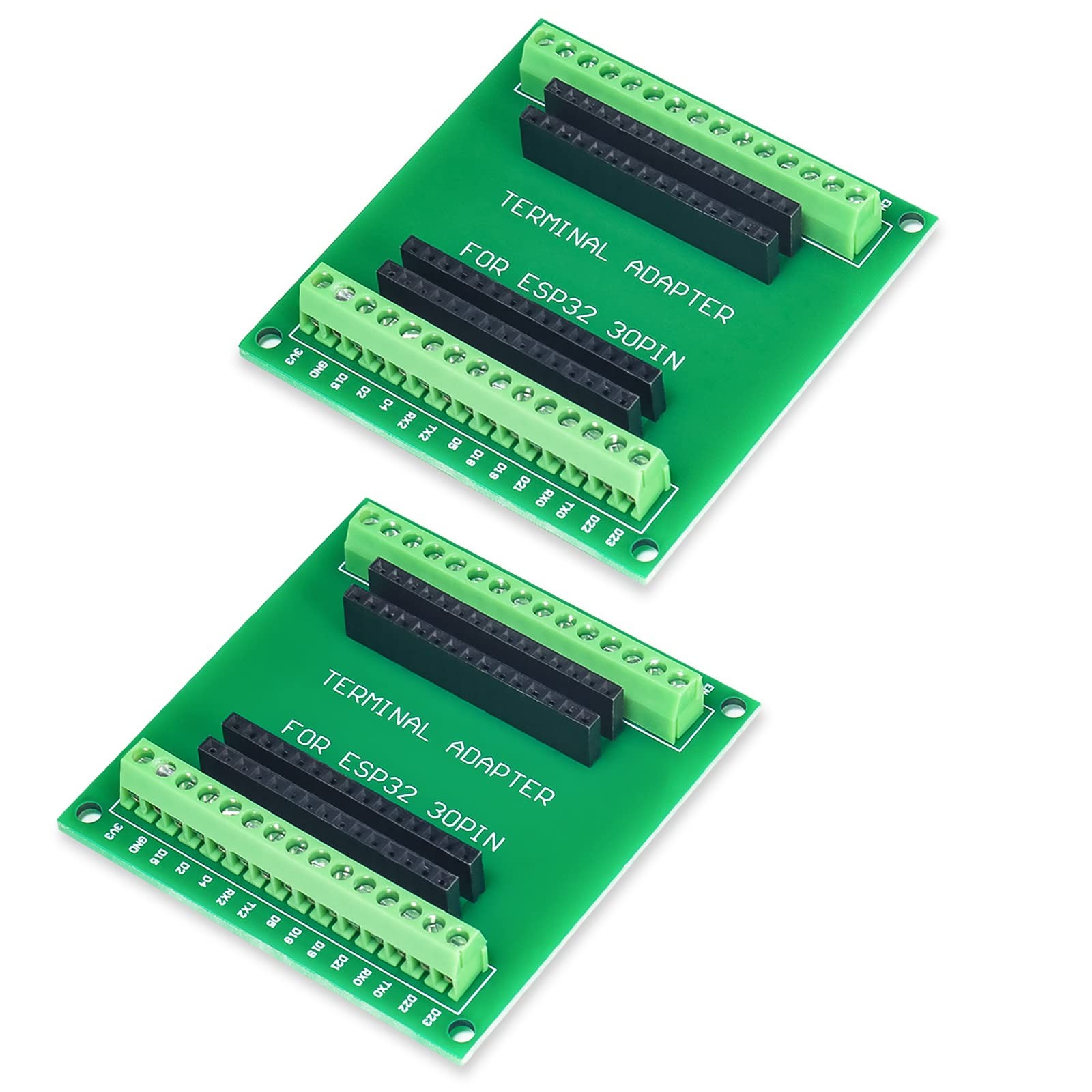

2 x ESP32 Breakout Board 30 PIN : Best choice in various Electronic Modules & Components, DIY Parts and Tools to
your work and design challenges from Home, to Industrial applications!
IMPORTANT: Only with 30 pins ESP32 development board, ref : B0B9G74NNM. Not applicable to other versions.
GPIO 1 INTO 2: This breakout board can expand GPIO pin of esp32 development board to , which is convenient for users to reuse all pins in home projects. Nice breadboard alternative.
2 CONNECTIONS: Pin Header & Screw Terminal. Just select them according to your purpose.
DOUBLE-LAYER PCB: The expansion board is a double-layer board. pin is wired on both sides. Therefore, the circuit is stable and highly reliable, and there will be no poor circuit and unstable signal transmission.
UPDATED VERSION: Compared with the previous version, the board of this version has been soldered completely. No need to solder parts by yourself, which is very convenient to use.
