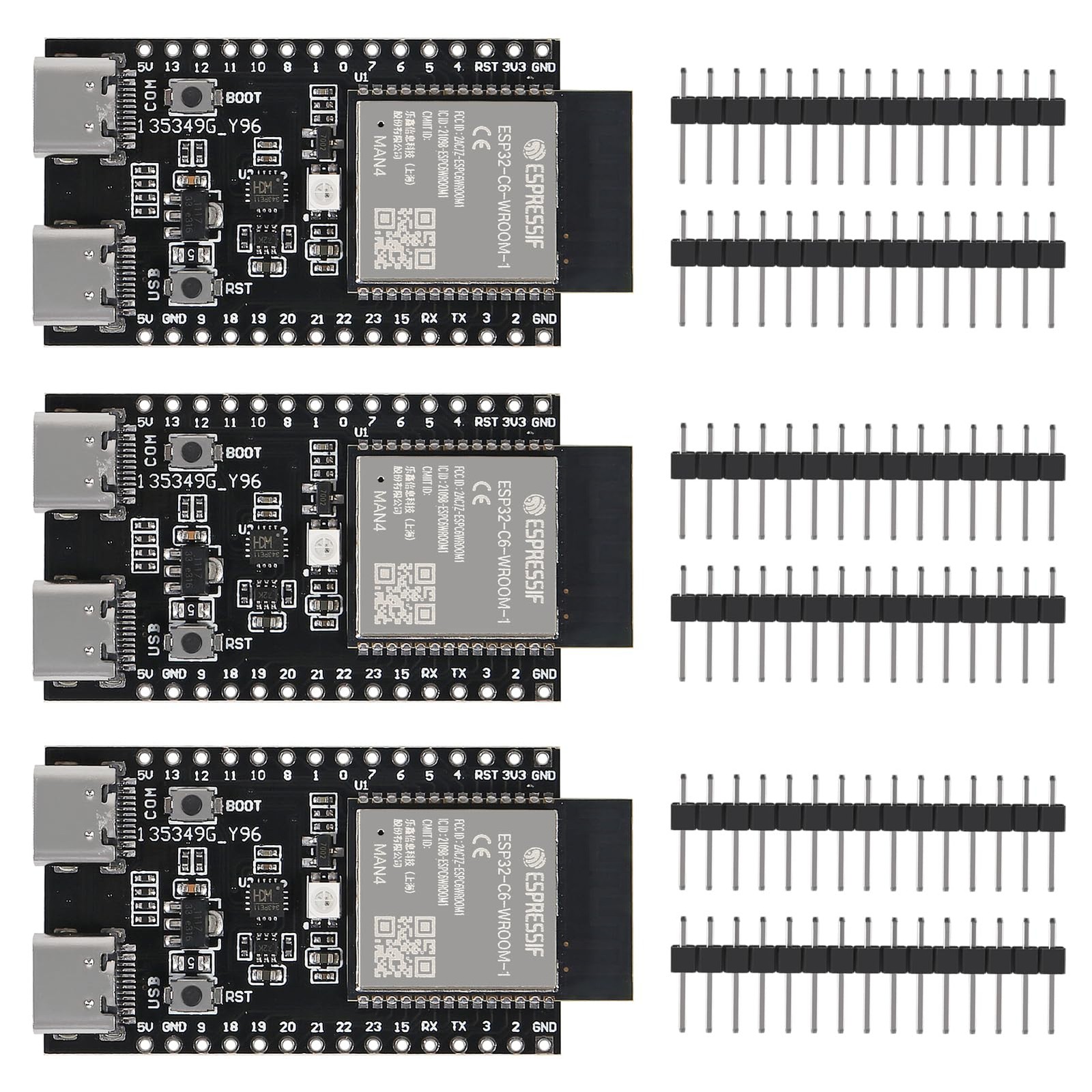

3Pcs ESP32-C6-1 ESP32-C6 ESP32-C6-1-N4 Development Board ESP32-C6-DevKitM-1 Dual Core Type-C Board MCU Module Integrates Complete Wi-Fi and BLE for Internet of ThingsItem GalleryItem Description

• ESP32-C6-DevKitC-1 development board using the universal module ESP32-C6-WROOM-1 with 4 MB SPIflash
• ESP32-C6 development board has complete Wi-F, low-power Bluetooth and other functions
• ESP32-C6-WROOM-1 uses an onboard PCB antenna, and the module has a built-in ESP32-C6 chip, which has good functionality
• The ESP32 USB Type-C interface of the ESP32-C6 chip supports USB 2.0 full-speed mode and can also be used as the power supply interface of the development board. It can burn firmware to the chip, communicate with the chip through the USB protocol, and can also be used for debugging
• ESP32-C6-DevKit most of the pins of the module on the board have been led out to pin headers on both sides. Developers can easily connect various peripheral devices through jumpers according to actual needs. The development board can also be plugged into a breadboard for use

Special Features

ESP32-C6-WROOM-1 is a universal module that supports 2.4 GHz Wi-Fi6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread 1.3).
The module has a built-in ESP32-C6 chip.
Configure 4MB SPIflash.
ESP32-C6-WROOM-1 uses an onboard PCB antenna
Pin Header: All available GPIO pins (except the SPI bus of fash) have been led to the pin header of the development board.


5V to 3.3V LDO (5 V to 3.3V LDO): Power converter, input 5 V, output 3.3 V
3.3V Power On LED: This indicator lights up after the development board is connected to the USB power supply.
USB-to-UART Bridge: A single-chip USB-to-UART bridge that provides transmission rates up to 3Mbps.


ESP32-C6 USB Type-CPort(ESP32-C6 USB Type-C interface):
The USB Type-C interface of the ESP32-C6 chip supports USB 2.0 full-speed mode with a data transfer rate of up to 12 Mbps (note that this interface does not support the high-speed transmission mode of 480 Mbps).
This interface can be used as the power supply interface of the development board, can burn firmware to the chip, can communicate with the chip through the USB protocol, and can also be used for IT-AG debugging.


Boot Button (Boot key): Download button. Press and hold the Boot key and press the Reset key to enter the "firmware download" mode and download the firmware through the serial port.
Reset Button: Reset button.
USB Type-C to UART Port (USB Type-C to UART interface): can be used as the power supply interface of the development board, can burn firmware to the chip, and can also be used as a communication interface through the onboard USB to UART bridge and ESP32-C6 Chip communication.
RGB LED: Addressable RGB light emitting diode driven by GPI08.


ESP32-C6-DevKitC-1 powered :
1. USB Type-C to UART interface or ESP32-C6 USB Type-C interface for power supply (select one or both), default power supply method (recommended)
2.5V and GND pin header power supply
3.3V3 and GND pin header power supply


Package include:
3 x ESP32-C6-DevKitC-1 development board


Notice:
1. Please make sure to use a high-quality USB data cable. Some data cables can only be used for charging and cannot be used for data transmission and programming.
2. When using the 3V3 and GND pin headers to power the development board, you need to remove the J5 jumper and connect an ammeter in series to the external circuit to measure the module current.
