1.3 Inch IIC I2C OLED Display Module 128x64 Pixel SH1106 Screen Module Compatible with R3 board and Mega, Raspberry pi, 51 MCU, STIM 32 etc

Screen Size: 1.3(inch)

Screen Type: OLED

Driver IC: SH1106

Resolution: 128*64 (Pixel)

Module Interface: I2C interface

Active Area: 29.42x14.7(mm)

Module PCB Size: 33.7x35.5(mm)

Visual Angle: >160°

Operating Temperature: -20℃~60℃

Storage Temperature: -30℃~70℃

Operating Voltage: 3.3V~5V

Display Color: white or blue

Interface:

VCC: 3.3 - 5V

GND: Ground

SCL: Serial Clock

SDA: Serial Data

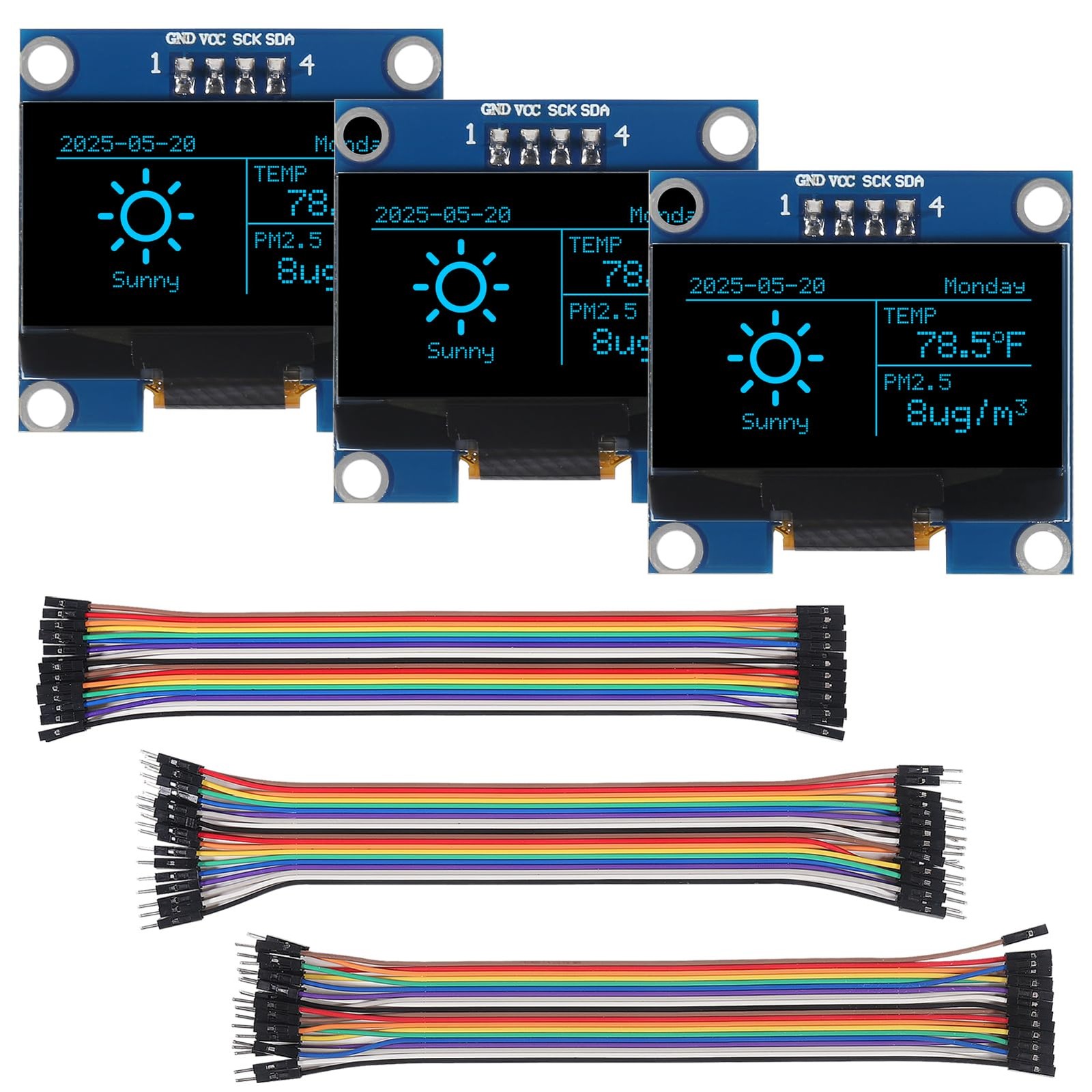

Package include:

3 x 1.3 inch oled display module(each one with plastic box)

20CM 20pin Male to Female

20CM 20pin Male to Male

20CM 20pin Female to Female Breadboard Jumper

Wide supply range: DC 3V-5V (without any changes, directly compatible with common 3.3V and 5V power supply system)
Embedded driver IC: SH1106. Using the IIC/I2C bus, only 2 IOs are needed to light up the display
1.3-inch OLED screen, self-luminous material, no backlight, ultra-low power consumption, normal display is only 0.06W. White display color
Super wide viewing angle: more than 160 ° (maximum viewing angle display a screen); 1.3" IIC OLED Display Module White Blue Color Drive Chip SH1106 128X64 1.3 Inch LCD IIC I2C Communicate
60pcs 20CM Multicolored Dupont Wire 20pin Male to Female, 20pin Male to Male, 20pin Female to Female Breadboard Jumper Ribbon Cables Kit Compatible with Arduino Projects
