Manufacturer Part Number: RFWY12-HH41NH-050

High gain outdoor antenna kit for Alcatel Link Hub HH41NH 4G LTE . This antenna kit provides everything you need to boost one antenna port including all the cables, connectors, pigtail, lightning protection, and jumpers. Order 2 kits to boost both LTE antenna ports if required.

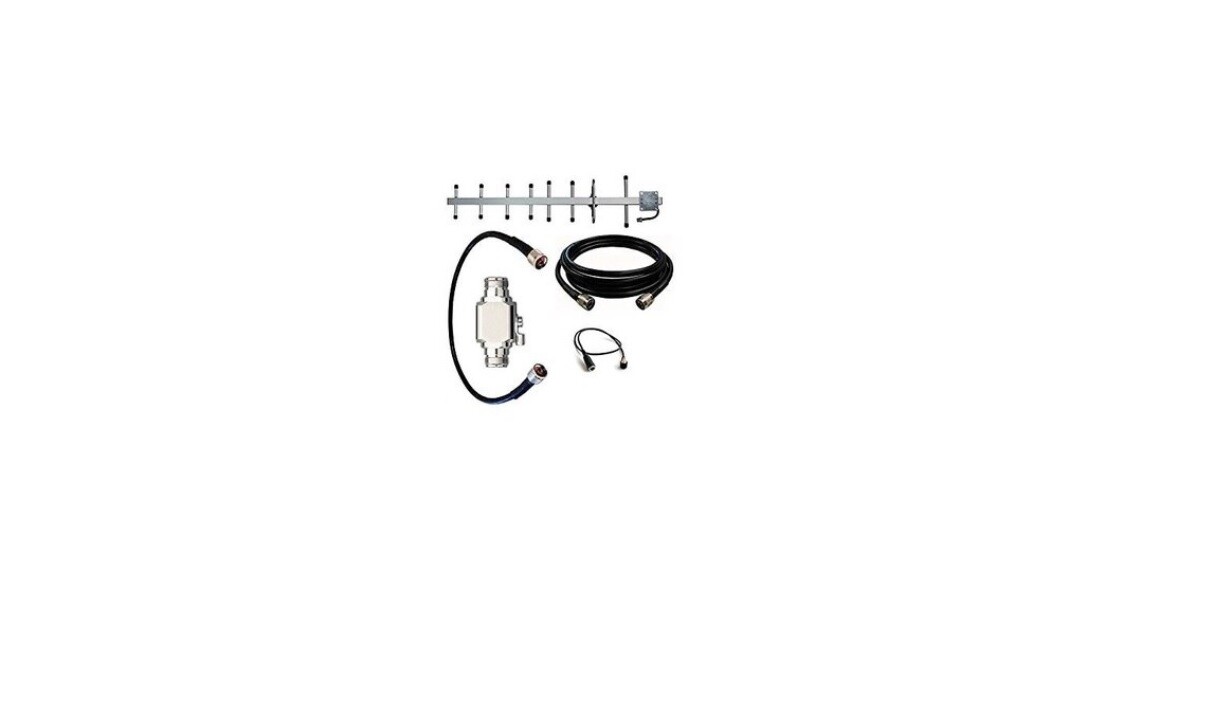

What's Included:

• 12 dBi, 698 - 2700 MHz, Directional Yagi Antenna (RFWY072712D)
• Lightning protection device (V-LP-N-P-BHJ) and jumper cable (RFWJMPNMNF002)
• 50 ft 400-series low loss coaxial cable (insertion loss <1.9 dB at 698 MHz and <4 dB at 2700 MHz) (RFWCAB400NMNM050)
• Pigtail to attach the Alcatel Link Hub HH41NH 4G LTE to the low loss coaxial cable (PIGHH41NH)
• Connectors/ adapters to allow all components to mate with minimal signal attenuation

Alternative Configurations:

• Order kit with 20 ft cable (RFWY12-HH41NH-020), or with 100 ft cable (RFWY12-HH41NH-100)
• Order kit with directional panel antenna and 20 ft cable (RFWP10-HH41NH-020), 50 ft cable (RFWP10-HH41NH-050), or 100 ft cable (RFWP10-HH41NH-100)
• Order kit with omni-directional antenna and 20 ft cable (RFW0M9-HH41NH-020), 50 ft cable (RFW0M9-HH41NH-050), or 100 ft cable (RFW0M9-HH41NH-100)
